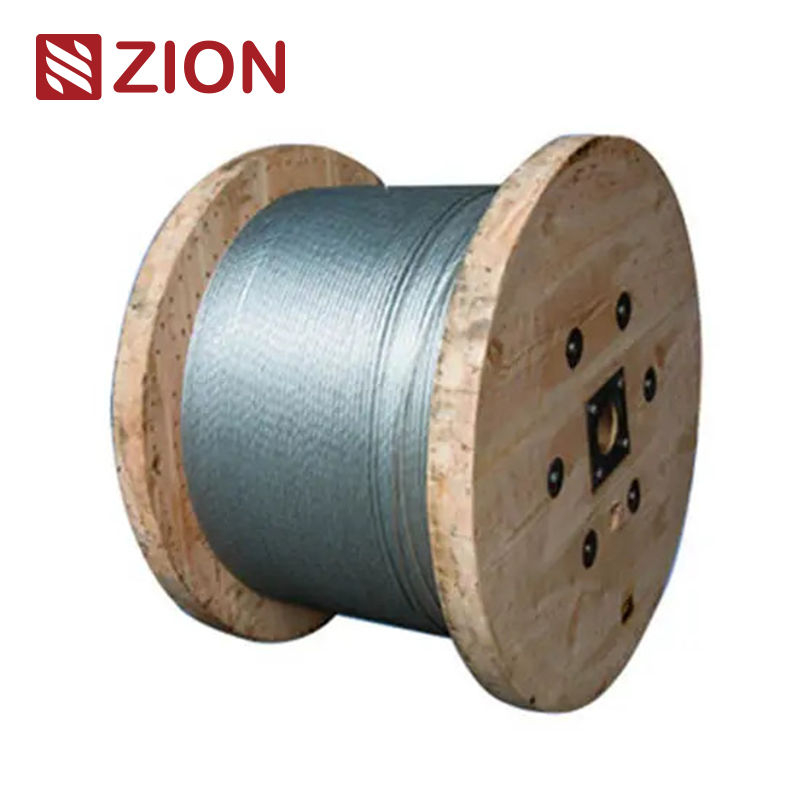

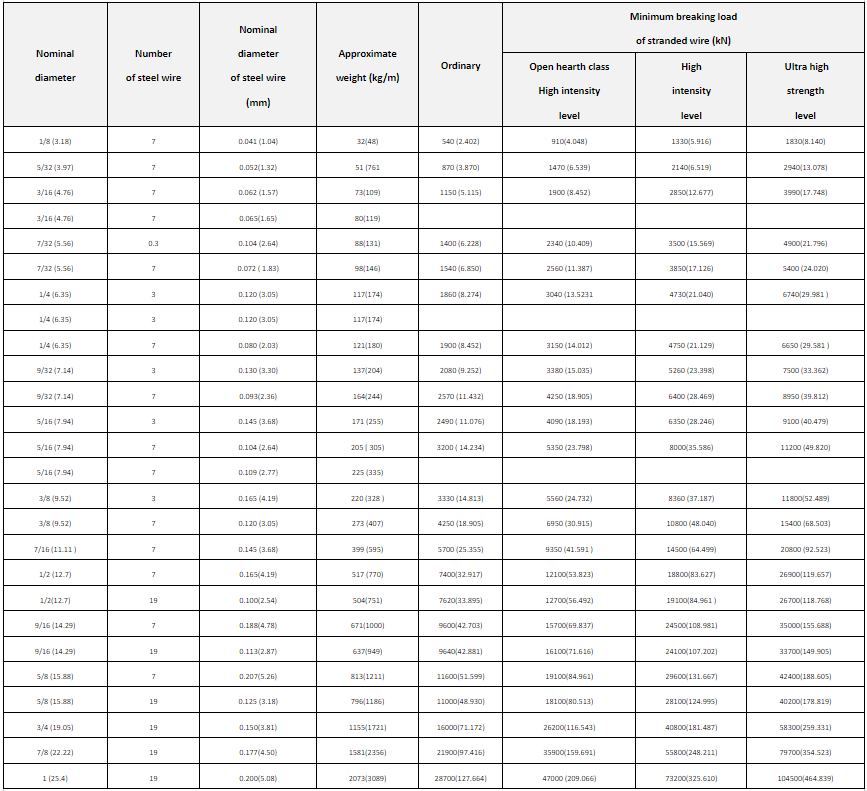

Galvanized steel strand ASTM A475

Product

Nominal
diameter

Number
of steel wire

Nominal
diameter
of steel wire
(mm)

Approximate
weight (kg/m)

Ordinary

Minimum breaking load
of stranded wire (kN)

Open hearth class
High intensity
level

High
intensity
level

 Ultra high
strength
level

1/8 (3.18)

7

0.041 (1.04)

32(48)

540 (2.402)

910(4.048)

1330(5.916)

1830(8.140)

5/32 (3.97)

7

0.052(1.32)

51 (761

870 (3.870)

1470 (6.539)

2140(6.519)

2940(13.078)

3/16 (4.76)

7

0.062 (1.57)

73(109)

1150 (5.115)

1900 (8.452)

2850(12.677)

3990(17.748)

3/16 (4.76)

7

0.065(1.65)

80(119)

7/32 (5.56)

0.3

0.104 (2.64)

88(131)

1400 (6.228)

2340 (10.409)

3500 (15.569)

4900(21.796)

7/32 (5.56}

7

0.072 ( 1.83)

98(146)

1540 (6.850)

2560 (11.387)

3850(17.126)

5400 (24.020)

1/4 (6.35)

3

0.120 (3.05)

117(174)

1860 (8.274)

3040 (13.5231

4730(21.040)

6740(29.981 )

1/4 (6.35)

3

0.120 (3.05)

117(174)

1/4 (6.35)

7

0.080 (2.03)

121(180)

1900 (8.452)

3150 (14.012)

4750 (21.129)

6650 (29.581 )

9/32 (7.14)

3

0.130 (3.30)

137(204)

2080 (9.252)

3380 (15.035)

5260 (23.398)

7500 (33.362)

9/32 (7.14)

7

0.093(2.36)

164(244)

2570 (11.432)

4250 (18.905)

6400 (28.469)

8950 (39.812)

5/16 (7.94)

3

0.145 (3.68)

171 (255)

2490 ( 11.076)

4090 (18.193)

6350 (28.246)

9100 (40.479)

5/16 (7.94)

7

0.104 (2.64)

205 [ 305)

3200 ( 14.234)

5350 (23.798)

8000(35.586)

11200 (49.820)

5/16 (7.94)

7

0.109 (2.77}

225 (335)

3/8 (9.52)

3

0.165 (4.19)

220 (328 )

3330 (14.813)

5560 (24.732)

8360 (37.187)

11800(52.489)

3/8 (9.52)

7

0.120 (3.05)

273 (407)

4250 (18.905)

6950 (30.915)

10800 (48.040)

15400 (68.503)

7/16 (11.11 )

7

0.145 (3.68)

399 (595)

5700 (25.355)

9350 (41.591 )

14500 (64.499)

20800 (92.523)

1/2 (12.7)

7

0.165(4.19)

517 (770)

7400(32.917)

12100(53.823)

18800(83.627)

26900(119.657)

1/2(12.7)

19

0.100(2.54)

504(751)

7620(33.895)

12700(56.492)

19100(84.961 )

26700(118.768)

9/16 (14.29)

7

0.188(4.78)

671(1000)

9600(42.703)

15700(69.837)

24500(108.981)

35000(155.688)

9/16 (14.29)

19

0.113(2.87)

637(949)

9640(42.881)

16100(71.616)

24100(107.202)

33700(149.905)

5/8 (15.88)

7

0.207(5.26)

813(1211)

11600(51.599)

19100(84.961)

29600(131.667)

42400(188.605)

5/8 (15.88)

19

0.125 (3.18)

796(1186)

11000(48.930)

18100(80.513)

28100(124.995)

40200(178.819)

3/4 (19.05)

19

0.150(3.81)

1155(1721)

16000(71.172)

26200(116.543)

40800(181.487)

58300(259.331)

7/8 (22.22)

19

0.177(4.50}

1581(2356)

21900(97.416)

35900(159.691)

55800(248.211)

79700(354.523)

1 (25.4)

19

0.200(5.08)

2073(3089)

28700(127.664)

47000 (209.066)

73200(325.610)

104500(464.839)
