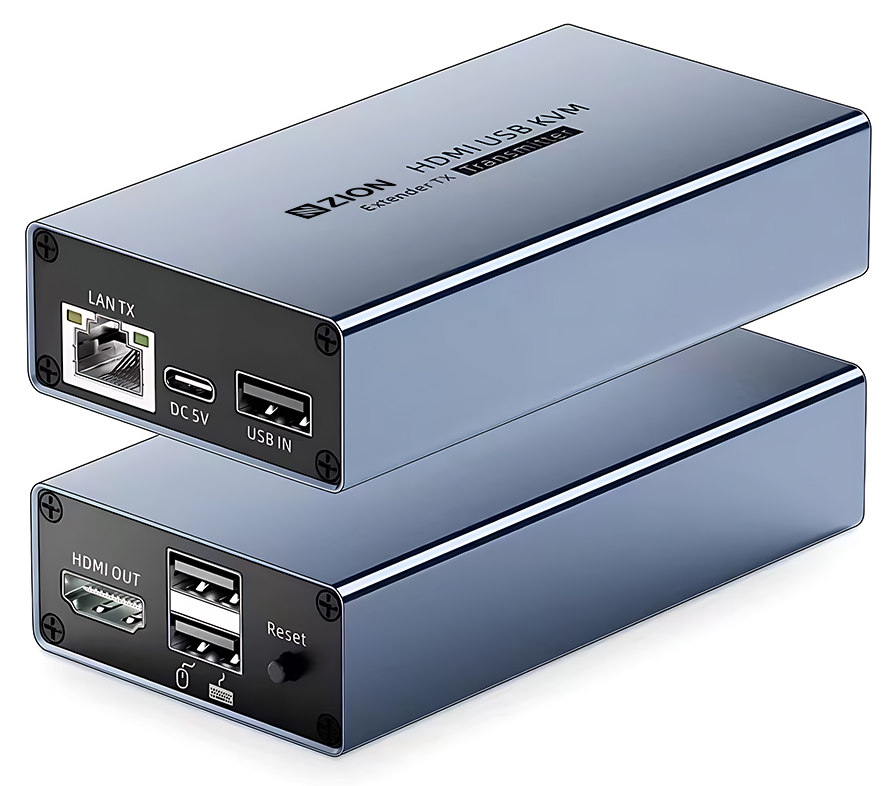

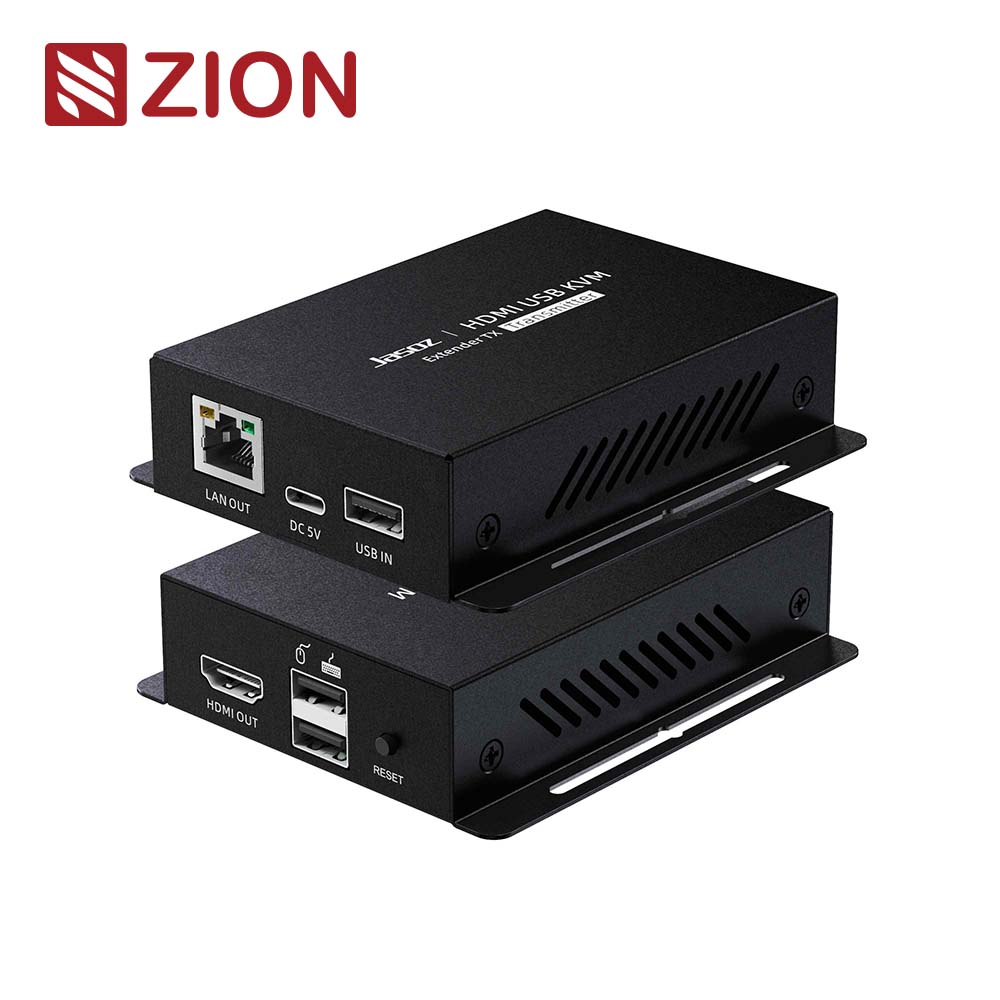

HDMI Extender via Network Cable (150m Extension) | ||
Specification | ||
Model No./SKU | ZCG157 |
|
Max. Length between Rx & Tx | Up to 150 Meters by CAT 5E/CAT6 | |
HDMI Version | HDMI 2.0 | |
HDMI Input/Output | 1080p/720p/576p/576i/480p/480i | |
Video Format | 1080p/60Hz, 3D | |
Audio Format | EDID,Dolby Atmos, DTS, and DSD | |
Input HDMI cable Distance | ≤10m AWG26 HDMI standard cable | |
Output HDMI cable Distance | ≤10m AWG26 HDMI standard cable | |
Power Adapter Format | Input:AC (50HZ, 60HZ) 100V-240V | |
Operating Temperature range | -15℃ to +55℃ | |
Dimension (L x W x H) | 103×55.4*25mm | |
Transmitter TX | Desktop/Laptop/Set-top box | |
Receiver RX | Display/TV/Projector | |

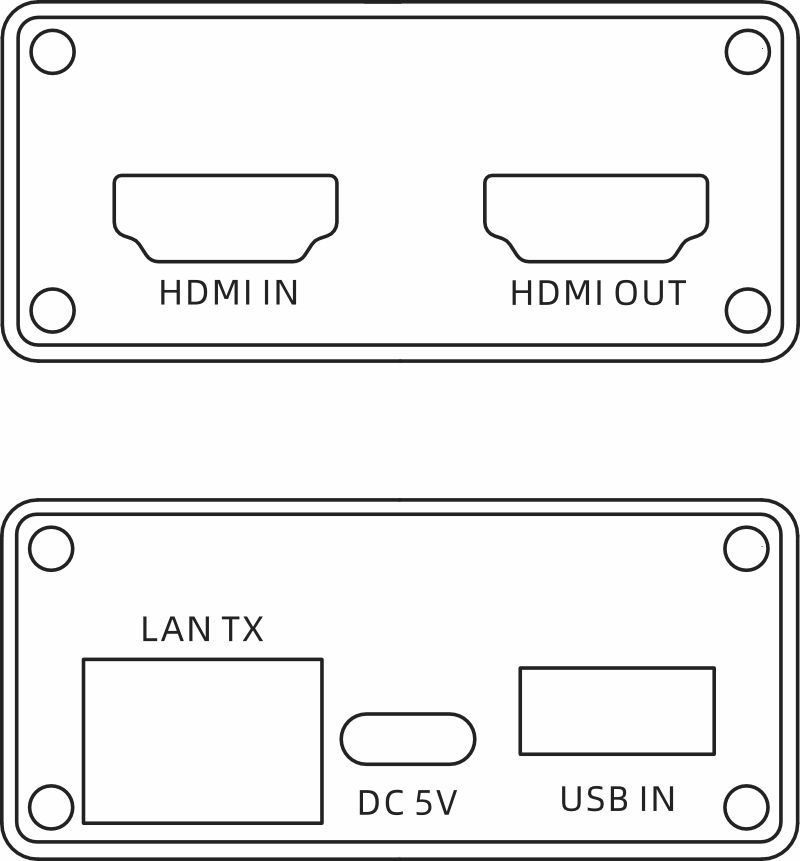

Physical Interface Diagram | ||
Feature | Crafted with a single-piece aluminum alloy shell, featuring a | |
Tansmitter TX | Port | Description |
| DC/5V | 5V power supply for the Transmitter |
LAN TX | CAT5E/6 cable input port | |
USB In | USB input port | |
HDMI IN | HDMI input port | |
HDMI OUT | HDMI output port | |
Receiver RX | Port | Description |
| DC/5V | 5V power supply for the Transmitter |
LAN TX | CAT5E/6 cable input port | |
HDMI out | HDMI output port | |
USB × 2 | 2 USB output ports | |
The Package Includes | ||
1 | Transmitter | 1PC |
2 | Receiver | 1PC |
3 | Type C Cable/5V/1A Power Adapter | 2PCS |
4 | User Manual | 1PC |
