UL1430 UL3317 UL1557 HOOK UP WIRE
hellosignal
7148400
Availability: | |
---|---|
Product Description
UL1430 UL3317 UL1557 HOOK UP WIRE | ||||||||
| ||||||||
▉ Application | ||||||||
Internal wiring of electronic equipment, computers, business machines and appliances | ||||||||
▉ Cable Construction | ||||||||
Stranded Tinned Copper, Color Coded | ||||||||
Irradiated PVC , .017” Nominal Wall | ||||||||
▉ Technical data | ||||||||
Temperature range | -55°C to +105°C | |||||||
Voltage Rating | 1000 Volts | |||||||

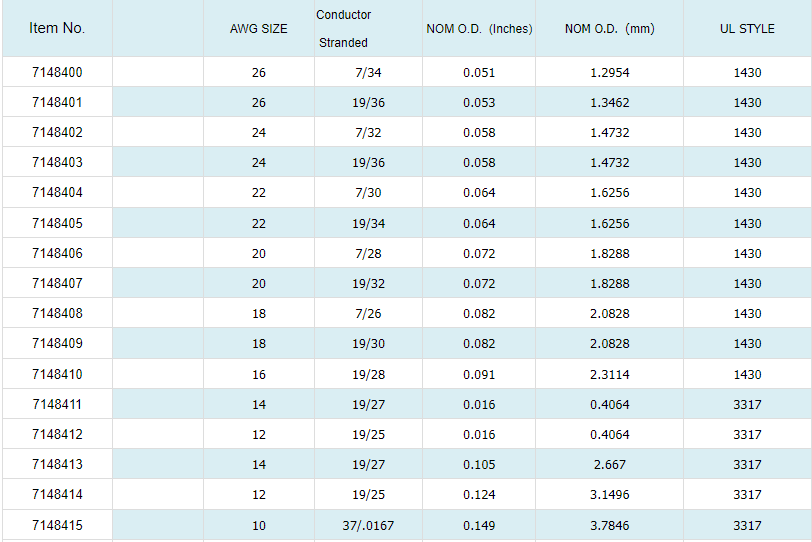

▉ Product List | ||||||||
Item No. | AWG SIZE | Conductor Stranded | NOM O.D. (Inches) | NOM O.D. (mm) | UL STYLE | |||
7148400 | 26 | 7/34 | 0.051 | 1.2954 | 1430 | |||
7148401 | 26 | 19/36 | 0.053 | 1.3462 | 1430 | |||
7148402 | 24 | 7/32 | 0.058 | 1.4732 | 1430 | |||
7148403 | 24 | 19/36 | 0.058 | 1.4732 | 1430 | |||
7148404 | 22 | 7/30 | 0.064 | 1.6256 | 1430 | |||
7148405 | 22 | 19/34 | 0.064 | 1.6256 | 1430 | |||
7148406 | 20 | 7/28 | 0.072 | 1.8288 | 1430 | |||
7148407 | 20 | 19/32 | 0.072 | 1.8288 | 1430 | |||
7148408 | 18 | 7/26 | 0.082 | 2.0828 | 1430 | |||
7148409 | 18 | 19/30 | 0.082 | 2.0828 | 1430 | |||
7148410 | 16 | 19/28 | 0.091 | 2.3114 | 1430 | |||
7148411 | 14 | 19/27 | 0.016 | 0.4064 | 3317 | |||
7148412 | 12 | 19/25 | 0.016 | 0.4064 | 3317 | |||
7148413 | 14 | 19/27 | 0.105 | 2.667 | 3317 | |||
7148414 | 12 | 19/25 | 0.124 | 3.1496 | 3317 | |||
7148415 | 10 | 37/.0167 | 0.149 | 3.7846 | 3317 | |||
▉ Order Informations | ||||||||
Marking | HELLOSIGNAL UL1430 UL3317 UL1557 HOOK UP WIRE XXXFT/M | |||||||
Package | 100M/Reel, 300M/Wooden Spool | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM |
