1.Different kinds:
| structure | Normal laminated thickness | Width | Length | Color | ID | OD | Packing |
| AL+PET | 7umAlu+15umPet+3umGlue | 6mm-1000mm as your required | 500m-7000m | Silver blue bronze black others | 2"or3" | 250mm-600mm | polybag caron pallet |
| 9umAlu+12umPet+3umGlue |
| AL+PET+EAA | 7umAL+15umPET+25umEAA+6um glue |
| AL+PET+AL | 6umAlu+15umPet+6umAlu+6umGlue |
| AL+PET+AL+EAA | 7umAlu+15umPET+7umAlu+25umEAA+9umglue |
| PET+AL+PET | 15umPet+7umAlu+15umPet |
| PET+PET | 15umPet+15umPet +3umGlue |
| Polyester Tape | 15um,18um |
2.Specifications:
The following is the single side aluminium mylar tape specifications for you take reference:

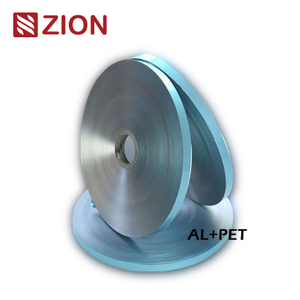

| Description: Al+PET Tape(AL/myler Tape) |
| Composition:aluminium foil and polyester film |
| Name: 0.02mm colored household aluminum foil roll price |
| Structure | Thickness(um) | Proportion(g/m2) | Elongation(%) | Strength(N/15mm) |
| 6um AL/12um PET | 20 | 36 | 30 | 2.7 |
| 7um AL/15um PET | 25 | 43 | 35 | 2.7 |
| 7um AL/20um PET | 30 | 50 | 35 | 3 |
| 9um AL/12um PET | 25 | 45 | 30 | 2.7 |
| 9um AL/15um PET | 30 | 49 | 35 | 3 |
| 9um AL/20um PET | 35 | 55 | 35 | 3 |
| 9um AL/25um PET | 38 | 62 | 35 | 4 |
| 12um AL/12um PET | 25 | 53 | 20 | 2 |
| 12um AL/15um PET | 30 | 57 | 20 | 3 |
| 12um AL/20um PET | 35 | 63 | 30 | 4 |
| 15um AL/15um PET | 30 | 65 | 20 | 3 |
| 25um AL/15um PET | 45 | 92 | 20 | 3 |
| 30um AL/25um PET | 60 | 119 | 20 | 3 |
| 30um AL/30um PET | 65 | 126 | 20 | 5 |
| 40um AL/30um PET | 75 | 153 | 20 | 5 |
| 40um AL/38um PET | 80 | 163 | 20 | 5 |
| 50um AL/25um PET | 90 | 173 | 20 | 5 |
| 50um AL/50um PET | 100 | 207 | 35 | 6 |
| Above values refer to our current production and must be intended as average values |
| The reference is not including all specification. |
3.Application
4.Catalog
| Product Name | aluminum foil 8011 |
| Product | Alloy | Thickness | Width | ID mm | Remark |
| Cable wrap foil | 1235/8011-O | 0.2-2.0mm | 60-1700mm | 76 152 200 300 400 500 | Accept customization |
| Bottle cap foil | 8011-H14/H16 |
| Household foil | 1235/8011-O | 0.005-0.2mm | 100-1700mm |
| Container foil | 3003-H24/ 8011-H24 |
| Flexible packingfoil | 1100/1235/8011-O |
| Lable foil | 8011-O |
