IDC Server Cabinet -01

  • Server Cabinet
  • hellosignal
  • ZCIDC-01
  • Copper System
  • Normally 25 working days
  • NINGBO, SHANGHAI

Product Description

ZCIDC-01 Server Cabinet

 Technical Data

   Materials:


IDC01 server cabinet

· SPCC high quality cold rolled steel

· Surface process: degreasing; phosphating; spray paint

· Thickness: Mounting profile 2.0mm;
  Others 1.2-1.5mm

  Colour:


· RAL9004 (black);others could be required

  Standard

  ·Compliant with ANSI/EIA; RS-210-D; IEC297-2;
   DIN41491;PART1; DIN41494;PAR7;
   GB/T2047.2-92; ETSI

 Features

 · It is composed of two different size of cabinet (width: 600+300mm, so the total width is 900mm), which makes the

   structure stronger and can load about 1000 KG.

 · Mesh material in all directions: two piece of front single-door together with rear three side-doors ensure the

   cabinet has a good heat dissipation area.

 · The installation and disassembly of side doors is fast and convenient, which makes maintenance much easier and

   more effcient.

 · Movable caster and fixed feet can be used simultaneously, which makes the moving of cabinets easier.

 · Replaceable hinges have been installed on the door and protected of top cable holes by a rubber cover, which are

   flexible and safe.

 · Height: 42U, 47U

 · Depth: 800mm, 900mm, 1000mm ,1100mm and 1200mm.

 · The depth(25mm/unit) and inner height(1U/unit) are adjustable.

 · Flexible packaging ensures cabinet’s storage and delivery.



Mian Install the Fitting

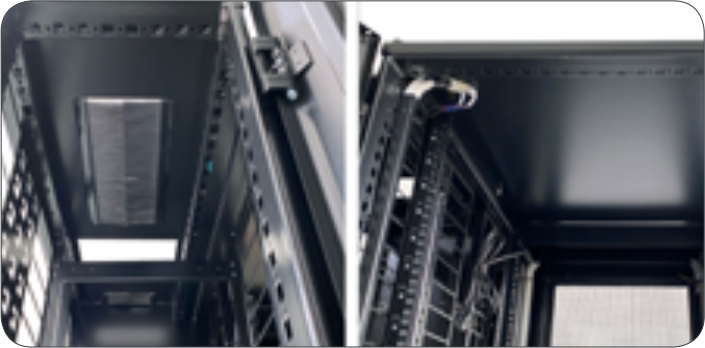

IDC01 server cabinet-Top cover

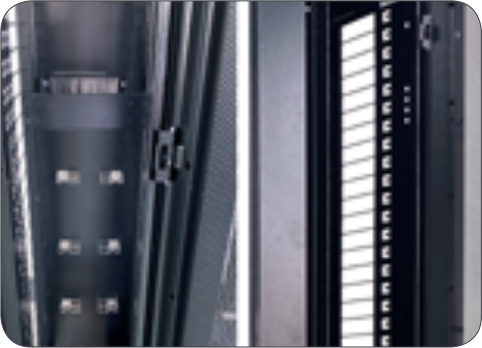

IDC01 server cabinet-Cable management

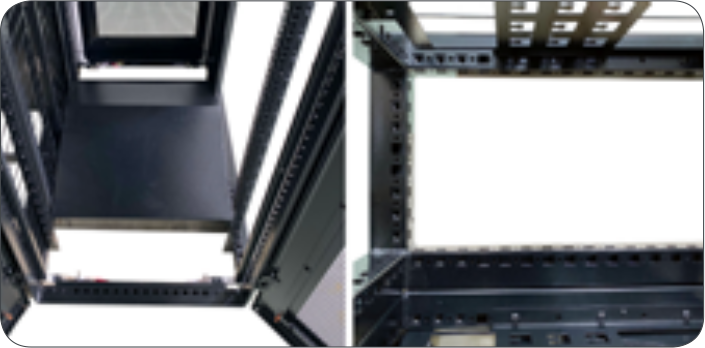

IDC01 server cabinet-Bottom wind aisle

 Top cover            Cable management

Bottom wind aisle



Main Part

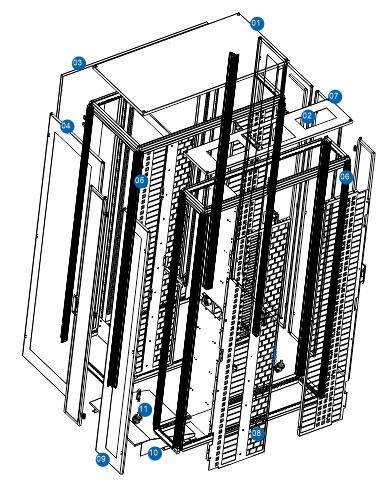

IDC01 server cabinet1

NO.

ITEM

QTY

SPCCT (mm)

1

Frame

1PCS

1.5

2

Side of top cover

1PCS

1.5

3

Side door

1PCS

1.5

4

Front single-door

1PCS

1.2

5

Main cabinet body

1PCS

1.5

6

Side cabinet body

1PCS

1.5

7

Rear double-door

3PCS

1.2

8

Cable managerment slot

1PCS

1.5

9

Side front door

1PCS

1.2

10

Wind aisle

1PCS

1.5

11

Caster

4SET

/

Ordering Information



IDC01 server cabinet2

Model

 Width
(mm)

Depth(D) (mm)

Height

(mm)

U

ZCIDC.6842-1 SHSC

600

800

1975

42U

ZCIDC.6942-1 SHSC

900

ZCIDC.6042-1 SHSC

1000

ZCIDC.6142-1 SHSC

1100

ZCIDC.6242-1 SHSC

1200

ZCIDC.8842-1 SHSC

800

800

1975

42U

ZCIDC.8942-1 SHSC

900

ZCIDC.8042-1 SHSC

1000

ZCIDC.8142-1 SHSC

1100

ZCIDC.8242-1 SHSC

1200

ZCIDC.9842-1 SHSC

600+300

800

1975

42U

ZCIDC.9942-1 SHSC

900

ZCIDC.9042-1 SHSC

1000

ZCIDC.9142-1 SHSC

1100

ZCIDC.9242-1 SHSC

1200

ZCIDC.6847-1 SHSC

600

800

2175

47U

ZCIDC.6947-1 SHSC

900

ZCIDC.6047-1 SHSC

1000

ZCIDC.6147-1 SHSC

1100

ZCIDC.6247-1 SHSC

1200

ZCIDC.8847-1 SHSC

800

800

2175

47U

ZCIDC.8947-1 SHSC

900

ZCIDC.8047-1 SHSC

1000

ZCIDC.8147-1 SHSC

1100

ZCIDC.8247-1 SHSC

1200

ZCIDC.9847-1 SHSC

600+300

800

2175

47U

ZCIDC.9947-1 SHSC

900

ZCIDC.9047-1 SHSC

1000

ZCIDC.9147-1 SHSC

1100

ZCIDC.9247-1 SHSC
