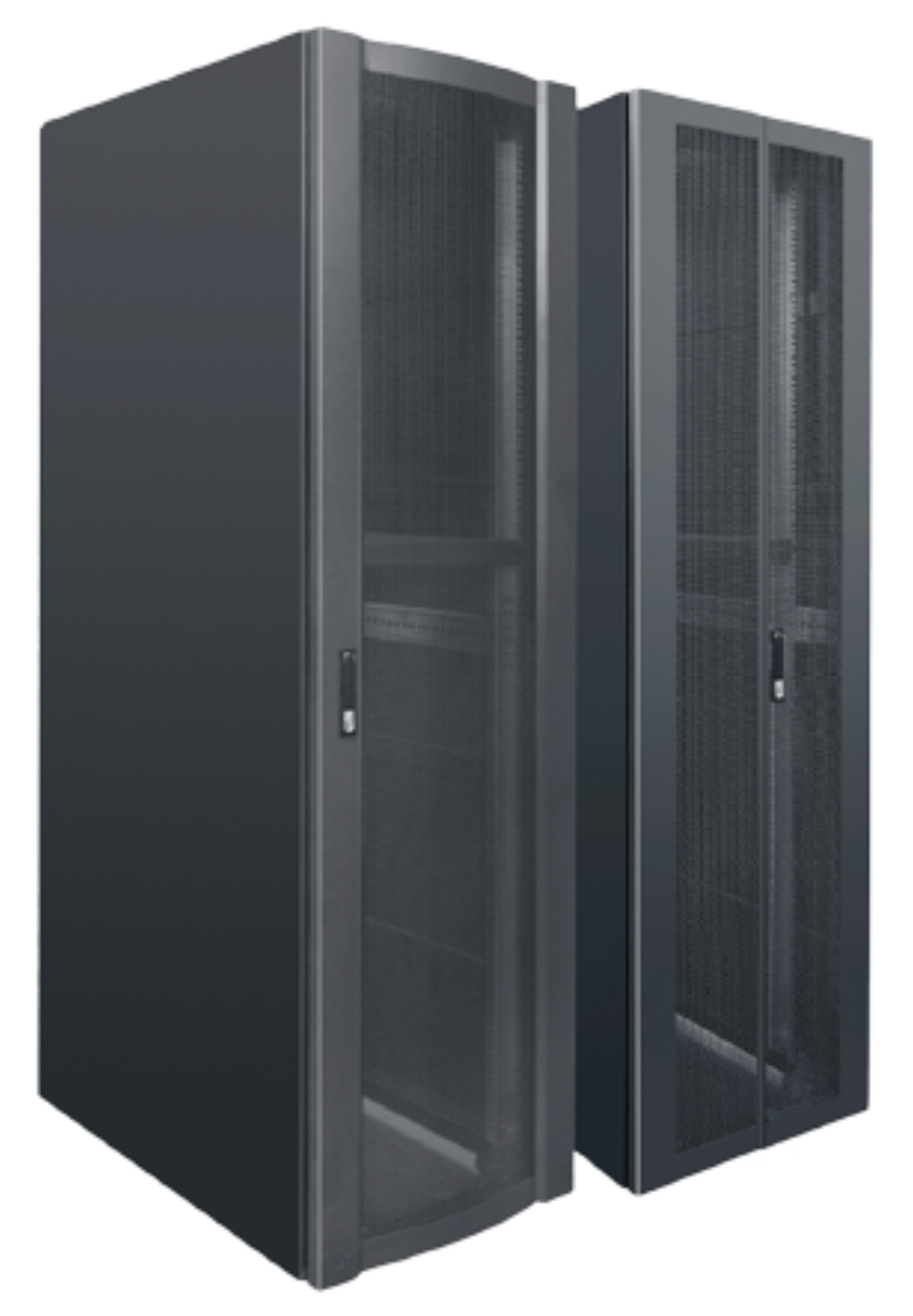

IDC Server Cabinet -03

Technical Data

Materials:

· SPCC high quality cold rolled steel

· Surface process: degreasing; phosphating; spray paint

· Thickness: Mounting profile 2.0mm;   Others 1.2-1.5mm

Colour:

· RAL9004 (black);   others could be required

Standard

  ·Compliant with ANSI/EIA; RS-210-D; IEC297-2;
   DIN41491;PART1; DIN41494;PAR7;
   GB/T2047.2-92; ETSI

 Features

 · The cabinet frame is made of international advanced 14-fold profiles with the special 3-way technology, which

   makes the structure stronger and can load about 1200 KG.

 · More than 65% of the heat dissipation area of the cabinet can be ensured by the mesh front single-door and

   mesh rear double-door.

 · The installation and disassembly of side doors is fast and convenient, which makes maintenance much easier

   and more effcient.

 · Movable caster and fixed feet can be used simultaneously, which makes the moving of cabinets easier.

 · Replaceable hinges have been installed on the door and protected of top cable holes by a rubber cover, which

   are flexible and safe.

 · Height: 42U, 47U

 · Depth: 800mm, 900mm, 1000mm ,1100mm and 1200mm.

 · The depth(25mm/unit) and inner height(1U/unit) are adjustable.

 · Flexible packaging ensures cabinet’s storage and delivery.

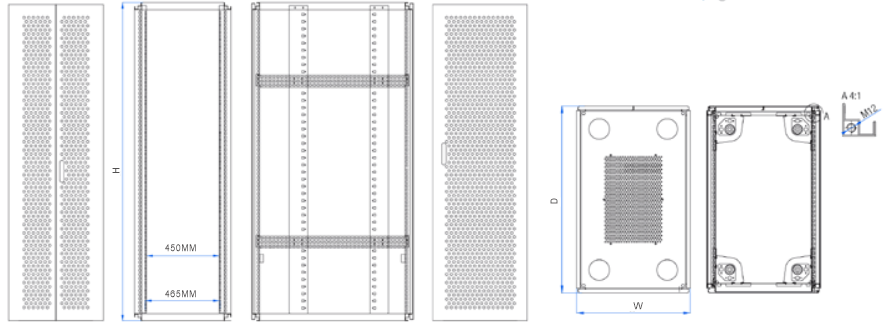

Mian Install the Fitting

Top cover

Caster tray

Cable management

Main Part

NO.

ITEM

QTY

SPCCT (mm)

1

Frame

1PCS

1.5

2

Mounting angle

4PCS

1.5

3

Mounting profile

4PCS

2.0

4

Top cover

1PCS

1.2

5

Bottom panel

1PCS

1.5

6

Fan tray

1PCS

1.2

7

Decorative plates

4PCS

2.0

8

Caster

4PCS

/

9

Side panel

2PCS

1.2

10

Front door

1PCS

1.2

11

Rear door

1SET

1.2

Ordering Information

Model

 Width
(mm)

Depth(D) (mm)

Height

(mm)

U

ZCIDC.6842-3 SHSC

600

800

1975

42U

ZCIDC.6942-3 SHSC

900

ZCIDC.6042-3 SHSC

1000

ZCIDC.6142-3 SHSC

1100

ZCIDC.6242-3 SHSC

1200

ZCIDC.8842-3 SHSC

800

800

1975

42U

ZCIDC.8942-3 SHSC

900

ZCIDC.8042-3 SHSC

1000

ZCIDC.8142-3 SHSC

1100

ZCIDC.8242-3 SHSC

1200

ZCIDC.6847-3 SHSC

600

800

2175

47U

ZCIDC.6947-3 SHSC

900

ZCIDC.6047-3 SHSC

1000

ZCIDC.6147-3 SHSC

1100

ZCIDC.6247-3 SHSC

1200

ZCIDC.8847-3 SHSC

800

800

2175

47U

ZCIDC.8947-3 SHSC

900

ZCIDC.8047-3 SHSC

1000

ZCIDC.8147-3 SHSC

1100

ZCIDC.8247-3 SHSC

1200
