Server Cabinet
hellosignal
ZCIDC-04
Copper System
Normally 25 working days
NINGBO, SHANGHAI

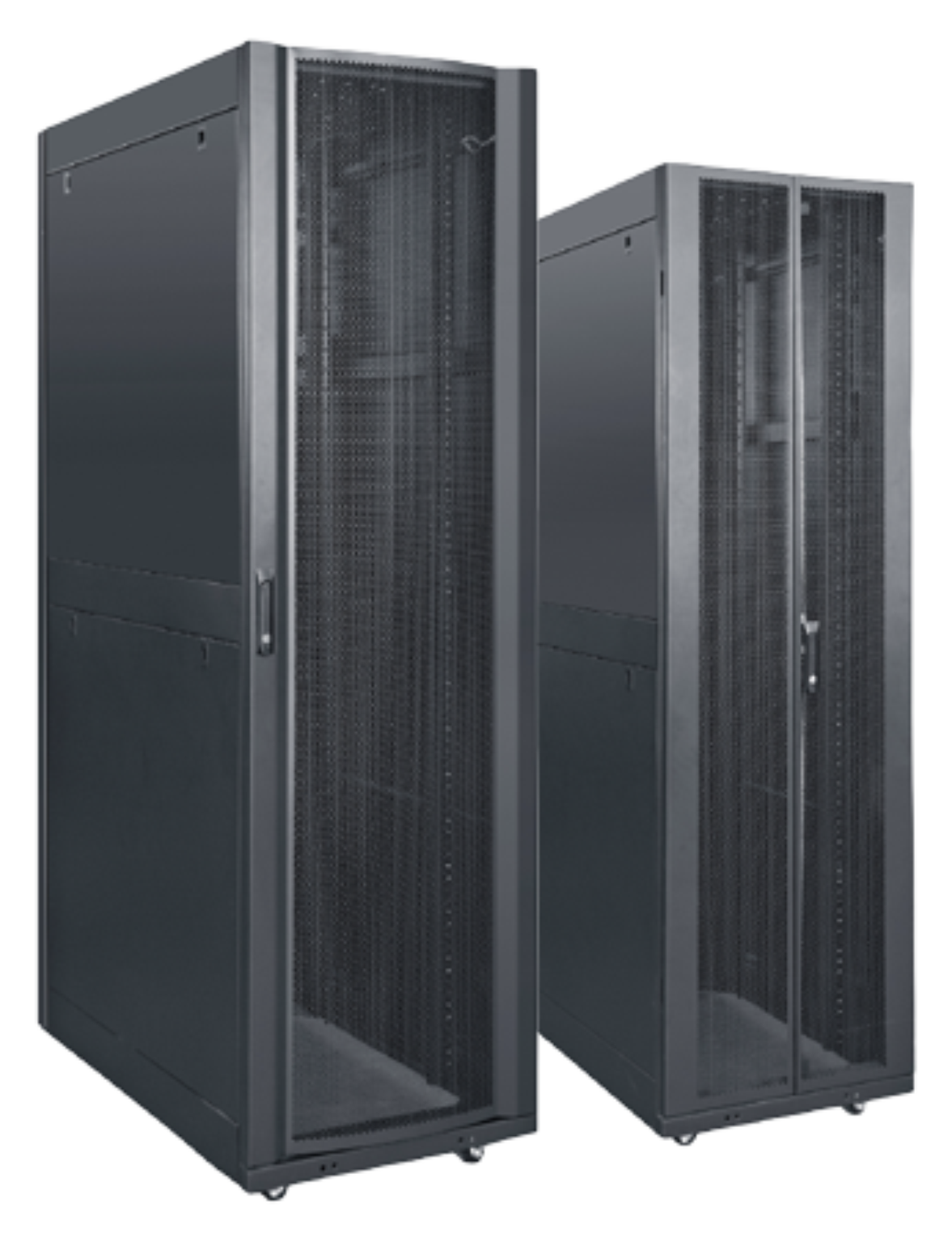

ZCIDC-04 Server Cabinet | ||||||
Technical Data | ||||||
Materials: |  | |||||
· SPCC high quality cold rolled steel | ||||||
· Surface process: degreasing; phosphating; spray paint | ||||||
· Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm | ||||||
Colour: | ||||||
· RAL9004 (black); others could be required | ||||||
Standard | ||||||
· Compliant with ANSI/EIA; RS-210-D; IEC297-2; | ||||||
Features | ||||||
· Curved mesh front door with folio mesh rear door ensures ventilation and visibility of the cabinet. | ||||||
· Movable caster and fixed feet can be used simultaneously; which allow the cabinet to bear about 1200KG. | ||||||
· Top panel has numerous fixed cable holes, vertical pressure plate on both sides of the back. | ||||||
· Removable doors in all directions are easy to operate for all angles. | ||||||
· Easy assembly makes system operation very simple. | ||||||
· Large ventilation area of more than 70% of the door area. | ||||||
· Height: 42U | ||||||
· Depth: 770mm, 870mm, 970mm ,1070mm. | ||||||
· Flexible packaging ensures cabinet’s storage and delivery. | ||||||
Mian Install the Fitting | ||||||
|
|
| ||||
Top cover | Ground cable | Cable management | ||||

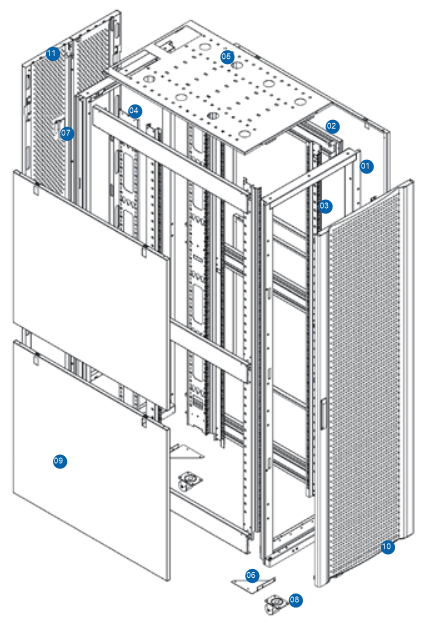

Main Part |  | |||||
NO. | ITEM | QTY | SPCCT (mm) | |||
1 | Frame | 2PCS | 2.0 | |||
2 | Mounting angle | 6PCS | 1.5 | |||
3 | Mounting profile | 4PCS | 2.0 | |||
4 | Cable management slot | 2PCS | 1.5 | |||
5 | Top cover | 1PCS | 1.2 | |||
6 | Supporting tray | 4PCS | 2.0 | |||
7 | Hinge | 6PCS | / | |||
8 | Caster | 4PCS | / | |||
9 | Side panel | 4PCS | 1.2 | |||
10 | Single-open front door | 1PCS | 1.2 | |||
11 | Folio door | 1PCS | 1.2 | |||
Ordering Information | ||||||
Model | Width | Depth(D) (mm) | Height(mm) | U | ||
ZCIDC.6842-4 SHSC | 600 | 770 | 2000 | 42U | ||
ZCIDC.6942-4 SHSC | 870 | |||||
ZCIDC.6042-4 SHSC | 970 | |||||
ZCIDC.6142-4 SHSC | 1070 | |||||
| ||||||
