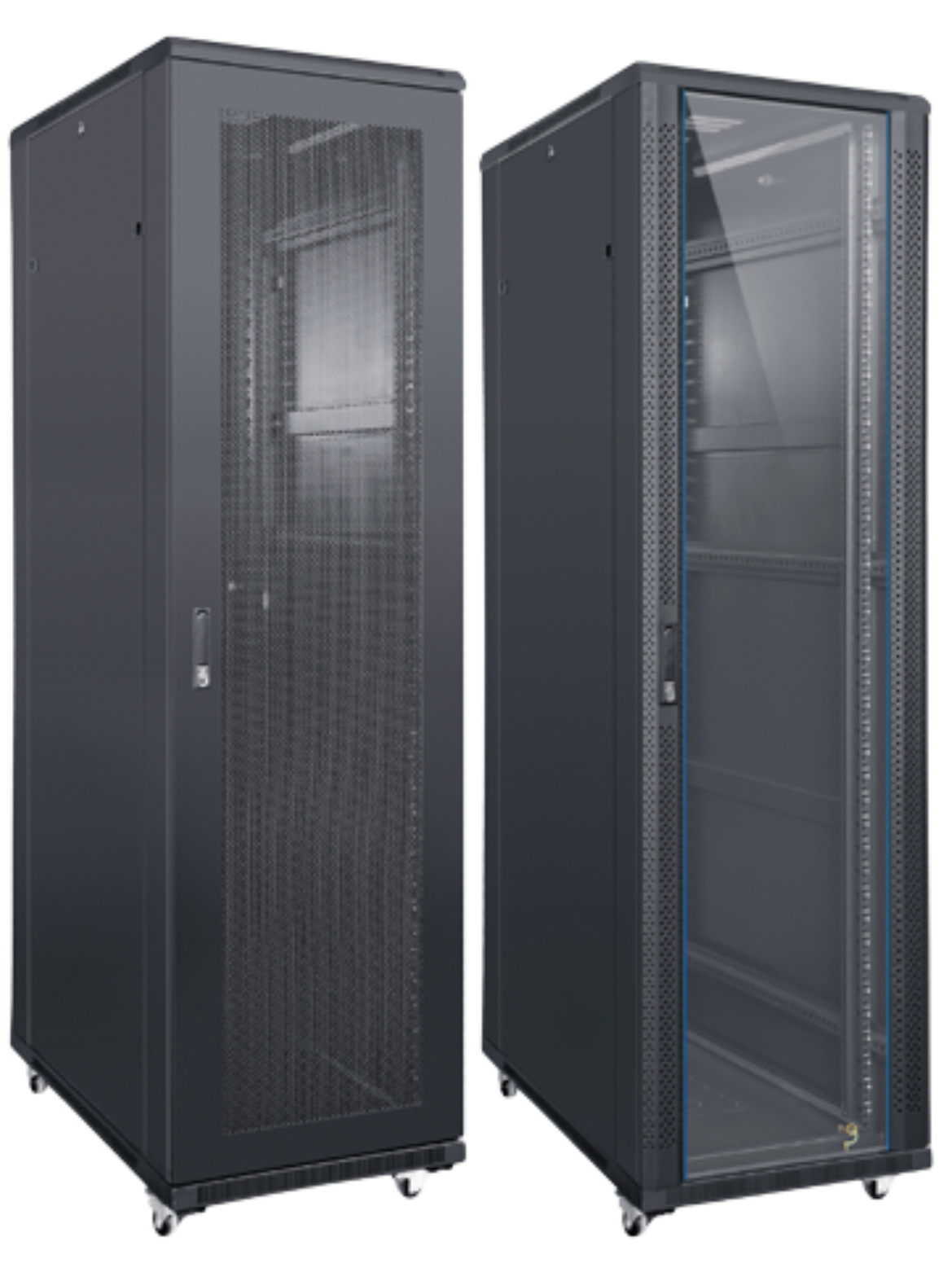

IDC Server Cabinet -06

Materials:

· SPCC high quality cold rolled steel

· Surface process: degreasing; phosphating; spray paint

· Thickness: Mounting profile 2.0mm;   Others 1.2-1.5mm

Colour:

· RAL9004 (black);   others could be required

Standard

  ·Compliant with ANSI/EIA; RS-210-D; IEC297-2;
   DIN41491;PART1; DIN41494;PAR7;
   GB/T2047.2-92; ETSI

 Features

 · Strong structure with static loading capacity: 800KG

 · Adjustable support with load-bearing well caster ensuresthat the cabinet can be moved and fixed easily.

 · High-density arc mesh front door and flat mesh back door have a ventilation rate of 65%, benefit for heat
   dissipation problem of other parts of the cabinet.

 · Excellent and elegant exterior door hinge With 180 degrees, which makes the door can be opened 180
   degrees in parallel when it's connected, easy to assemble and operate.

 · Cables enter from the top or the bottom, all of the tray for front, rear and side panel could be taken out.

 · Full range of optional accessories with trustworthy quality.

 · Height: 18U,22U,27U,32U,37U, 42U,47U

 · Depth: 800mm, 900mm and 1000mm.

 · Flexible packaging ensures cabinet’s storage and delivery.

Mian Install the Fitting

Top cover

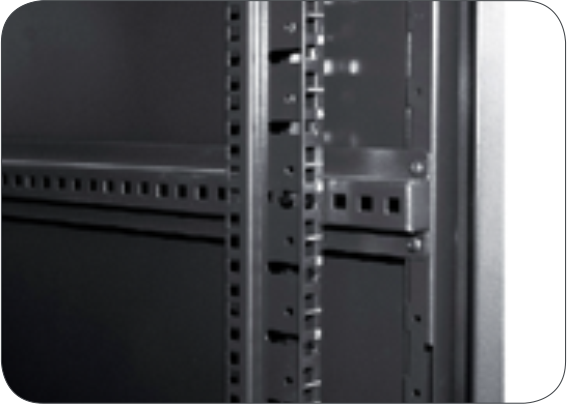

Mounting profile

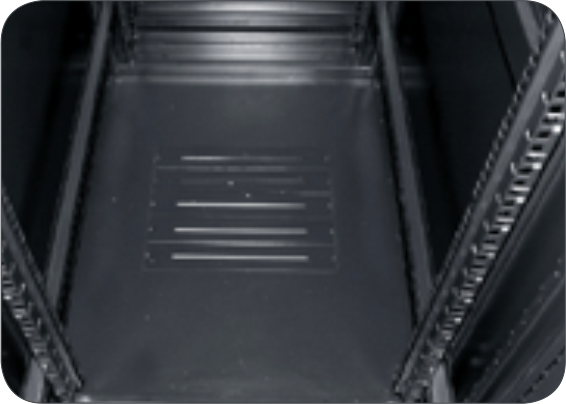

Bottom panel

Main Part

NO.

ITEM

QTY

SPCCT
(mm)

1

Frame

2PCS

2.0

2

Mounting angle

6PCS

1.5

3

Mounting profile

4PCS

2.0

4

Top cover

1PCS

1.2

5

Fan tray

1PCS

1.2

6

Fan tray cover

1PCS

1.2

7

Cable entrance cover

4PCS

1.2

8

Supporting tray

4PCS

2.0

9

Hinge

6PCS

/

10

Caster

4PCS

/

11

Side panel

4SET

1.2

12

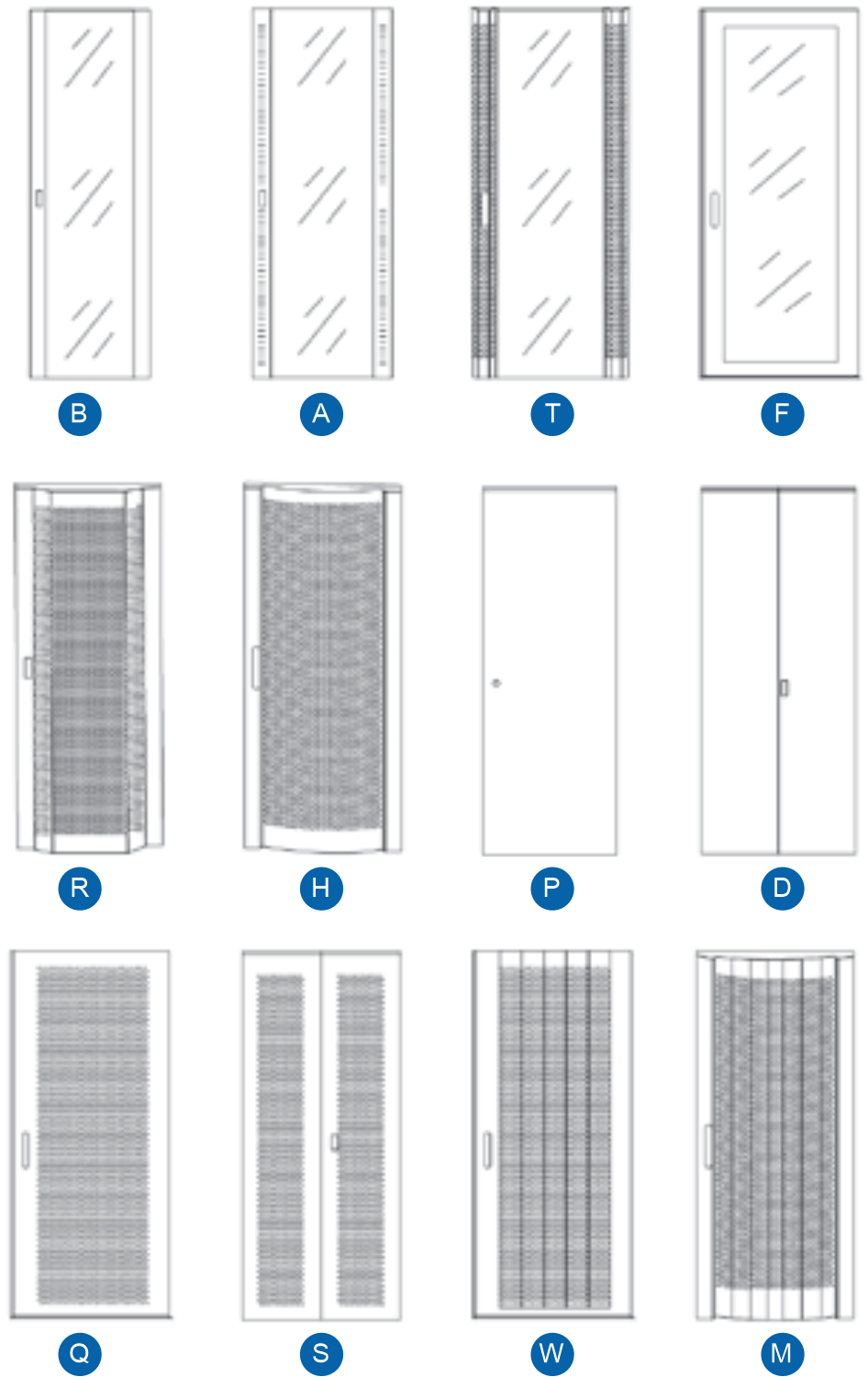

Glass door

1PCS

1.2

13

T-type glass door

1PCS Optional

1.2

14

T-type mess door

1PCS Optional

15

Curved mesh door

1PCS Optional

16

Glass mesh door

1PCS Optional

17

Steel door

1PCS Optional

18

Folio mesh door

1PCS Optional

19

Flat mesh door

1PCS Optional

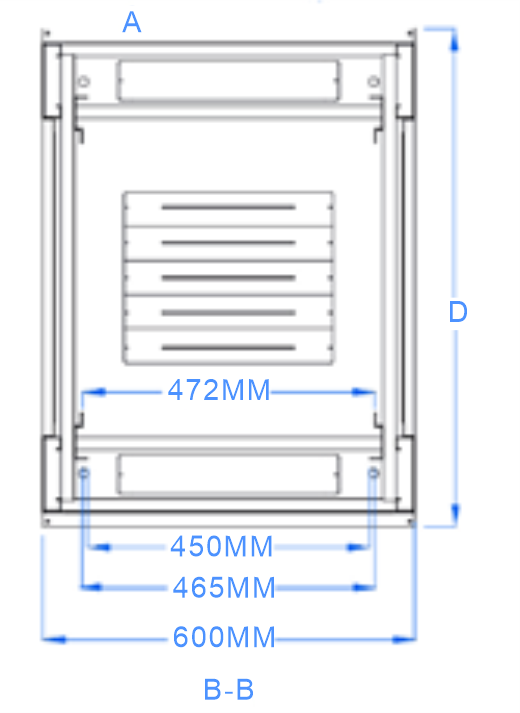

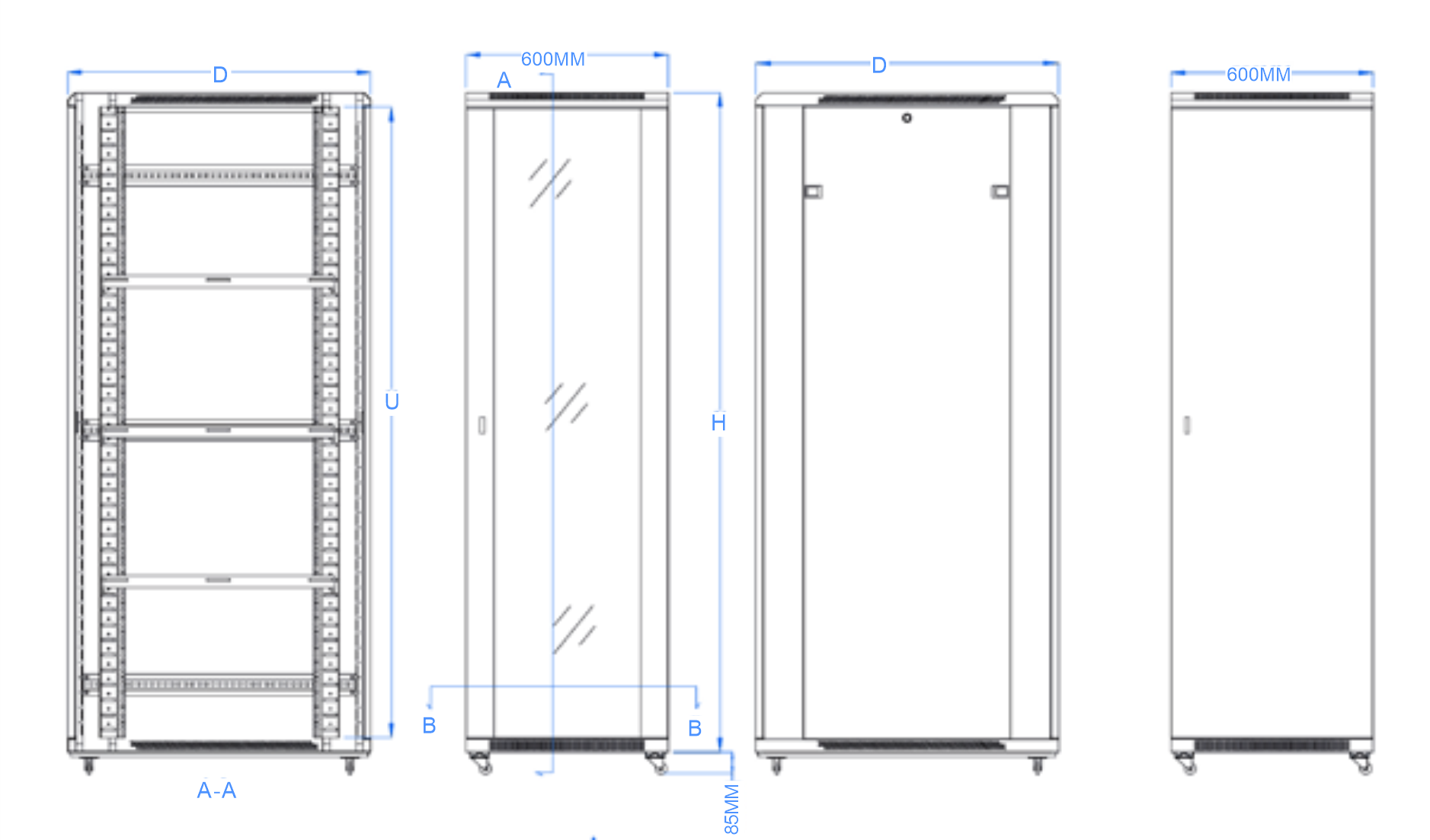

Ordering Information

Model

 Width
(mm)

Depth(D) (mm)

Height
(mm)

U

ZCIDC.6818-6 SHSC

600

800

900

18U

ZCIDC.6918-6 SHSC

900

ZCIDC.6018-6 SHSC

1000

ZCIDC.6822-6 SHSC

600

800

1080

22

ZCIDC.6922-6 SHSC

900

ZCIDC.6022-6 SHSC

1000

ZCIDC.6827-6 SHSC

600

800

1300

27

ZCIDC.6927-6 SHSC

900

ZCIDC.6027-6 SHSC

1000

ZCIDC.6832-6 SHSC

600

800

1525

32

ZCIDC.6932-6 SHSC

900

ZCIDC.6032-6 SHSC

1000

ZCIDC.6837-6 SHSC

600

800

1745

37

ZCIDC.6937-6 SHSC

900

ZCIDC.6037-6 SHSC

1000

ZCIDC.6842-6 SHSC

600

800

1965

42

ZCIDC.6942-6 SHSC

900

ZCIDC.6042-6 SHSC

1000

ZCIDC.6847-6 SHSC

600

800

2190

47

ZCIDC.6947-6 SHSC

900

ZCIDC.6047-6 SHSC

1000

Remark: Information in the sheet refers to the height of cabinet without castor
