IDC Server Cabinet -07

Technical Data

Materials:

· SPCC high quality cold rolled steel

· Surface process: degreasing; phosphating; spray paint

· Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm

Colour:

· RAL9004 (black);   others could be required

Standard

 ·Compliant with ANSI/EIA; RS-210-D; IEC297-2;
   DIN41491;PART1; DIN41494;PAR7;
   GB/T2047.2-92; ETSI

 Features

 · Strong structure with static loading capacity: 800KG

 · Adjustable support with load-bearing well caster ensuresthat the cabinet can be moved and fixed easily.

 · Tempered glass front doorwith vented metal straight rowof holes, beautiful appearancedesign with
   steel rear door.

 · Excellent and elegant exterior door hinge With 180 degrees, which makes the door can be opened 180
   degrees in parallel when it's connected, easy to assemble and operate.

 · Cables enter from the top or the bottom, all of the tray for front, rear and side panel could be taken out.

 · Size of the device installationcan be selected from 19-27inches, and the 19-inch canbe equipped with a
   verticalcable management rack.

· Full range of optional accessories with trustworthyquality.

 · Height: 18U,22U,27U,32U,37U, 42U,47U

 · Depth: 800mm, 900mm and 1000mm.

 · Flexible packaging ensures cabinet’s storage and delivery.

Mian Install the Fitting

Cable management

Bottom panel

Mounting angle

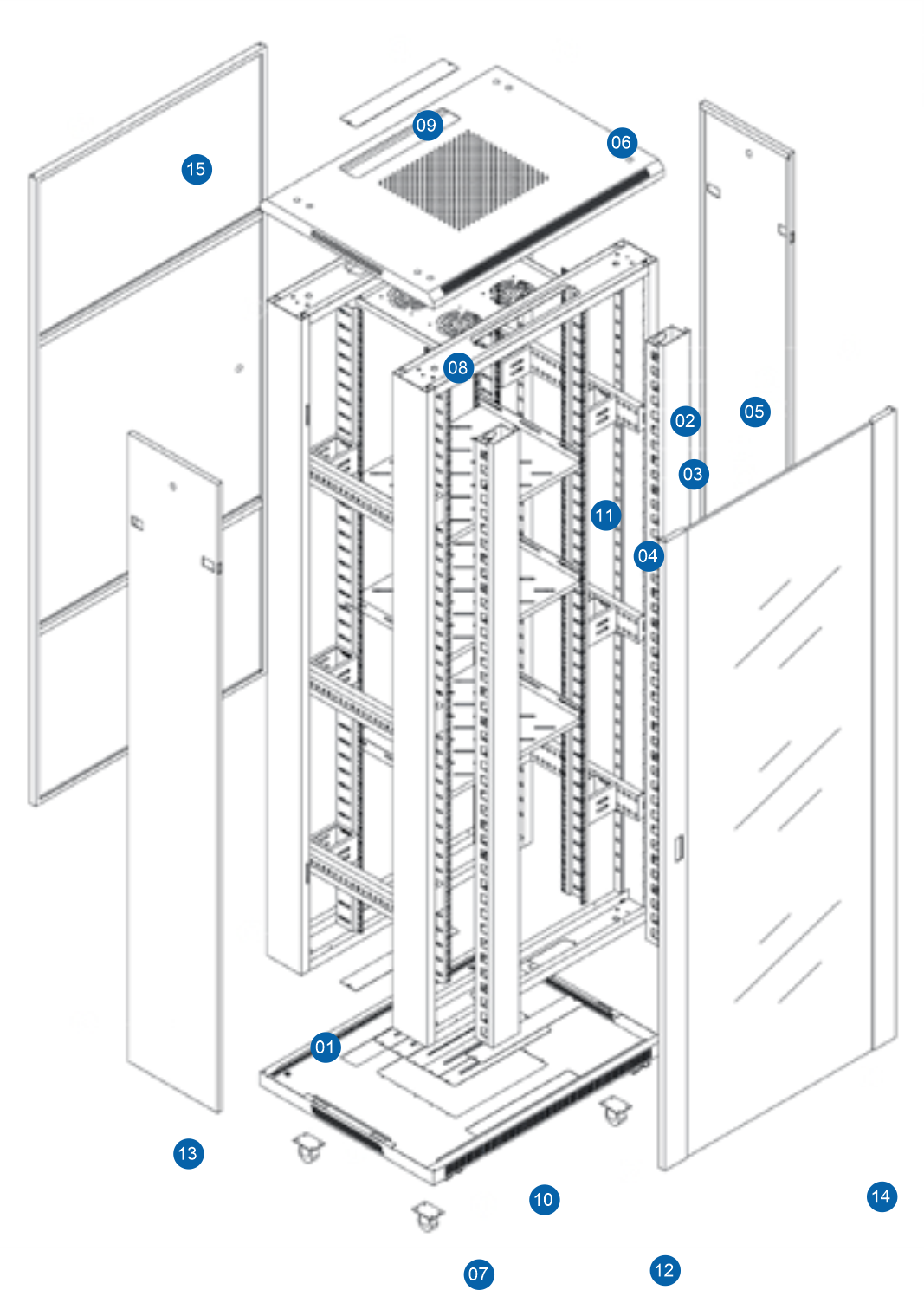

Main Part

NO.

ITEM

QTY

SPCCT
(mm)

1

Frame

2PCS

1.2

2

Mounting angle

4/6PCS

1.2

3

Connector

8/12PCS

2.0

4

Mounting post 19in

4PCS

2.0

5

Vertical cable
management rack

2PCS

1.0

6

Top cover

1PCS

1.2

7

Bottom panle

1PCS

1.2

8

Fan tray

1PCS

1.0

9

Decorative tray

3PCS

1.0

10

Cable tray

5PCS

1.0

11

Fixed partition

Optional

1.2

12

Caster

4PCS

/

13

Side penal

2PCS

1.0

14

Glass door

1PCS

1.2

15

Steel door

1PCS

1.2

Ordering Information

Model

 Width
(mm)

Depth(D) (mm)

Height
(mm)

U

ZCIDC.8618-7 SHSC

800

600

900

18U

ZCIDC.8818-7 SHSC

800

ZCIDC.8918-7 SHSC

900

ZCIDC.8018-7 SHSC

1000

ZCIDC.8622-7 SHSC

800

600

1080

22U

ZCIDC.8822-7 SHSC

800

ZCIDC.8922-7 SHSC

900

ZCIDC.8022-7 SHSC

1000

ZCIDC.8627-7 SHSC

800

600

1300

27U

ZCIDC.8827-7 SHSC

800

ZCIDC.8927-7 SHSC

900

ZCIDC.8027-7 SHSC

1000

ZCIDC.8632-7 SHSC

800

600

1525

32U

ZCIDC.8832-7 SHSC

800

ZCIDC.8932-7 SHSC

900

ZCIDC.8032-7 SHSC

1000

ZCIDC.8637-7 SHSC

800

600

1745

37U

ZCIDC.8837-7 SHSC

800

ZCIDC.8937-7 SHSC

900

ZCIDC.8037-7 SHSC

1000

ZCIDC.8642-7 SHSC

800

600

1965

42U

ZCIDC.8842-7 SHSC

800

ZCIDC.8942-7 SHSC

900

ZCIDC.8042-7 SHSC

1000

ZCIDC.8647-7 SHSC

800

600

2190

47U

ZCIDC.8847-7 SHSC

800

ZCIDC.8947-7 SHSC

900

ZCIDC.8047-7 SHSC

1000

Remark: Information in the sheet refers to the height of cabinet without castor
