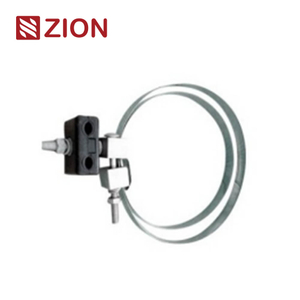

Immobility Clamp for Pole
hellosignal
Optical Fiber cable Hardware
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Immobility Clamp for Pole | |||||
Application: it is used for fixing tension and suspension clamp on the pole. | |||||
| |||||
Name | Model | Suitable Range | Weight (kg) | Material | FailingLoad |
Hoop | ZC-TGZ 080 070 | Size of main material≤ 80mm | 3.55 | Hot dip galvanized steel | 70 |
ZC-HBG 070 125 | Pole diameter： 101～125mm | 2.3 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 150 | Pole diameter： 126～150mm | 2.5 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 175 | Pole diameter： 151～175mm | 2.7 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 200 | Pole diameter： 176～200mm | 2.9 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 225 | Pole diameter： 201～225mm | 3.2 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 250 | Pole diameter： 226～250mm | 3.4 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 275 | Pole diameter： 251～275mm | 4 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 300 | Pole diameter： 276～300mm | 4.2 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 325 | Pole diameter： 301～325mm | 4.4 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 350 | Pole diameter： 326～350mm | 4.6 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 375 | Pole diameter： 351～375mm | 4.9 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 400 | Pole diameter： 376～400mm | 5.1 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 425 | Pole diameter： 401～425mm | 5.3 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 450 | Pole diameter： 426～450mm | 5.5 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 475 | Pole diameter： 451～475mm | 5.7 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 500 | Pole diameter： 476～500mm | 6 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 525 | Pole diameter： 501～525mm | 6.2 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 550 | Pole diameter： 526～550mm | 6.4 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 575 | Pole diameter： 551～575mm | 6.6 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 600 | Pole diameter： 576～600mm | 6.8 | Hot dip galvanized steel | 70 | |
Immobility Clamp for Pole | |||||
Application: it is used for fixing tension and suspension clamp on the pole. | |||||
| |||||
Name | Model | Suitable Range | Weight (kg) | Material | FailingLoad |
Hoop | ZC-TGZ 080 070 | Size of main material≤ 80mm | 3.55 | Hot dip galvanized steel | 70 |
ZC-HBG 070 125 | Pole diameter： 101～125mm | 2.3 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 150 | Pole diameter： 126～150mm | 2.5 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 175 | Pole diameter： 151～175mm | 2.7 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 200 | Pole diameter： 176～200mm | 2.9 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 225 | Pole diameter： 201～225mm | 3.2 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 250 | Pole diameter： 226～250mm | 3.4 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 275 | Pole diameter： 251～275mm | 4 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 300 | Pole diameter： 276～300mm | 4.2 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 325 | Pole diameter： 301～325mm | 4.4 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 350 | Pole diameter： 326～350mm | 4.6 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 375 | Pole diameter： 351～375mm | 4.9 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 400 | Pole diameter： 376～400mm | 5.1 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 425 | Pole diameter： 401～425mm | 5.3 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 450 | Pole diameter： 426～450mm | 5.5 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 475 | Pole diameter： 451～475mm | 5.7 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 500 | Pole diameter： 476～500mm | 6 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 525 | Pole diameter： 501～525mm | 6.2 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 550 | Pole diameter： 526～550mm | 6.4 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 575 | Pole diameter： 551～575mm | 6.6 | Hot dip galvanized steel | 70 | |
ZC-HBG 070 600 | Pole diameter： 576～600mm | 6.8 | Hot dip galvanized steel | 70 | |
