How the Cable Is Positioned
The catalog title identifies the product as JE-H(St)H...Bd FE180-E30/E90 Solid Fire Cable and describes it as a fire communication cable with circuit integrity. It uses Class 1 solid plain annealed copper conductors and FRNC compound materials.
Reference Standards and Material Blocks
| Datasheet Area | Catalog Detail | Why It Matters |
|---|---|---|
| Flame propagation | VDE 0482-266-2-4 / IEC 60332-3-24 | Defines referenced flame propagation context. |
| Fire resistant | VDE 0472-814 / IEC 60331-11 (FE 180) | Identifies fire resistance reference. |
| Circuit integrity | E30/E90: DIN 4102-12 | Connects the family with circuit integrity classification. |
| Halogen free and smoke density | DIN EN 50267 / IEC 60754 and DIN EN 61034 / IEC 61034 | Supports material behavior review. |

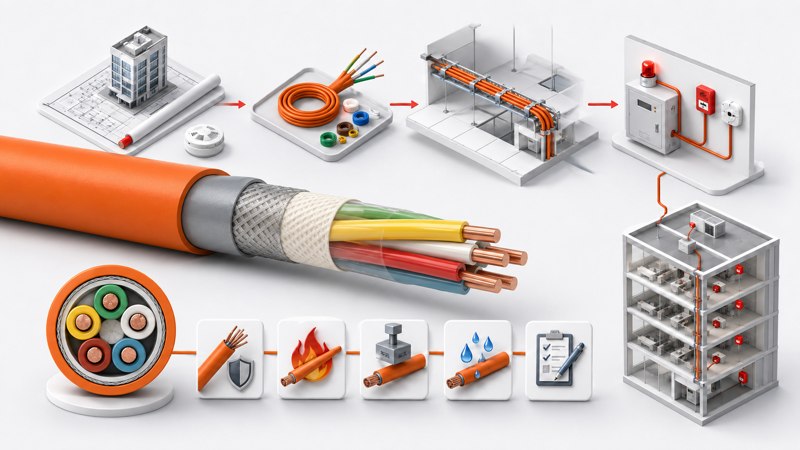

Construction and Electrical Details
The construction block lists FRNC-compound HI 1 insulation, fibre foil with more than 120% coverage as first screen, tinned copper drain wire with OD 0.80 mm, aluminum polyester tape with more than 120% coverage as second screen, FRNC-compound HM2 outer sheath, and orange sheath color.
Electrical data includes insulation resistance above 100 M Ohm*Km, 500 V / 2000 V core-core/core-screen test voltage, mutual capacitance below 120 nF/km at 800 Hz, and peak operating voltage of 225 V.
How to Read the Pair Count Table
The table uses pair-based notation such as 1×2×0.8, 2×2×0.8, 4×2×0.8, 8×2×0.8, up to 52×2×0.8. Confirm the pair count, conductor diameter, outer diameter, sheath color, cable length, and marking requirements before requesting support.
FAQ
What does FE180-E30/E90 refer to in this context?
The datasheet connects FE180 with fire resistance references and E30/E90 with DIN 4102-12 circuit integrity context.
What sheath color is listed for this family?
The construction block lists orange sheath color.
How is this different from EN 50200 PH120 cable?
This is a JE-H(St)H fire communication cable family with VDE, IEC, and DIN references, pair-count notation, and different electrical data.
