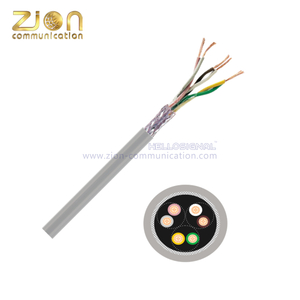

LiYCY Control Cable / Data Cable

  • LiYCY Control Cable/ Data Cable

  • hellosignal

Availability:

Product Description


LiYCY Control Cable/ Data Cable

LiYCY

LiYCY2


Application:



Cable Standards:

LiYCY cable can be used for signal transmission between electronic devices, in computer systems or process control units with increased electromagnetic compatibility requirements.



VDE 0482-332-1-2, EN 60811-2-



Fire Retardant according to: IEC 60332-1





Product Description:

Conductor

Bare copper strands with reference to VDE 0812

Insulation

PVC, TI2 acc. to EN 50363-3, VDE 0207-363-3

Colour code

With reference to DIN 47100

Stranding

In layers

Wrapping

PETP foil

Screen

Tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1, VDE 0207-363-4-1

Sheath colour

Grey (RAL 7032)


Characteristics:

Peak operating voltage

< 0.25 mm² = max. 350 V
≥ 0.25 mm² = max. 500 V

Testing voltage

core/core 1500 V
core/screen 1200 V

Min. bending radius


fixed laying:

 5 x d

flexible application:

10 x d

Temperature range


fixed laying:

-30/+70 °C

flexible application:

-5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 , VDE 0482-332-1-2

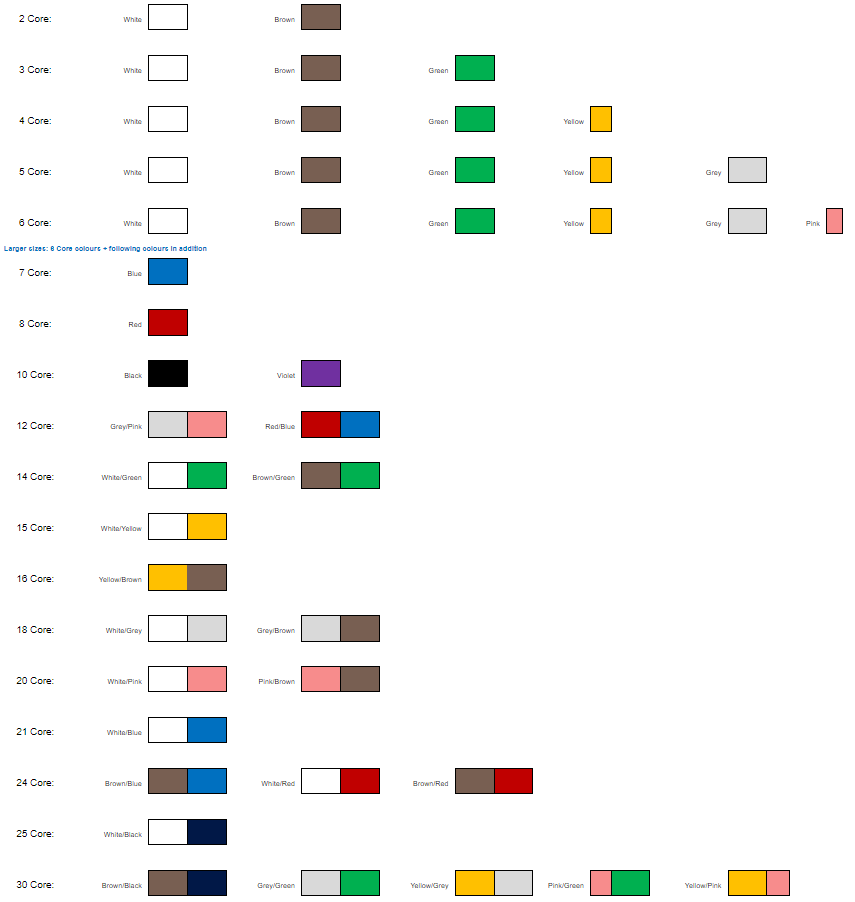

Core Identification:

2 Core:

White



Brown



















3 Core:

White



Brown



Green
















4 Core:

White



Brown



Green



Yellow












5 Core:

White



Brown



Green



Yellow



Grey








6 Core:

White



Brown



Green



Yellow



Grey



Pink



Larger sizes: 6 Core colours + following colours in addition

7 Core:

Blue























8 Core:

Red























10 Core:

Black



Violet




















12 Core:

Grey/Pink



Red/Blue




















14 Core:

White/Green



Brown/Green




















15 Core:

White/Yellow























16 Core:

Yellow/Brown























18 Core:

White/Grey



Grey/Brown




















20 Core:

White/Pink



Pink/Brown




















21 Core:

White/Blue























24 Core:

Brown/Blue



White/Red



Brown/Red
















25 Core:

White/Black






















30 Core:

Brown/Black



Grey/Green



Yellow/Grey



Pink/Green



Yellow/Pink




















































































Dimensions:




Zion Code

No. Of
Cores

Cross
Section

Outer-ø
± 5% mm

Copper Figure kg/km

Cable Weight
≈ kg/km

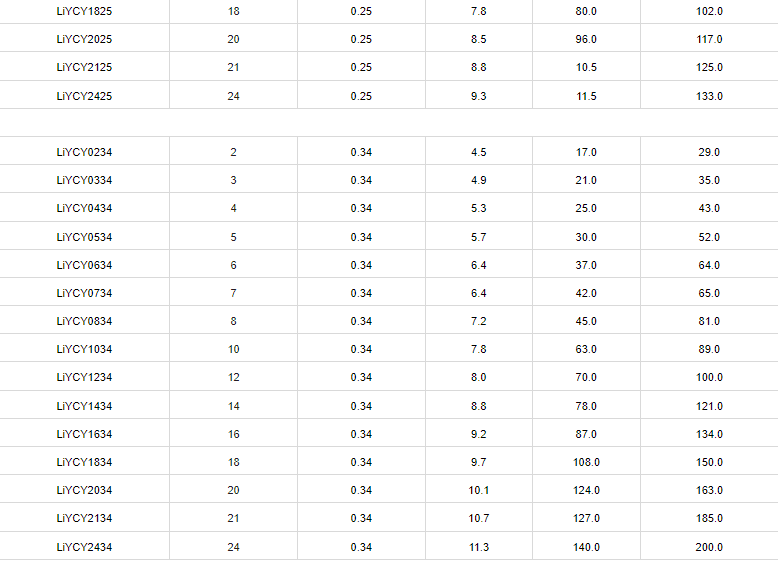

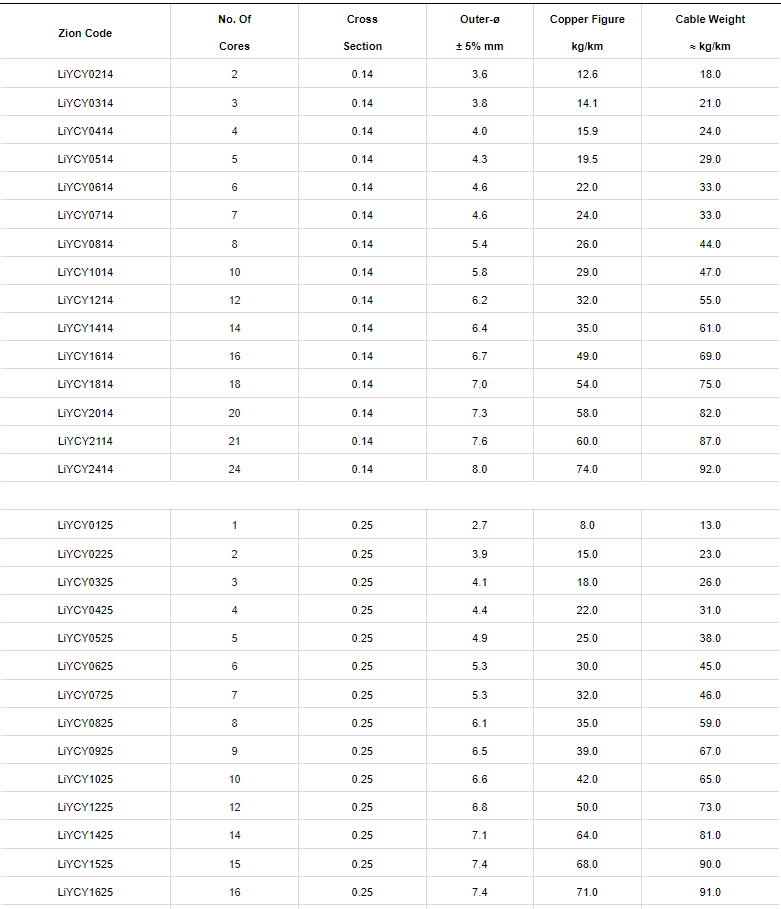

LiYCY0214

2

0.14

3.6

12.6

18.0







LiYCY0314

3

0.14

3.8

14.1

21.0







LiYCY0414

4

0.14

4.0

15.9

24.0







LiYCY0514

5

0.14

4.3

19.5

29.0







LiYCY0614

6

0.14

4.6

22.0

33.0







LiYCY0714

7

0.14

4.6

24.0

33.0







LiYCY0814

8

0.14

5.4

26.0

44.0







LiYCY1014

10

0.14

5.8

29.0

47.0







LiYCY1214

12

0.14

6.2

32.0

55.0







LiYCY1414

14

0.14

6.4

35.0

61.0







LiYCY1614

16

0.14

6.7

49.0

69.0







LiYCY1814

18

0.14

7.0

54.0

75.0







LiYCY2014

20

0.14

7.3

58.0

82.0







LiYCY2114

21

0.14

7.6

60.0

87.0







LiYCY2414

24

0.14

8.0

74.0

92.0








LiYCY0125

1

0.25

2.7

8.0

13.0







LiYCY0225

2

0.25

3.9

15.0

23.0







LiYCY0325

3

0.25

4.1

18.0

26.0







LiYCY0425

4

0.25

4.4

22.0

31.0







LiYCY0525

5

0.25

4.9

25.0

38.0







LiYCY0625

6

0.25

5.3

30.0

45.0







LiYCY0725

7

0.25

5.3

32.0

46.0







LiYCY0825

8

0.25

6.1

35.0

59.0







LiYCY0925

9

0.25

6.5

39.0

67.0







LiYCY1025

10

0.25

6.6

42.0

65.0







LiYCY1225

12

0.25

6.8

50.0

73.0







LiYCY1425

14

0.25

7.1

64.0

81.0







LiYCY1525

15

0.25

7.4

68.0

90.0







LiYCY1625

16

0.25

7.4

71.0

91.0







LiYCY1825

18

0.25

7.8

80.0

102.0







LiYCY2025

20

0.25

8.5

96.0

117.0







LiYCY2125

21

0.25

8.8

10.5

125.0







LiYCY2425

24

0.25

9.3

11.5

133.0








LiYCY0234

2

0.34

4.5

17.0

29.0







LiYCY0334

3

0.34

4.9

21.0

35.0







LiYCY0434

4

0.34

5.3

25.0

43.0







LiYCY0534

5

0.34

5.7

30.0

52.0







LiYCY0634

6

0.34

6.4

37.0

64.0







LiYCY0734

7

0.34

6.4

42.0

65.0







LiYCY0834

8

0.34

7.2

45.0

81.0







LiYCY1034

10

0.34

7.8

63.0

89.0







LiYCY1234

12

0.34

8.0

70.0

100.0







LiYCY1434

14

0.34

8.8

78.0

121.0







LiYCY1634

16

0.34

9.2

87.0

134.0







LiYCY1834

18

0.34

9.7

108.0

150.0







LiYCY2034

20

0.34

10.1

124.0

163.0







LiYCY2134

21

0.34

10.7

127.0

185.0







LiYCY2434

24

0.34

11.3

140.0

200.0

























































































Dimensions:




Zion Code

No. Of
Cores

Cross
Section

Outer-ø
± 5% mm

Copper Figure kg/km

Cable Weight
≈ kg/km

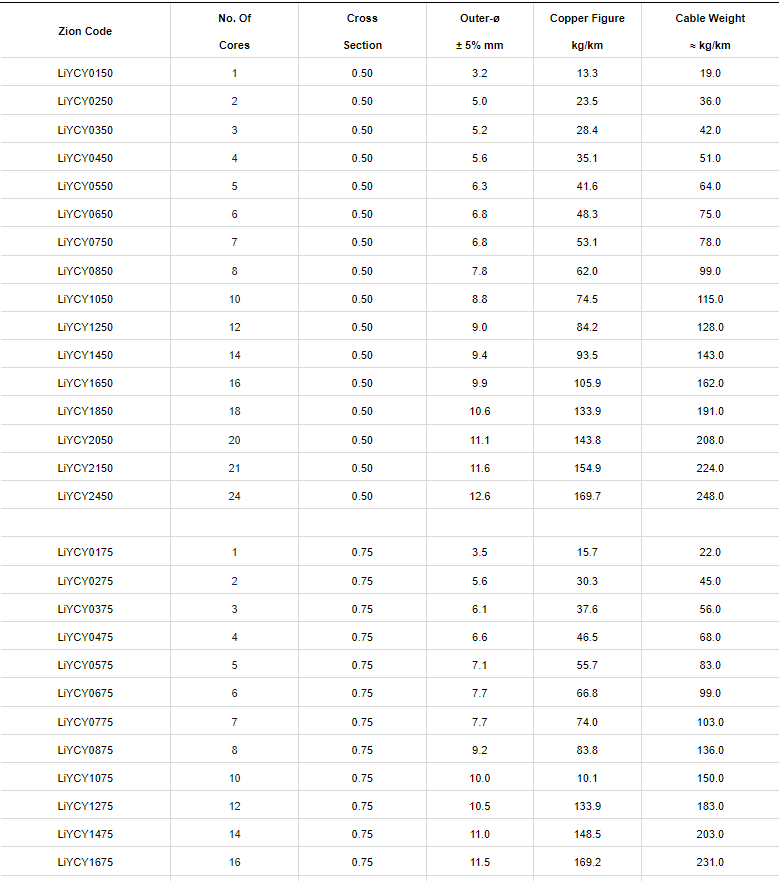

LiYCY0150

1

0.50

3.2

13.3

19.0







LiYCY0250

2

0.50

5.0

23.5

36.0







LiYCY0350

3

0.50

5.2

28.4

42.0







LiYCY0450

4

0.50

5.6

35.1

51.0







LiYCY0550

5

0.50

6.3

41.6

64.0







LiYCY0650

6

0.50

6.8

48.3

75.0







LiYCY0750

7

0.50

6.8

53.1

78.0







LiYCY0850

8

0.50

7.8

62.0

99.0







LiYCY1050

10

0.50

8.8

74.5

115.0







LiYCY1250

12

0.50

9.0

84.2

128.0







LiYCY1450

14

0.50

9.4

93.5

143.0







LiYCY1650

16

0.50

9.9

105.9

162.0







LiYCY1850

18

0.50

10.6

133.9

191.0







LiYCY2050

20

0.50

11.1

143.8

208.0







LiYCY2150

21

0.50

11.6

154.9

224.0







LiYCY2450

24

0.50

12.6

169.7

248.0



















LiYCY0175

1

0.75

3.5

15.7

22.0







LiYCY0275

2

0.75

5.6

30.3

45.0







LiYCY0375

3

0.75

6.1

37.6

56.0







LiYCY0475

4

0.75

6.6

46.5

68.0







LiYCY0575

5

0.75

7.1

55.7

83.0







LiYCY0675

6

0.75

7.7

66.8

99.0







LiYCY0775

7

0.75

7.7

74.0

103.0







LiYCY0875

8

0.75

9.2

83.8

136.0







LiYCY1075

10

0.75

10.0

10.1

150.0







LiYCY1275

12

0.75

10.5

133.9

183.0







LiYCY1475

14

0.75

11.0

148.5

203.0







LiYCY1675

16

0.75

11.5

169.2

231.0







LiYCY1875

18

0.75

12.4

184.0

264.0







LiYCY2175

21

0.75

13.6

211.0

307.0







LiYCY2475

24

0.75

14.4

239.1

333.0

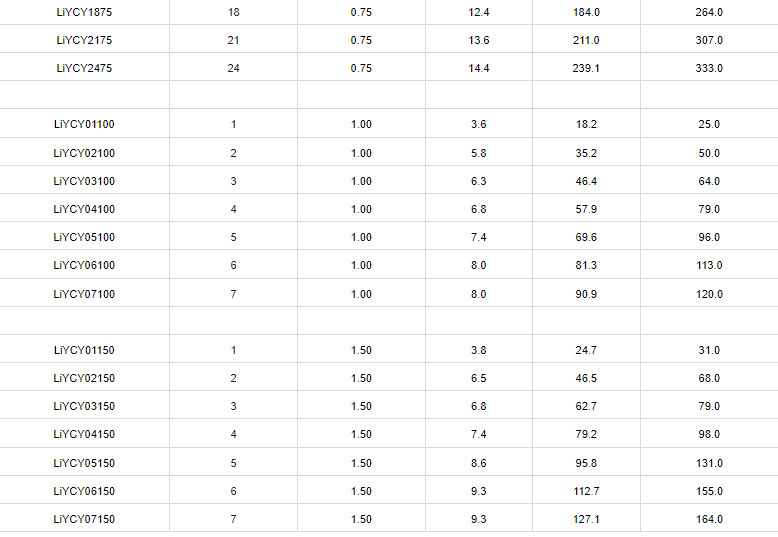

LiYCY01100

1

1.00

3.6

18.2

25.0







LiYCY02100

2

1.00

5.8

35.2

50.0







LiYCY03100

3

1.00

6.3

46.4

64.0







LiYCY04100

4

1.00

6.8

57.9

79.0







LiYCY05100

5

1.00

7.4

69.6

96.0







LiYCY06100

6

1.00

8.0

81.3

113.0







LiYCY07100

7

1.00

8.0

90.9

120.0



















LiYCY01150

1

1.50

3.8

24.7

31.0







LiYCY02150

2

1.50

6.5

46.5

68.0







LiYCY03150

3

1.50

6.8

62.7

79.0







LiYCY04150

4

1.50

7.4

79.2

98.0







LiYCY05150

5

1.50

8.6

95.8

131.0







LiYCY06150

6

1.50

9.3

112.7

155.0







LiYCY07150

7

1.50

9.3

127.1

164.0




                                   Note: LiYY: Means Type; 0214 Means 2 Core, 0.14mm2; V= PVC; O=LSZH
