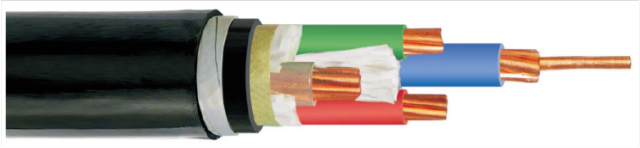

Low Voltage XLPE Insulated Steel Tape Armored Multi-Core Power Cable

■ Cable Type

· YJV22 0.6/1kV CU/XLPE/PVC/STA/PVC 22

· ZR-YJV22 0.6/1kV CU/XLPE/PVC/STA/FR-PVC

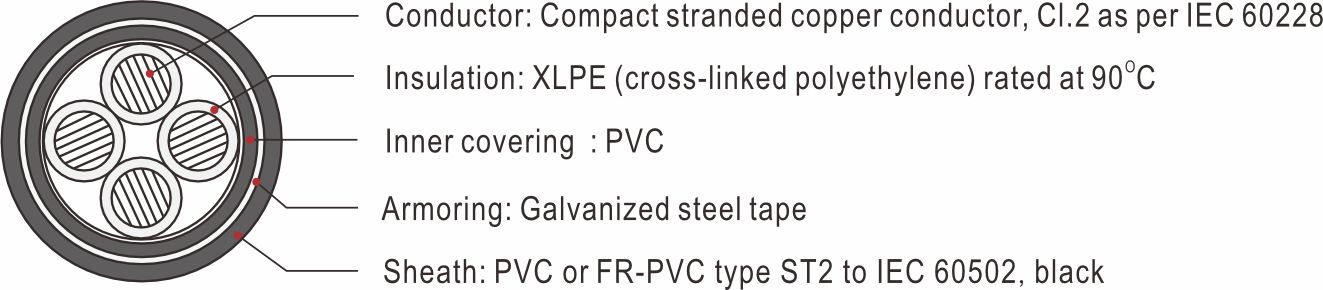

■ Cable Construction

Conductor

· Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation

· XLPE (cross-linked polyethylene) rated at 90℃

Inner Covering

· PVC

Armoring

· Galvanized steel tape

Sheath

· PVC or FR-PVC type ST2 to IEC 60502, black

■ Cable Code Designation

YJ

· XLPE insulation

V

· PVC sheath

22

· Galvanized steel tape armoring

ZR

· Flame resistant

Sheath

· PVC or FR-PVC type ST2 to IEC 60502, black

■ Cable Applications

· Apply to shafts, water and soil, able to bear the larger positive pressure.

■ Cable Standards

International

· IEC 60502, IEC 60228, IEC 60332

China

· GB/T 12706.1-2008

Other Standards

· BS, DIN, and ICEA upon request

■ Cable Technical Data

Rated Voltage

· 0.6 / 1 kV

Maximum Conductor Temperature

· Under normal conditions: 90℃

· Under emergency conditions: 130℃

· Under short circuit conditions (no more than 5 seconds): 250℃

Minimum Ambient Temperature

· -15℃

Installation Temperature

· 0℃

Minimum Bending Radius

· 12 x cable O.D for multi-core

Certificates

· CE, RoHS, CCC, KEMA, and more upon request

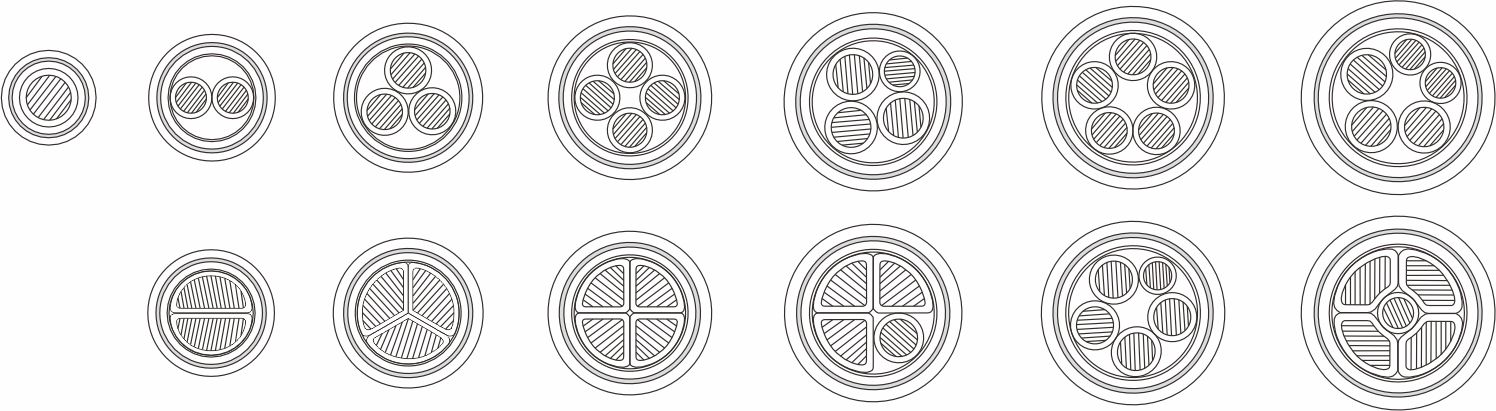

■ Cable Structure
