Mini RG59
hellosignal
7102167
Coaxial Cable
75 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
| Mini RG59 + 2×0.50 75 Ohm CCTV coaxial Cable NO.7102167 | ||||
| Construction Parameters: | ||||
| Inner Conductor | 0.41mm Bare Copper | |||
| Dielectric | 1.9mm Foam PE | |||
| Shield | 0.12mm BC-Braid(95%) | |||
| Jacket | 3.8mm PVC/PE/LSZH | |||
| Power Wire Conductor | 2x(16*0.18mmBC ) | |||
| Power wire Diameter of insulation | 1.8mm PVC (Red,Black) | |||
| Jacket | 4.6 mm PVC/PE/LSZH | |||
| Application | For Use in Longer CCTV Run Lengths | |||
| Electrical Characteristics: | ||||
| Inner Conductor Resistance | 136 Ohms/KM at 20℃ | |||
| Capacitance | 52±2 pF/m | |||
| Impedance | 75 ± 3 Ω | |||
| Return loss | between 5 and 1000MHz: > 22dB | |||
| Velocity of Propagation | 0.66 | |||
| Sparker Test (VAC) | 3 | |||
| Mechanical and Envrionmental Properties | ||||
| Cable bend radius | 10 times the cable diameter | |||
| Operating Temp Range | -20 ℃ to 60℃ | |||
| Cable diamensions | 3.8×4.6mm | |||

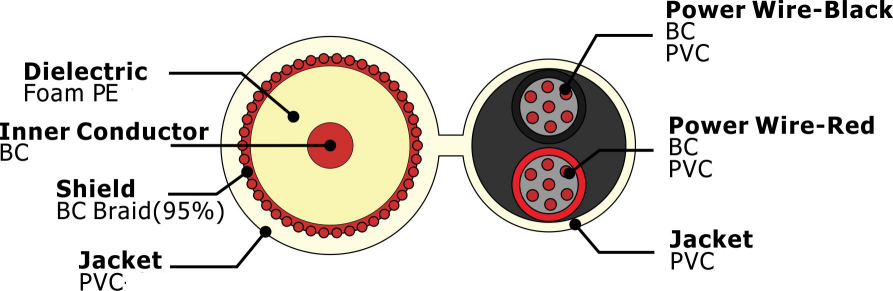

| Cross Section | ||||
 | ||||
| Attenuation(20℃): | ||||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |||
| 5 | 4.00 | |||
| 50 | 10.70 | |||
| 100 | 15.00 | |||
| 300 | 26.05 | |||
| 450 | 31.95 | |||
| 865 | 44.25 | |||
| 1000 | 47.60 | |||
| Order Informations: | ||||
| Marking | HELLOSIGNAL Mini RG59 + 2×0.50 Figure 8 CCTV COAXIAL CABLE 7102167 ×××M | |||
| Package | 100M/Roll,200M/Spool | |||
| Delivery time | Normally 25 days after received the deposit. | |||
| Brand | HELLOSIGNAL® OR OEM | |||
