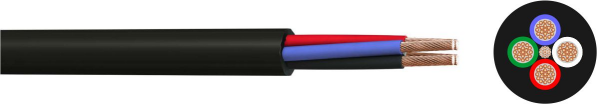

Multicore Circular Speaker Cable (MCSC4×4.0-PVC)

Multicore Circular Speaker Cable (MCSC4×4.0-PVC)

Application:

These are used for linking speakers designed for fixed installation in public buildings where PVC cables are specified.

Product Description:

Conductor Material

99.999% Oxygen Free Bare Copper

Conductor Size

4.0mm² (56/0.30mm)

Insulation Material

Polyvinyl Chloride (PVC)

Number of Cores

4

Sheath Material

Polyvinyl Chloride (PVC)

Sheath Colour

Black

Core Identification

Red, Blue

Electrical Characteristics:

Nominal Conductor Resistance

< 5.0 Ω/km

Insulation Resistance

> 200 MΩ.M

Voltage Rating

450/750V

Test Voltage

2.5kV for 5 Minutes

Physical Characteristics:

Overall Diameter

11.5 ± 0.2mm

Min. Bend Radius

15 x OD

Temperature Rating

-20°C to +70°C

Standards:

Flame Retardant

BS EN 60332-1-2

RoHS3 Compliant

Yes

CE Compliant

LVD (2014/35/EU), CPR (305/2011)

CPR Classification

Eca (EN50575:2014+A1:2016)
