Connectors for D-FB cable
hellosignal
N8DMRACL-1
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

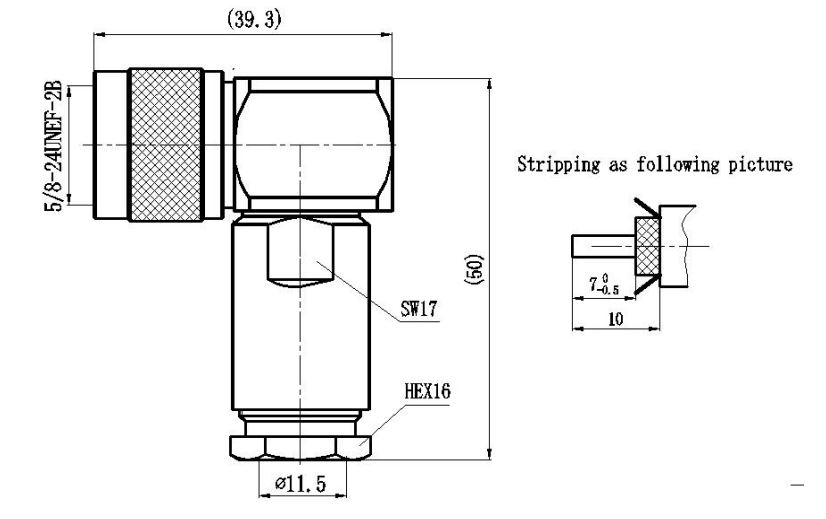

N Male Clamp Right Angle Connector for 8D-FB Cable | ||||||||
| ||||||||
For Cable：8D-FB Cable Dimensions are in millimeters (Jacket OD: 11.1±0.2mm) | ||||||||
Interface: | ||||||||
According to | IEC 60169-16 | |||||||
Electrical: | ||||||||
Characteristic Impedance | 50 ohm | |||||||
Frequency Range | DC-3GHz | |||||||
VSWR | ≤1.25 | |||||||
Insertion Loss (3G) | ≤0.15 | |||||||
Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level | |||||||
Dielectric Resistance | ≥5000MΩ | |||||||
Contact Resistance | Center Contact ≤1.0mΩ | |||||||
Mechanical: | ||||||||
Durability | Mating cycles ≥500 cycles | |||||||
Material and plating: | ||||||||
Material | plating | |||||||
Body | Brass | Ni | ||||||
Insulator | PTFE | _ | ||||||
Center conductor | Phosphor bronze | Au | ||||||
Other | Brass | Ni | ||||||
Environmental: | ||||||||
Temperature Range | -40℃～+85℃ | |||||||
RoHS-compliance | Full ROHS compliance | |||||||
Salt-fog test | 96h | |||||||
N Male Clamp Right Angle Connector for 8D-FB Cable | ||||||||
| ||||||||
For Cable：8D-FB Cable Dimensions are in millimeters (Jacket OD: 11.1±0.2mm) | ||||||||
Interface: | ||||||||
According to | IEC 60169-16 | |||||||
Electrical: | ||||||||
Characteristic Impedance | 50 ohm | |||||||
Frequency Range | DC-3GHz | |||||||
VSWR | ≤1.25 | |||||||
Insertion Loss (3G) | ≤0.15 | |||||||
Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level | |||||||
Dielectric Resistance | ≥5000MΩ | |||||||
Contact Resistance | Center Contact ≤1.0mΩ | |||||||
Mechanical: | ||||||||
Durability | Mating cycles ≥500 cycles | |||||||
Material and plating: | ||||||||
Material | plating | |||||||
Body | Brass | Ni | ||||||
Insulator | PTFE | _ | ||||||
Center conductor | Phosphor bronze | Au | ||||||
Other | Brass | Ni | ||||||
Environmental: | ||||||||
Temperature Range | -40℃～+85℃ | |||||||
RoHS-compliance | Full ROHS compliance | |||||||
Salt-fog test | 96h | |||||||
