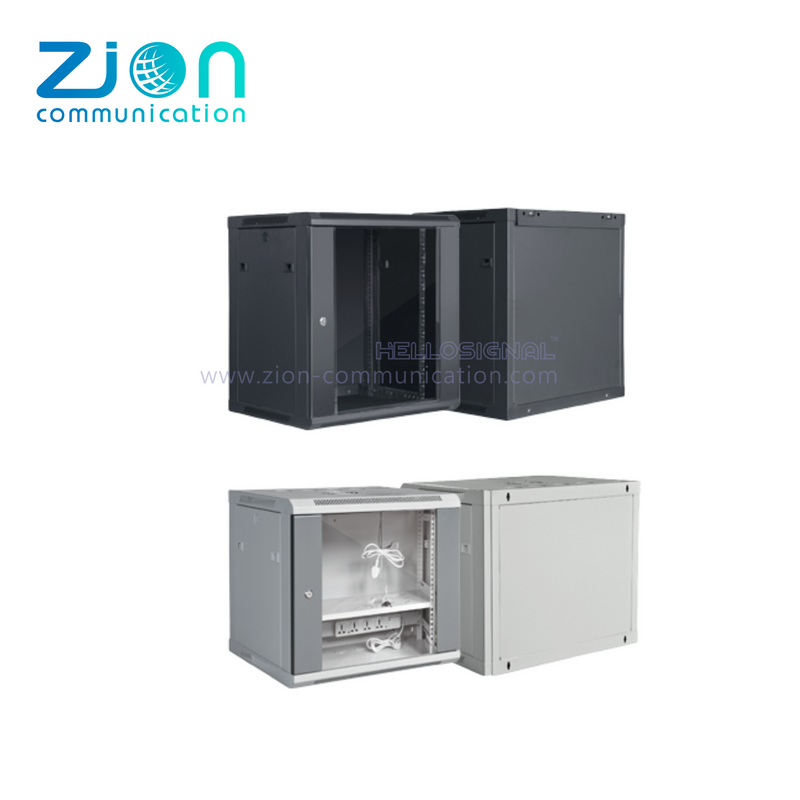

NC Wall Mount Rack Cabinet -01

Technical Data

Materials:

· SPCC high quality cold rolled steel

· Surface process: degreasing; plckling;
  phosphating; spray paint

· Thickness: Mounting profile 1.5mm;   Others 1.0-1.2mm

Colour:

· RAL9004 (black);   RAL7035(gray)

Standard

  ·Compliant with ANSI/EIA; RS-310-D; IEC297-2;
   DIN41491;PART1; DIN41494;PAR7;
   GB/T3047.2-92; ETSI. Also meets 19-inch international
   universal standards, metric standards and ETS standards

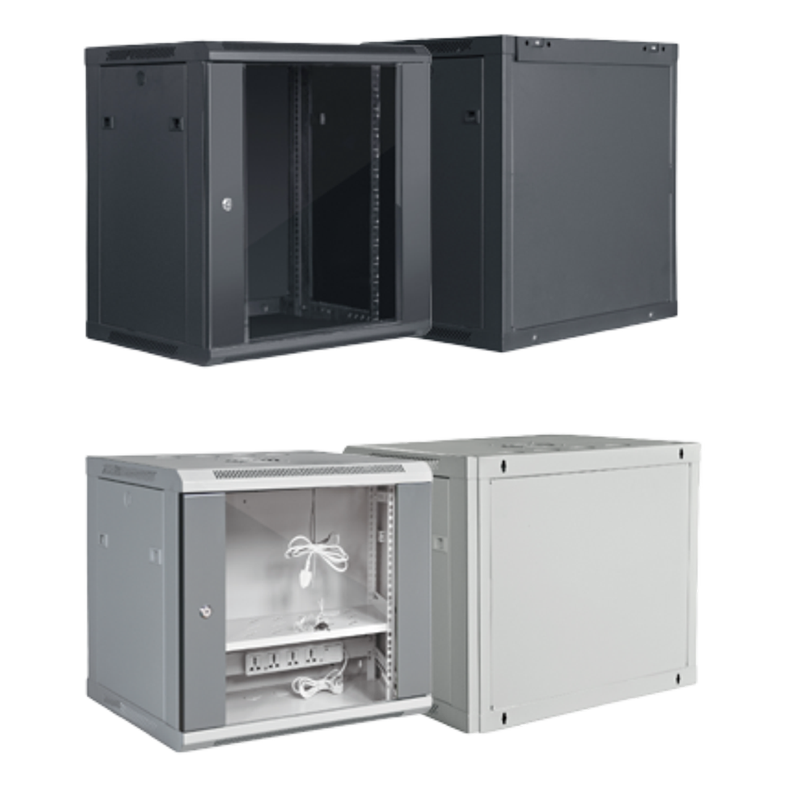

 Features

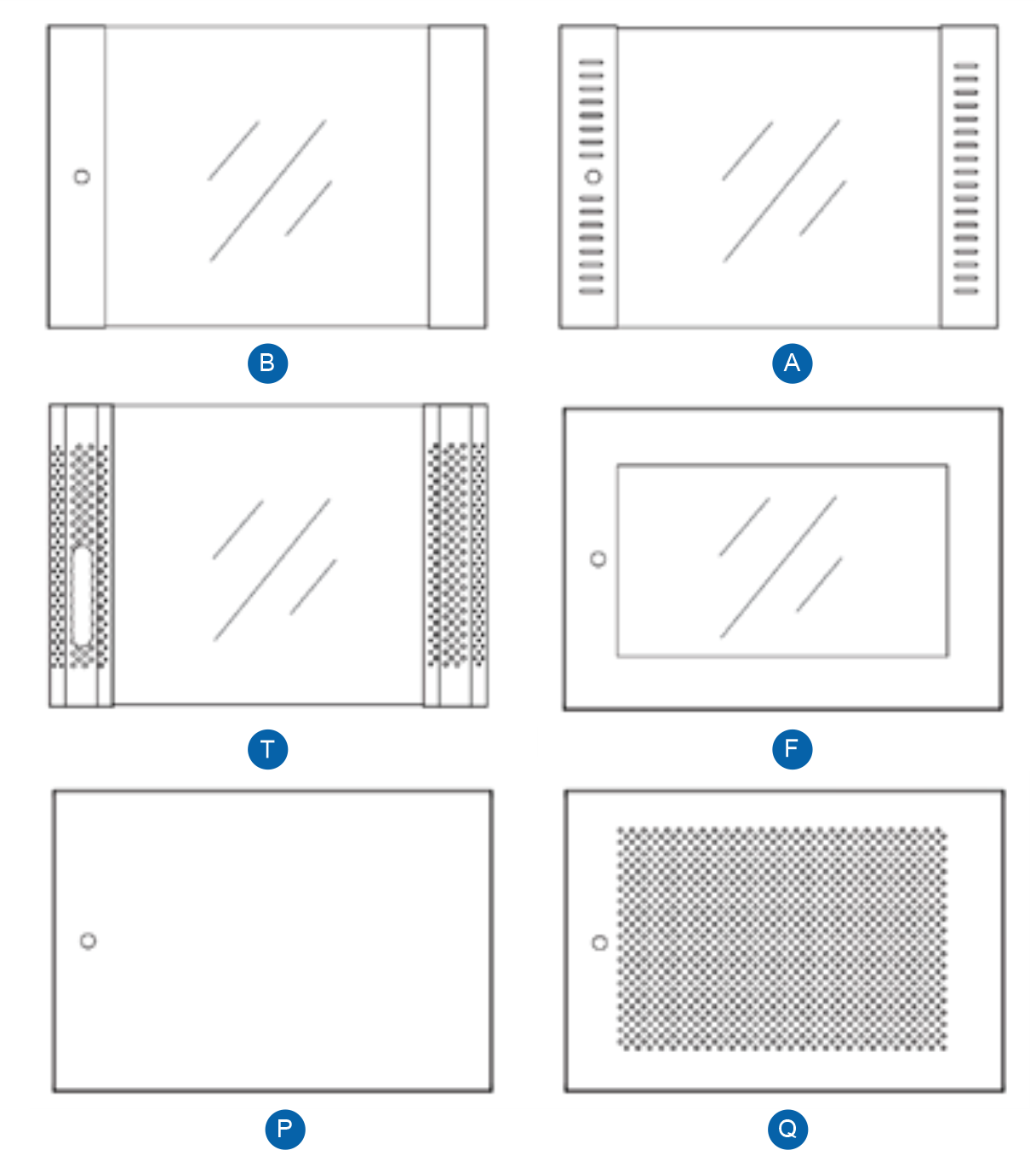

 · Single-open wall cabinet with multiple options of front door types.

 · welding structure, adapting advanced technology along, and ensureprecise dimensions.

 · Steady structure with 60KG static load.

 · Fast and simple installation conforms to 19" standard.

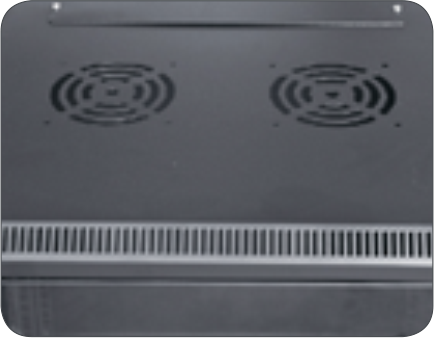

 · 120MM fans installed on the top of the cabinet.

 · The cabinet can be installed from the side,and fibers entry from thetop and bottom.

 · lP grade: lP20.

 · Flexible packaging ensures cabinet's storage and delivery.

 · Providing customized services.

Mian Install the Fitting

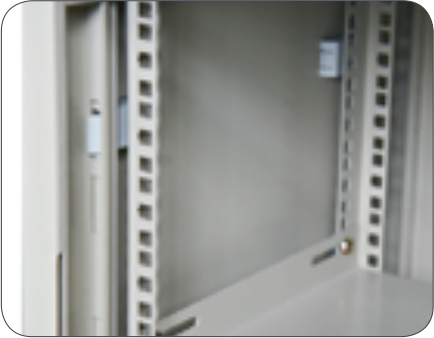

Mounting angle

Top cover

Mounting profile

Fixed shelf

Main Part

Main Part

NO.

ITEM

QTY

SPCCT
(mm)

1

Frame

1PCS

1.0

2

Mounting profile

4PCS

1.5

3

Panel

2PCS

1.0

4

Hanger

1PCS

1.5

5

Side door

2PCS

0.8

6

Metal door

1PCS(Quantity as request)

1.0

7

Toughened glass door

1PCS

1.2

8

Toughened glass door
with round vented border

1PCS(Quantity as request)

1.2

9

Toughened glass door
with round vented border

1PCS(Quantity as request)

1.0

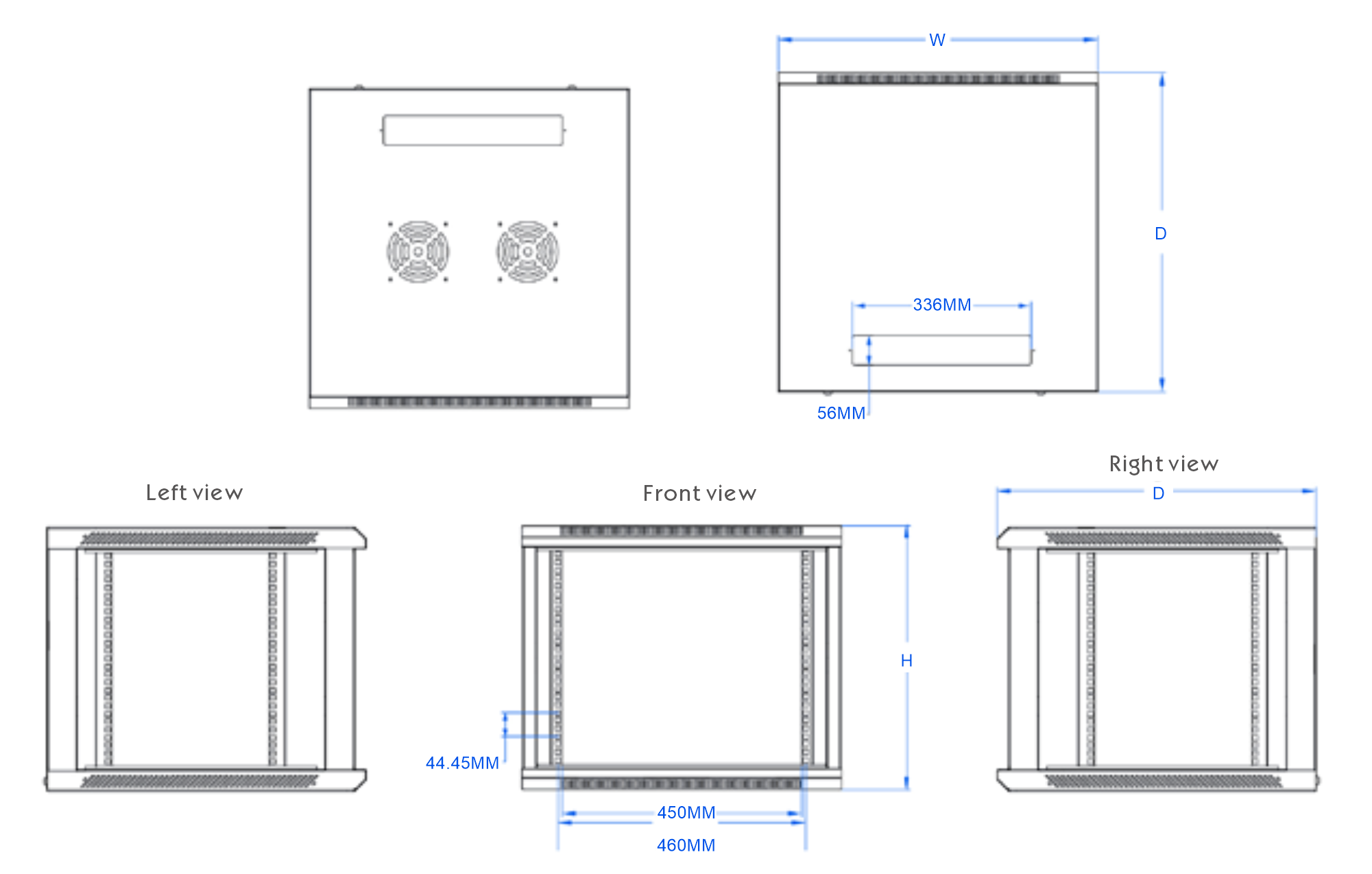

Ordering Information

Model

 Width
(mm)

Depth(D) (mm)

Height
(mm)

U

ZCNC.5404-1WMC

550

450

274

4U

ZCNC.5504-1WMC

500

ZCNC.5604-1WMC

600

ZCNC.6404-1WMC

600

450

274

4U

ZCNC.6504-1WMC

500

ZCNC.6604-1WMC

600

ZCNC.5406-1WMC

550

450

363

6U

ZCNC.5506-1WMC

500

ZCNC.5606-1WMC

600

ZCNC.6406-1WMC

600

450

363

6U

ZCNC.6506-1WMC

500

ZCNC.6606-1WMC

600

ZCNC.5409-1WMC

550

450

496

9U

ZCNC.5509-1WMC

500

ZCNC.5609-1WMC

600

ZCNC.6409-1WMC

600

450

496

9U

ZCNC.6509-1WMC

500

ZCNC.6609-1WMC

600

ZCNC.5412-1WMC

550

450

629

12U

ZCNC.5512-1WMC

500

ZCNC.5612-1WMC

600

ZCNC.6412-1WMC

600

450

629

12U

ZCNC.6512-1WMC

500

ZCNC.6612-1WMC

600

ZCNC.5415-1WMC

550

450

762

15U

ZCNC.5515-1WMC

500

ZCNC.5615-1WMC

600

ZCNC.6415-1WMC

600

450

762

15U

ZCNC.6515-1WMC

500

ZCNC.6615-1WMC

600

ZCNC.5418-1WMC

550

450

896

18U

ZCNC.5518-1WMC

500

ZCNC.5618-1WMC

600

ZCNC.6418-1WMC

600

450

896

18U

ZCNC.6518-1WMC

500

ZCNC.6618-1WMC

600

ZCNC.5422-1WMC

550

450

1073

22U

ZCNC.5522-1WMC

500

ZCNC.5622-1WMC

600

ZCNC.6422-1WMC

600

450

1073

22U

ZCNC.6522-1WMC

500

ZCNC.6622-1WMC

600

ZCNC.5427-1WMC

550

450

1295

27U

ZCNC.5527-1WMC

500

ZCNC.5627-1WMC

600

ZCNC.6427-1WMC

600

450

1295

27U

ZCNC.6527-1WMC

500

ZCNC.6627-1WMC

600

Remark: Information in the sheet refers to the height of cabinet without castor
