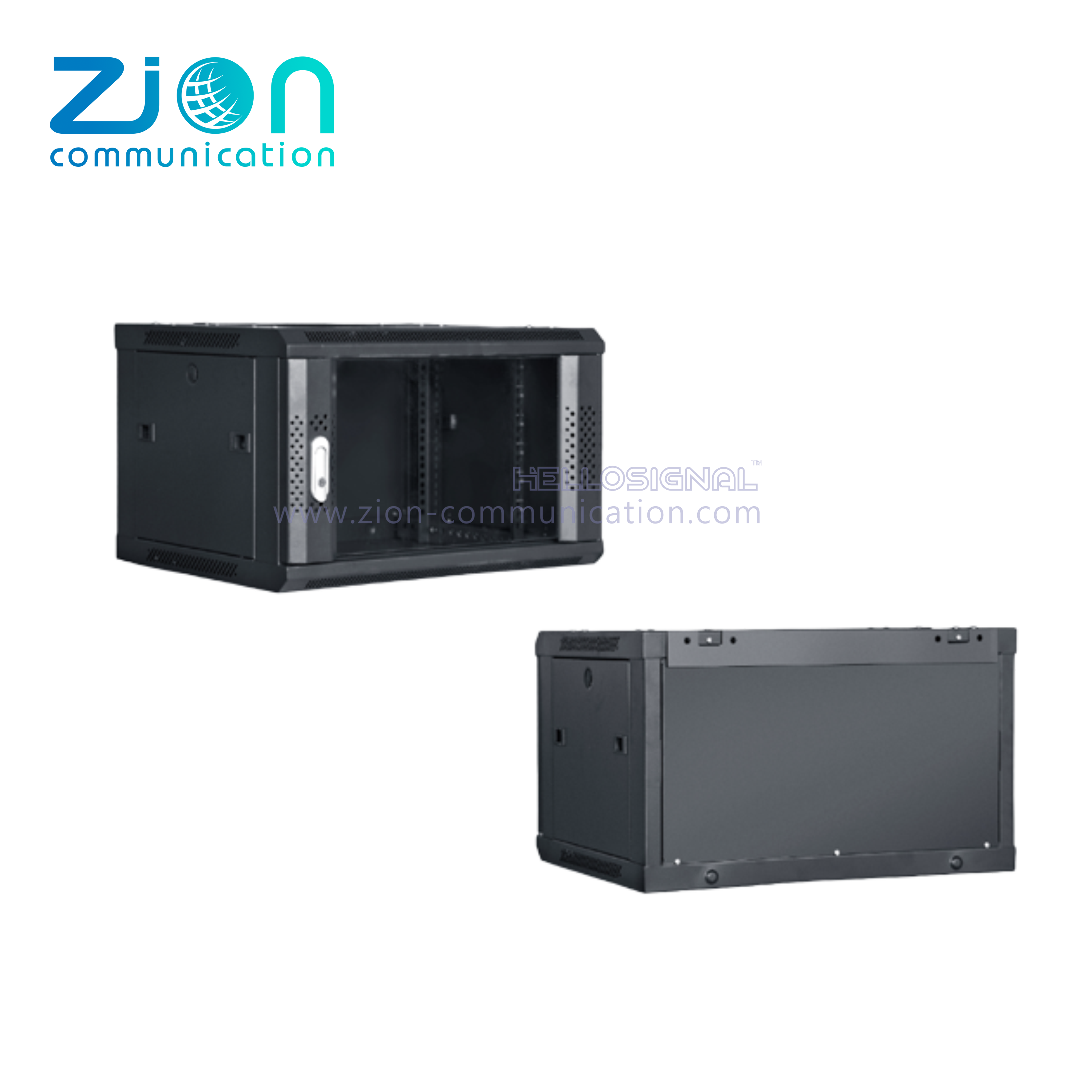

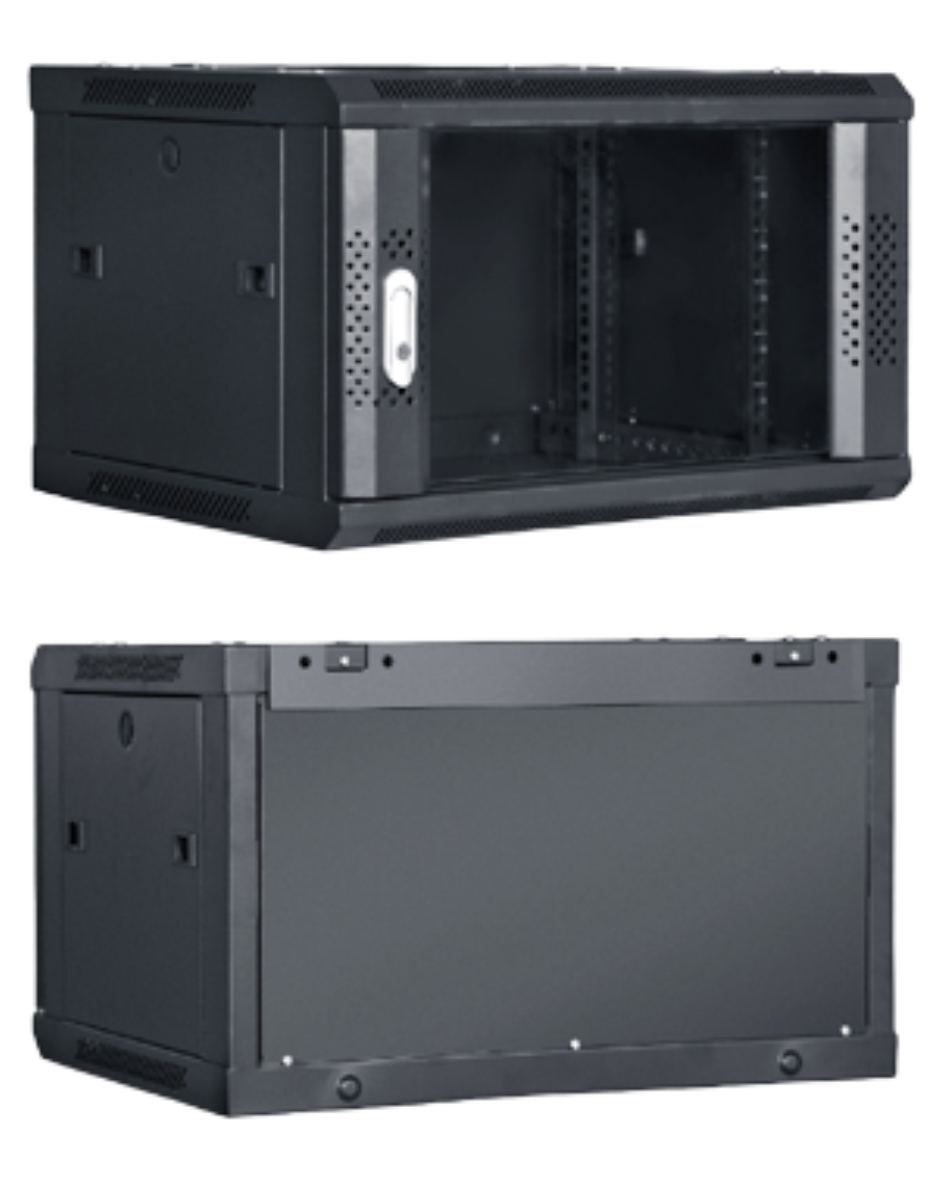

NC Wall Mount Rack Cabinet -02

Technical Data

Materials:

· SPCC high quality cold rolled steel

· Surface process: degreasing; plckling;
  phosphating; spray paint

· Thickness: Mounting profile 1.5mm; Others 1.0-1.2mm

Colour:

· RAL9004 (black);   RAL7035(gray)

Standard

· Compliant with ANSI/EIA; RS-310-D; IEC297-2;
  DIN41491;PART1; DIN41494;PAR7; GB/T3047.2-92; ETSI.
  Also meets 19-inch international universal standards,
  metric standards and ETS standards

 Features

 · Modular design wall cabinet,multiple forms of front door areavailable.

 · 19 inch single-open wall cabinet, convenient and simple installation.03

 · Steady structure with 60KG static load.

 · Front door and side door are easy assembly and disassembled.Andfibers entry from the top and bottom.

 · Available in sizes from 4U to 27U as requirements.

 · Profiles of 19”could be removed and adjusted.

 · Bulk packaging is available to save more space and freight.

Mian Install the Fitting

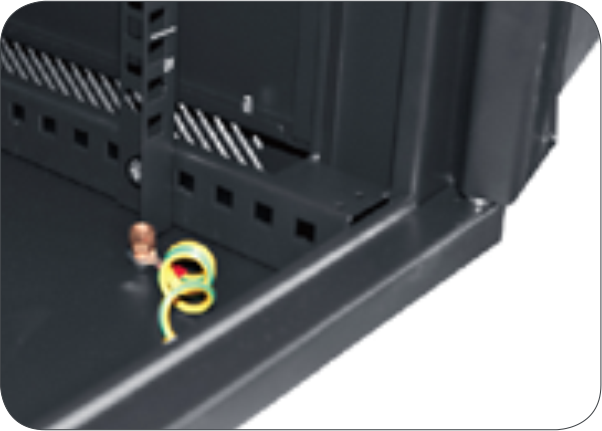

Mounting angle

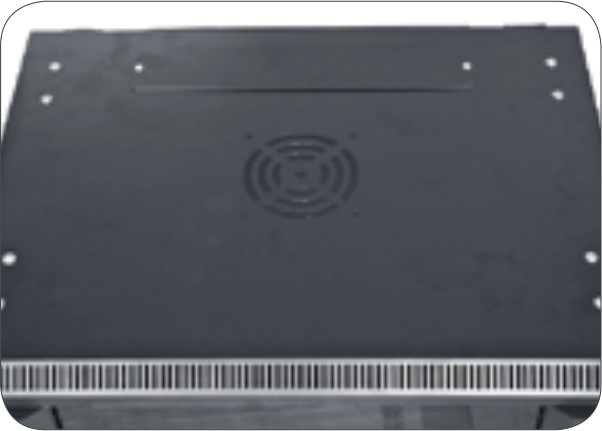

Top cover

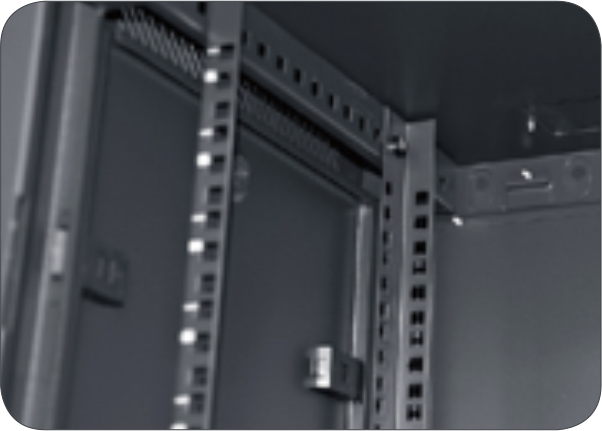

Mounting profile

Main Part

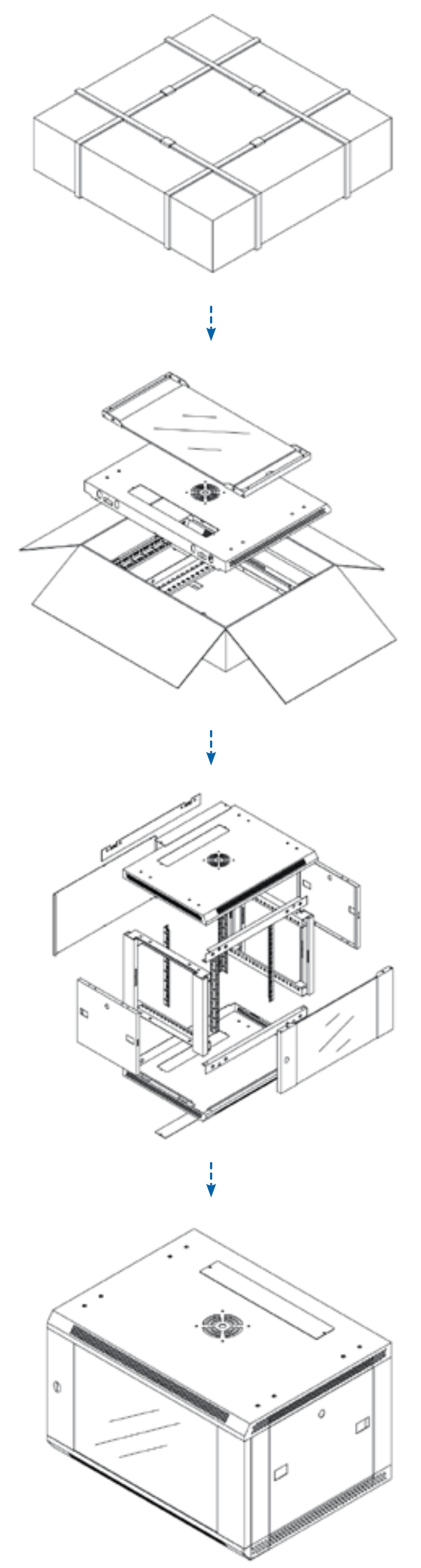

Pakeage

NO.

ITEM

QTY

SPCCT (mm)

1

Frame

2PCS

1.5

2

Top cover

1PCS

1.0

3

Bottom panel

1PCS

1.0

4

Mounting profile

4PCS

1.5

5

Supporting tray

0/2PCS

1.5

6

Panel

2PCS

1.0

7

Hanger

1PCS

1.5

8

Side panel

2PCS

0.8

9

Front  door

1PCS

1.2

10

Rear door

1PCS

1.2

Remark: 120 and above are euipped with 2 PCS  strengthen panel, while 9u and below are not equipped.

Ordering Information

Model

 Width
(mm)

Depth(D) (mm)

Height
(mm)

U

Bulk packaging
dimension Unit: M

Bulk packaging
volume unit: m²

ZCNC.6404-2WMC

600

450

274

4U

0.62x0.47x0.13

0.0379

ZCNC.6504-2WMC

500

0.62x0.57x0.13

0.0459

ZCNC.6604-2WMC

600

0.62x0.62x0.13

0.05

ZCNC.6406-2WMC

600

450

363

6U

0.62x0.47x0.13

0.0379

ZCNC.6506-2WMC

500

0.62x0.57x0.13

0.0459

ZCNC.6606-2WMC

600

0.62x0.62x0.13

0.05

ZCNC.6409-2WMC

600

450

496

9U

0.62x0.47x0.13

0.0379

ZCNC.6509-2WMC

500

0.62x0.57x0.13

0.0459

ZCNC.6609-2WMC

600

0.62x0.62x0.13

0.05

ZCNC.6412-2WMC

600

450

629

12U

0.62x0.65x0.21

0.0846

ZCNC.6512-2WMC

500

0.62x0.65x0.21

0.0846

ZCNC.6612-2WMC

600

0.62x0.65x0.21

0.0846

ZCNC.6415-2WMC

600

450

762

15U

0.62x0.78x0.21

0.1016

ZCNC.6515-2WMC

500

0.62x0.78x0.21

0.1016

ZCNC.6615-2WMC

600

0.62x0.78x0.21

0.1016

ZCNC.6418-2WMC

600

450

896

18U

0.62x0.91x0.21

0.1185

ZCNC.6518-2WMC

500

0.62x0.91x0.21

0.1185

ZCNC.6618-2WMC

600

0.62x0.91x0.21

0.1185

ZCNC.6422-2WMC

600

450

1073

22U

0.62x1.09x0.21

0.1419

ZCNC.6522-2WMC

500

0.62x1.09x0.21

0.1419

ZCNC.6622-2WMC

600

0.62x1.09x0.21

0.1419

ZCNC.6427-2WMC

600

450

1295

27U

0.62x1.31x0.21

0.1706

ZCNC.6527-2WMC

500

0.62x1.31x0.21

0.1706

ZCNC.6627-2WMC

600

0.62x1.31x0.21

0.1706
