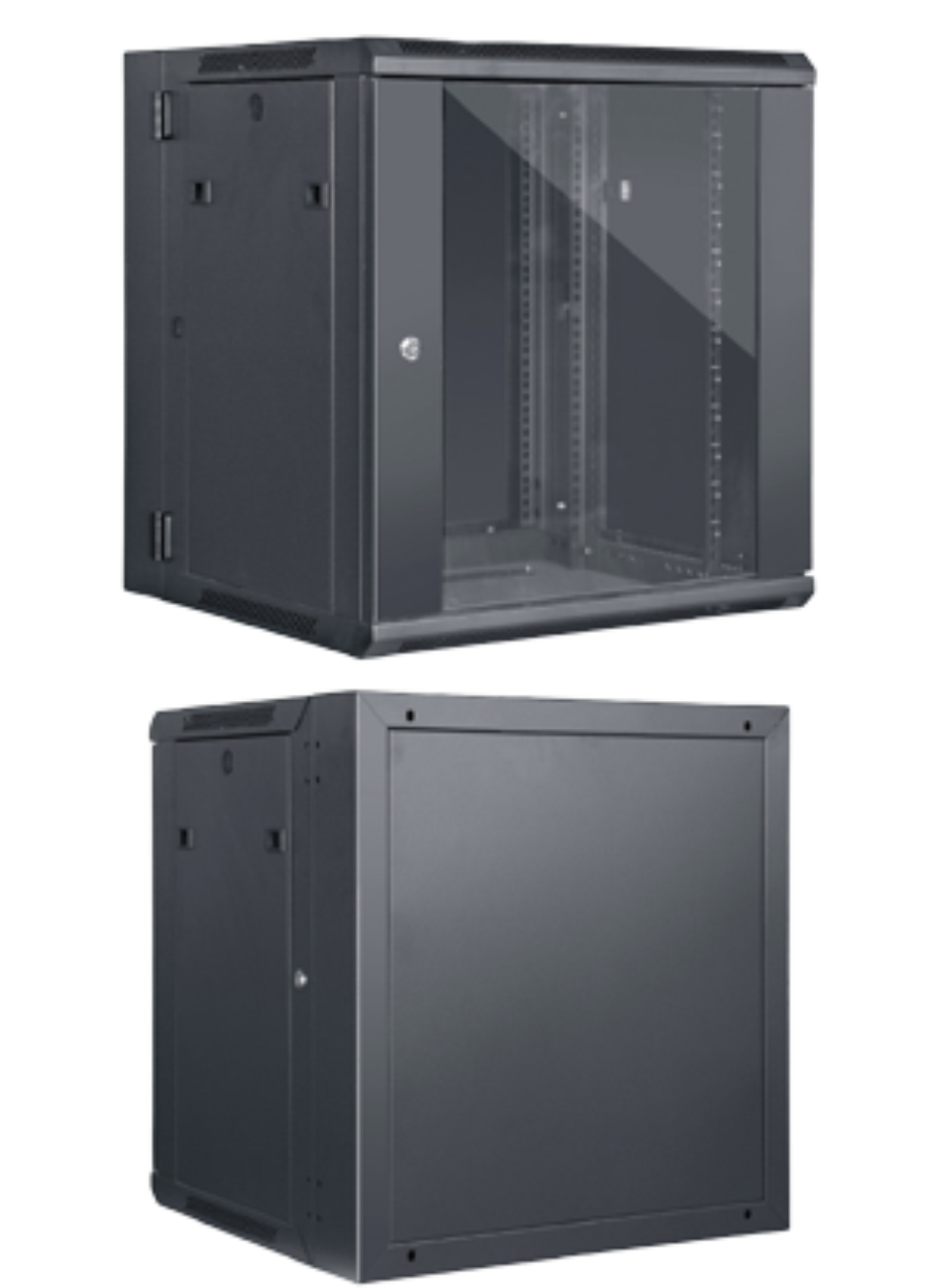

NC Wall Mount Rack Cabinet -03

Technical Data

Materials:

· SPCC high quality cold rolled steel

· Surface process: degreasing; plckling; phosphating; spray paint

· Thickness: Mounting profile 1.5mm;   Others 1.0-1.2mm

Colour:

· RAL9004 (black);   RAL7035(gray)

Standard

  ·Compliant with ANSI/EIA; RS-310-D; IEC297-2;
   DIN41491;PART1; DIN41494;PAR7;
   GB/T3047.2-92; ETSI. Also meets 19-inch international
   universal standards, metric standards and ETS standards

 Features

 · Double-open wall cabinet, when opening, the angle between twodoors is 120° ,
   as for the front door is 180°

 · Steady structure with 60KG static load.

 · Fast and simple wall installation, standard 19"internal installation.

 · Hinges of the back door are black load-bearing type.

 · 120mm fans mounted on the top of cabinet.

 · Fibers entry from the top and bottom.

 · lP grade: lP20.

 · Flexible packaging ensures cabinet's storage and delivery.

 · Bulk packaging is available to save more space and freight.

 · Providing customized services.

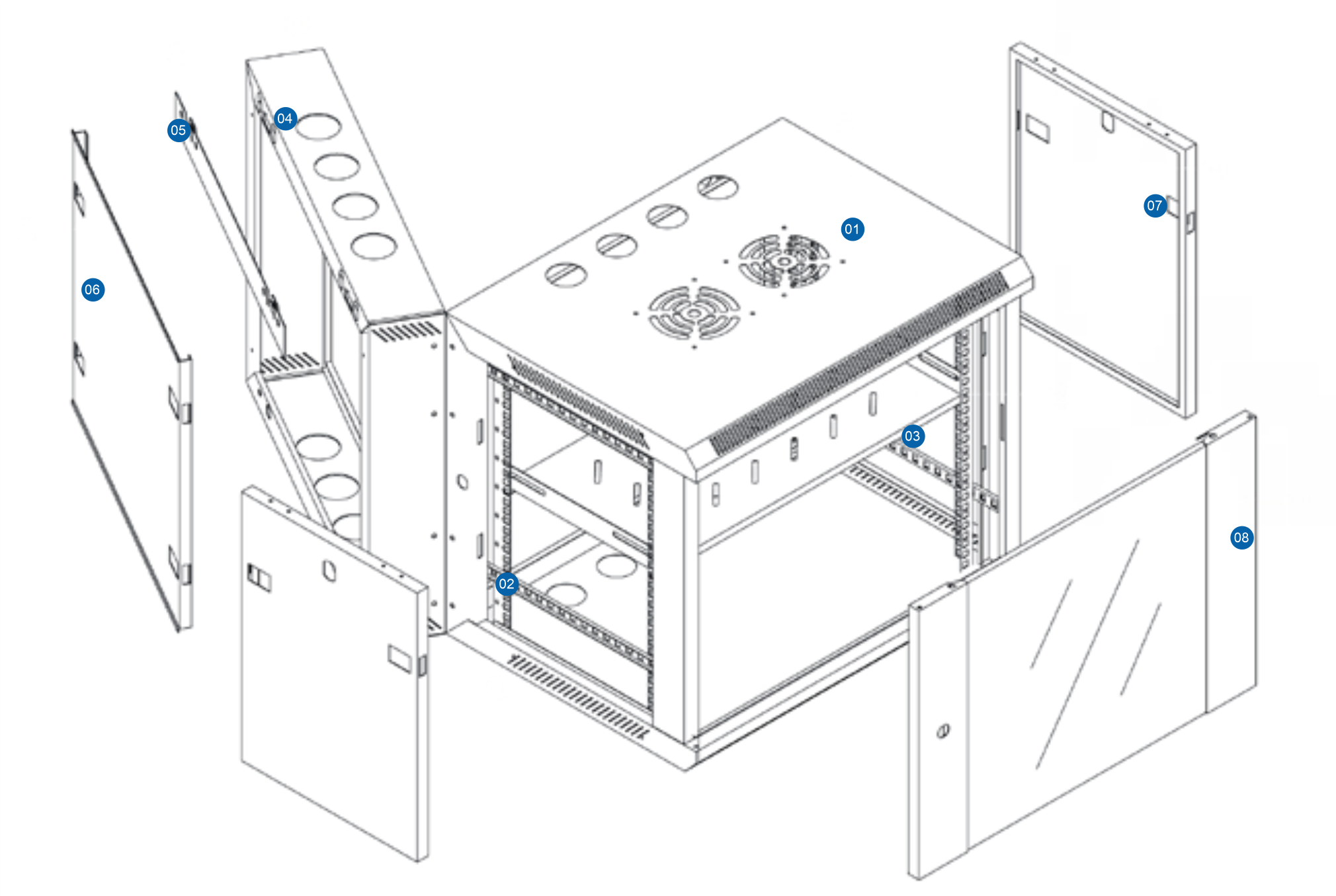

Mian Install the Fitting

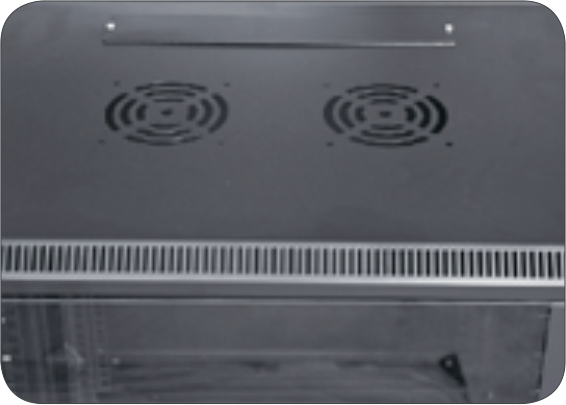

Top cover

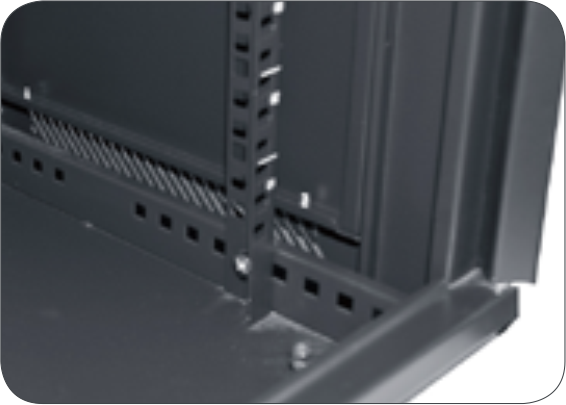

Mounting profile

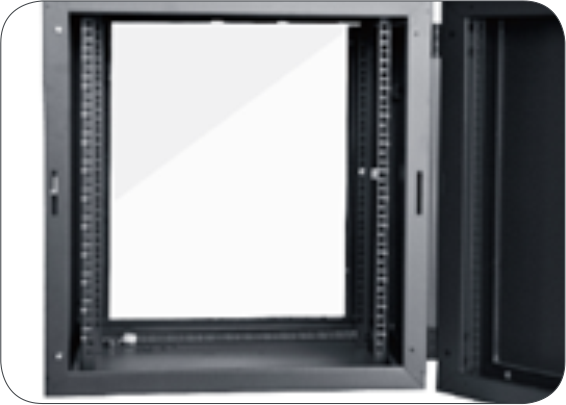

Back

Main Part

NO.

ITEM

QTY

SPCCT (mm)

1

Frame

1PCS

1.0

2

Mounting profile

4PCS

1.5

3

Fixed shelf

2PCS

1.0

4

Back box

1PCS

1.5

5

Hanger

2PCS

0.8

6

Back panel

1PCS(Quantity as request)

1.0

7

Side panel

1PCS

1.2

8

Tempered glass door

1PCS(Quantity as request)

1.2

Ordering Information

Model

 Width
(mm)

Depth(D) (mm)

Height
(mm)

U

ZCNC.6504-3WMC

600

450+100

274

4U

ZCNC.6604-3WMC

500+100

ZCNC.6506-3WMC

600

450+100

363

6U

ZCNC.6606-3WMC

500+100

ZCNC.6509-3WMC

600

450+100

496

9U

ZCNC.6609-3WMC

500+100

ZCNC.6512-3WMC

600

450+100

629

12U

ZCNC.6612-3WMC

500+100

ZCNC.6515-3WMC

600

450+100

762

15U

ZCNC.6615-3WMC

500+100

ZCNC.6518-3WMC

600

450+100

892

18U

ZCNC.6618-3WMC

500+100
