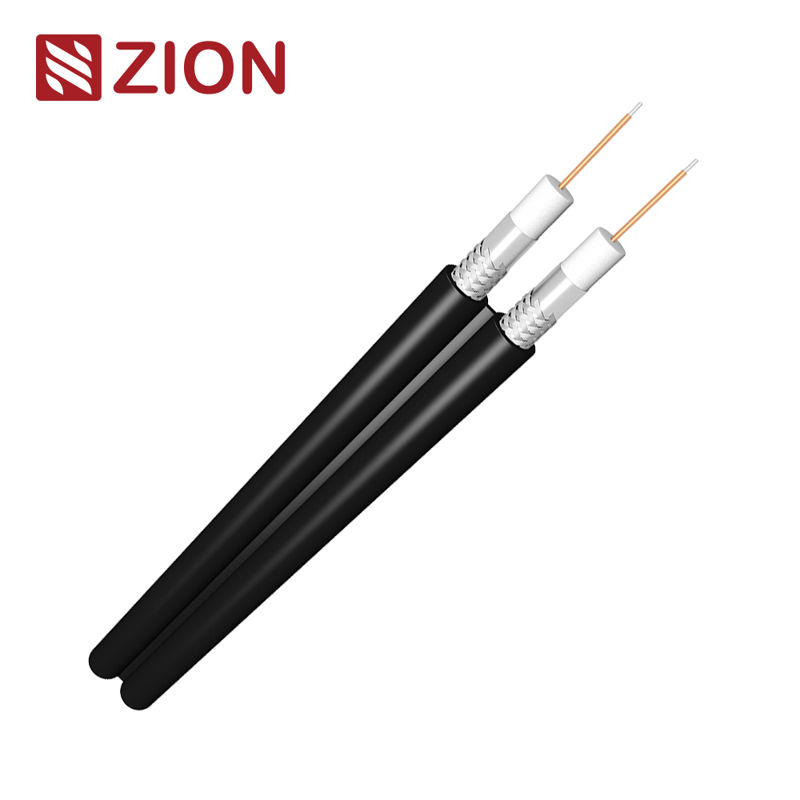

NO.7100041 RG6 S Dual 60% Jelly PE

  • RG6 Dual

  • hellosignal

  • 7100041

  • Coaxial Cable

  • 75 ohm

  • UL, ETL, CE, RoHS

  • 100m, 305m,500m,1000m,500ft,1000ft

  • roll, wooden spool, carton, pallet

  • 30KM

  • Normally 15 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

zion LOGORG6 S Dual 60% Jelly PE
75 Ohm CATV coaxial Cable

NO.7100041

Construction Parameters:

Inner Conductor

0.040"/1.02mm/18AWG CCS

Dielectric

0.180"/4.57mm Foamed PE

Shield 1

0.187"/4.75mm Bonded Aluminum Polyproylene

Shield 2

Aluminum braid wire 60% coverage

Jacket

0.268"±0.006"/6.81±0.15mm Jelly PE

Jacket Thickness

0.030"/0.76mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance


The Max. at 20 shall be <  87 Ω/km

26.6Ω/1000ft

Capacitance

52 ±3 pF/m           15.9 ±0.9 pF/ft


Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4










Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20  to 60

Cable diamensions

0.268"±0.006"/6.81±0.15mm PE

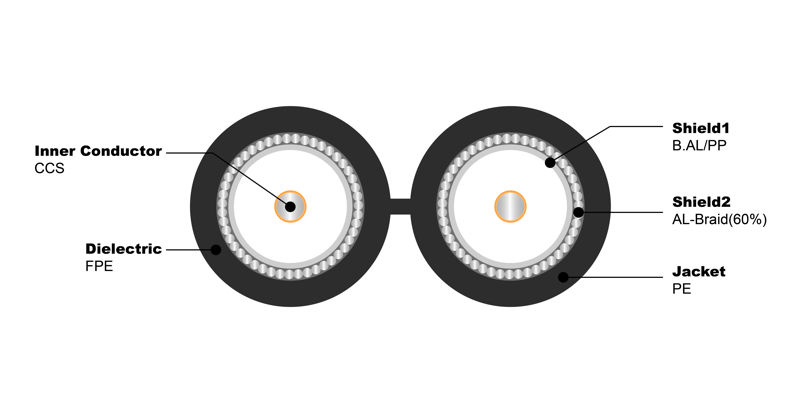

Cross Section


Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.58

1.90

55

1.60

5.25

83

1.95

6.40

187

2.85

9.35

211

3.05

10.00

250

3.30

10.82

300

3.55

11.64

350

3.85

12.63

400

4.15

13.61

450

4.40

14.43

500

4.66

15.29

550

4.90

16.08

600

5.10

16.73

750

5.65

18.54

865

6.10

20.01

1000

6.55

21.49


Order Informations:

Marking

HELLOSIGNAL  RG6 S Dual 60% Jelly PE
CATV COAXIAL CABLE 7100041 ×××M/FT

Package

Inquired Length on Reel,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
