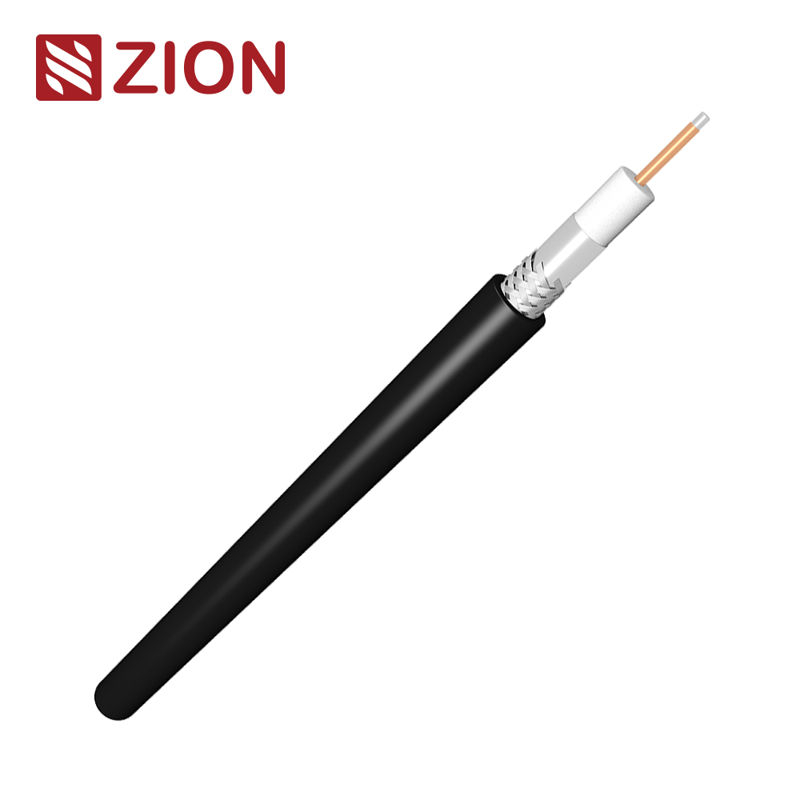

NO.7100204 RG11 S 60% PVC CM

Construction Parameters:

Inner Conductor

0.064"/1.63mm/14AWG CCS

Dielectric

0.280"/7.11mm Foamed PE

Shield 1

0.287"/7.29mm Bonded Aluminum PET

Shield 2

Aluminum braid wire 60% coverage

Jacket

0.400"±0.006"/10.16±0.15mm PVC CM

Jacket Thickness

0.042"/1.07mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <  38 Ω/km

<  11.59 Ω/1000ft

Capacitance

52 ±3 pF/m    15.85 ±1 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

0.40''±0.006''/10.21±0.15 mm PVC

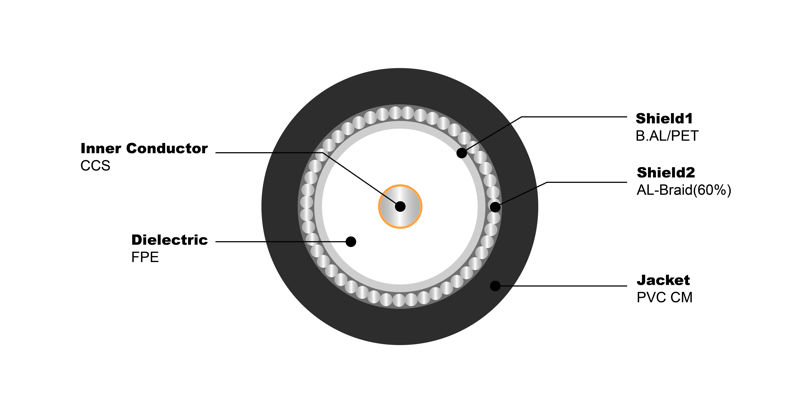

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.38

1.25

55

0.96

3.15

83

1.18

3.87

187

1.75

5.74

211

1.90

6.23

250

2.05

6.72

300

2.25

7.38

350

2.42

7.94

400

2.60

8.53

450

2.75

9.02

500

2.90

9.51

550

3.04

9.97

600

3.18

10.43

750

3.65

11.97

865

3.98

13.05

1000

4.35

14.27

Order Informations:

Marking

HELLOSIGNAL RG11 S 60% PVC CM

CATV COAXIAL CABLE 7100204 ×××M/FT

Package

Inquired Length on Reel,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
