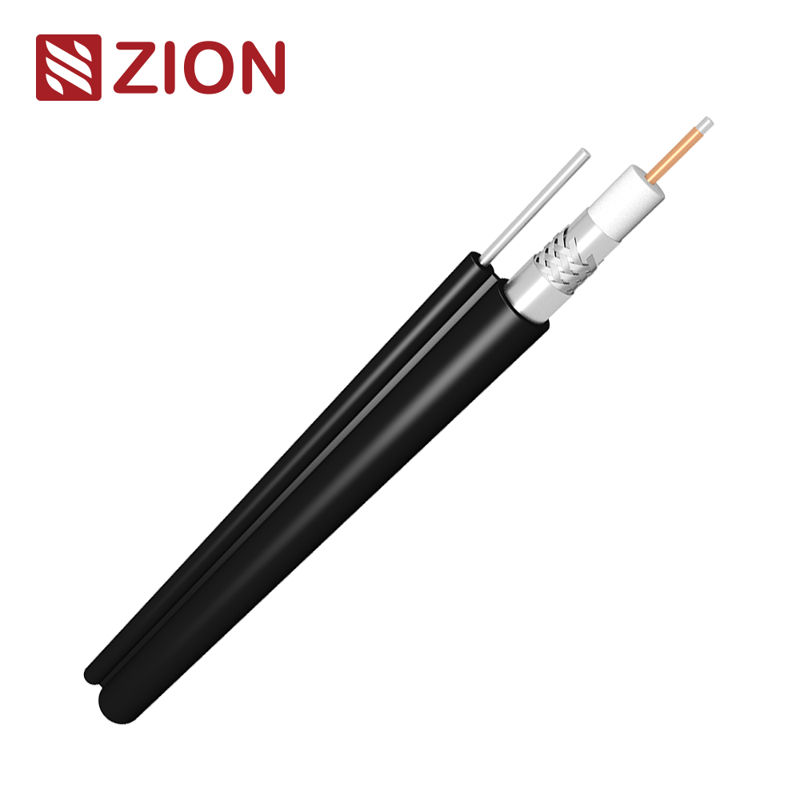

NO.7100226 RG11 Tri 60% PVC Messenger

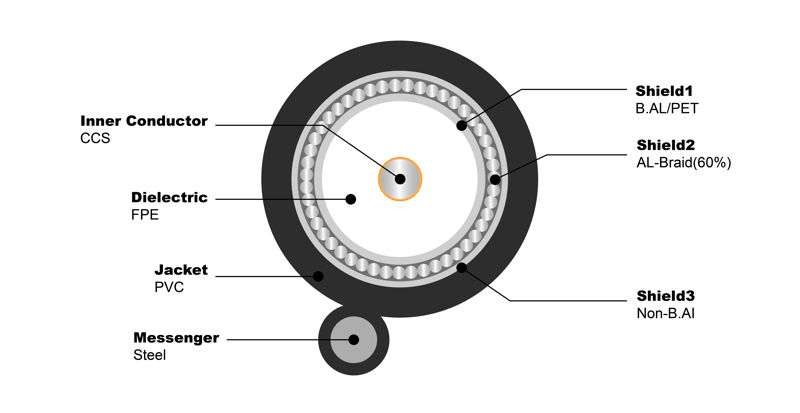

Construction Parameters:

Inner Conductor

0.064"/1.63mm/14AWG CCS

Dielectric

0.280"/7.11mm Foamed PE

Shield 1

0.287"/7.29mm Bonded Aluminum PET

Shield 2

Aluminum braid wire 60% coverage

Shield 3

Aluminum Laminated Tape(Non-bonded)

Jacket

0.400"±0.006"/10.16±0.15mm PVC

Jacket Thickness

0.039"/0.99mm

Messenger

0.072"/1.83mm

Minimum Breaking Strength

365lbs./166kg

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <  38 Ω/km

<  11.59 Ω/1000ft

Capacitance

52 ±3 pF/m    15.85 ±1 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

0.40''±0.006''/10.21±0.15 mm PVC

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.38

1.25

55

0.96

3.15

83

1.18

3.87

187

1.75

5.74

211

1.90

6.23

250

2.05

6.72

300

2.25

7.38

350

2.42

7.94

400

2.60

8.53

450

2.75

9.02

500

2.90

9.51

550

3.04

9.97

600

3.18

10.43

750

3.65

11.97

865

3.98

13.05

1000

4.35

14.27

Order Informations:

Marking

HELLOSIGNAL RG11 S 60%PVC Messenger

CATV COAXIAL CABLE 7100226 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
