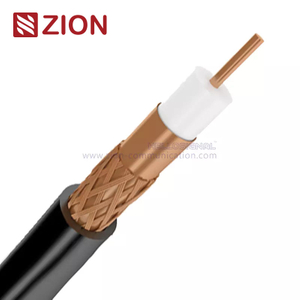

Паракс РК 75-3-313 нг(А)
hellosignal
7100343
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
75 Ohm CCTV coaxial Cable NO.7100343 | |||
Construction Parameters: | |||
Inner Conductor | 0.024"/0.60mm/22 AWG BC | ||
Dielectric | 0.144"/2.70mm FPE | ||
Shield 1 | Cu/Pet Foil | ||
Shield 2 | Copper clad aluminum braid wire 65% coverage | ||
Jacket | 0.170"±0.006"/4.50±0.30mm LSZH | ||
Jacket Thickness | 0.032"/0.81mm | ||
Application | For Use in Longer CCTV Run Lengths | ||
Electrical Characteristics: | |||
Inner Conductor Resistance | The Max. at 20℃ shall be < 63Ω/km | ||
Capacitance | 56.5±1 pF/m | ||
Impedance | 75±5 Ω | ||
Return loss | between 5 and 1000MHz: > 20dB | ||
Velocity of Propagation | 0.82 | ||
Sparker Test (VAC) | |||
Mechanical and Envrionmental Properties | |||
Cable bend radius | 10 times the cable diameter | ||
Operating Temp Range | -20 ℃ to 60℃ | ||
Cable diamensions | 0.130"±0.006"/3.30±0.30mm LSZH | ||
Cross Section | |||
| |||
Attenuation(20℃): | |||
Frequency (MHZ) | Max Attenuation(dB/100m) | ||
10 | 3.36 | ||
50 | 7.05 | ||
200 | 14.30 | ||
470 | 22.50 | ||
862 | 30.30 | ||
1000 | 32.80 | ||
1350 | 39.40 | ||
1750 | 45.20 | ||
2150 | 50.40 | ||
2400 | 53.50 | ||
Order Informations: | |||
Marking | HELLOSIGNAL PK75-3-313 нг(А)-HF BC 65% CCA LSZH CCTV COAXIAL CABLE 7100343 ×××M/FT | ||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
Delivery time | Normally 25 days after received the deposit. | ||
Brand | HELLOSIGNAL® OR OEM | ||
75 Ohm CCTV coaxial Cable NO.7100343 | |||
Construction Parameters: | |||
Inner Conductor | 0.024"/0.60mm/22 AWG BC | ||
Dielectric | 0.144"/2.70mm FPE | ||
Shield 1 | Cu/Pet Foil | ||
Shield 2 | Copper clad aluminum braid wire 65% coverage | ||
Jacket | 0.170"±0.006"/4.50±0.30mm LSZH | ||
Jacket Thickness | 0.032"/0.81mm | ||
Application | For Use in Longer CCTV Run Lengths | ||
Electrical Characteristics: | |||
Inner Conductor Resistance | The Max. at 20℃ shall be < 63Ω/km | ||
Capacitance | 56.5±1 pF/m | ||
Impedance | 75±5 Ω | ||
Return loss | between 5 and 1000MHz: > 20dB | ||
Velocity of Propagation | 0.82 | ||
Sparker Test (VAC) | |||
Mechanical and Envrionmental Properties | |||
Cable bend radius | 10 times the cable diameter | ||
Operating Temp Range | -20 ℃ to 60℃ | ||
Cable diamensions | 0.130"±0.006"/3.30±0.30mm LSZH | ||
Cross Section | |||
| |||
Attenuation(20℃): | |||
Frequency (MHZ) | Max Attenuation(dB/100m) | ||
10 | 3.36 | ||
50 | 7.05 | ||
200 | 14.30 | ||
470 | 22.50 | ||
862 | 30.30 | ||
1000 | 32.80 | ||
1350 | 39.40 | ||
1750 | 45.20 | ||
2150 | 50.40 | ||
2400 | 53.50 | ||
Order Informations: | |||
Marking | HELLOSIGNAL PK75-3-313 нг(А)-HF BC 65% CCA LSZH CCTV COAXIAL CABLE 7100343 ×××M/FT | ||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
Delivery time | Normally 25 days after received the deposit. | ||
Brand | HELLOSIGNAL® OR OEM | ||
PK75-3-313 нг(А)-HF BC 65% CCA LSZH
