KX6
hellosignal
7102074
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
KX6+2×0.75 PVC - Common（NO.7102074） | ||
Construction Parameters: | ||
Inner Conductor: | 7 × 0.20mm Bare Copper | |
Insulation: | 3.70mm SPE | |
Shield: | 128 x 0.12mm CCA (95%) | |
Jacket: | 6.00mm PVC Green | |
Power Wire Conductor: | 2 x 24/0.20mm = 0.75mm2 CCA | |
Power Wire Insulation: | 2.00mm PVC in Red & Black | |
Outer Jacket: | 8.50mm PVC Green | |
Electrical Characteristics: | ||
Inner Conductor Resistance | 87.5Ω/KM at 20℃ | |
Capacitance | 67 ±3 pF/m | |
Impedance | 75 ± 3 Ω | |
Return Loss | between 5 and 1000MHz: > 22dB | |
Velocity of Propagation | 0.85 | |
Sparker Test (VAC) | 4 | |
Mechanical and Envrionmental Properties: | ||
Cable Bend Radius | 10 times the cable diameter | |
Operating Temperature Range | -20 ℃ to +60℃ | |

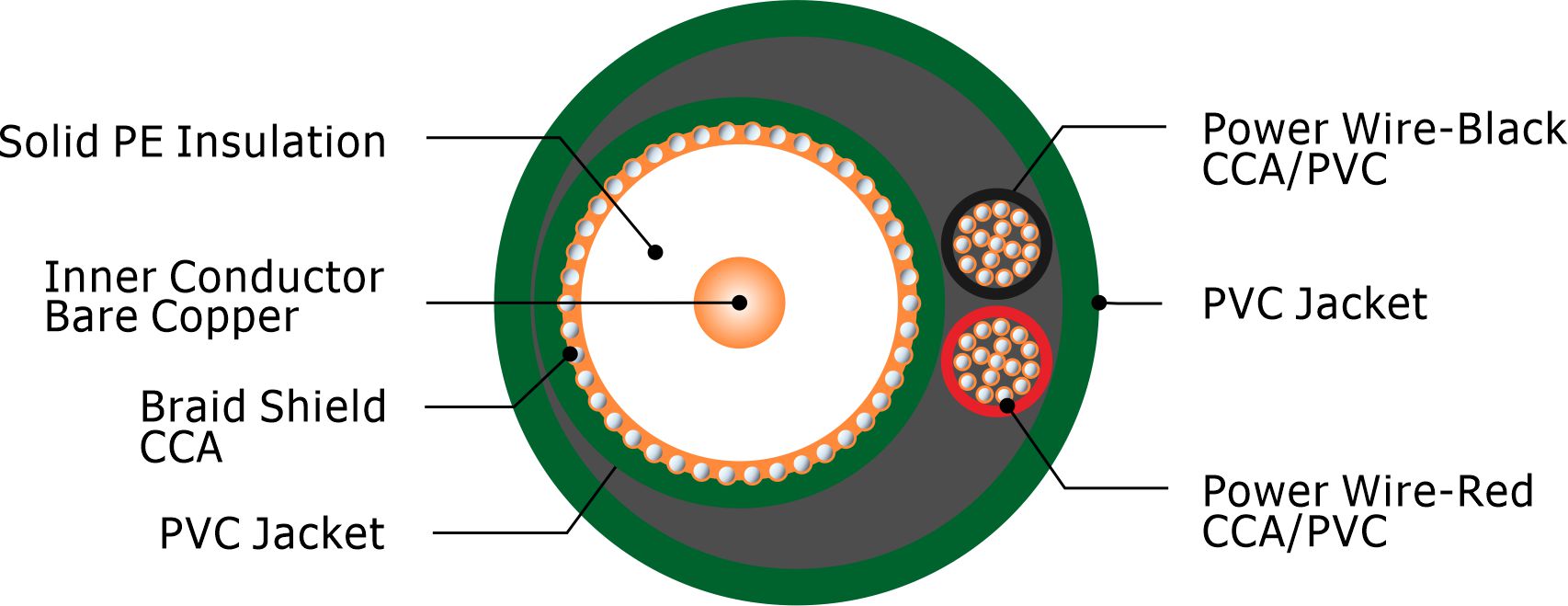

Cross Section: | ||
| ||
Attenuation (20℃): | ||
Frequency (MHZ) | Max Attenuation (dB/100m) | |
10 | 5.00 | |
50 | 8.10 | |
100 | 13.00 | |
200 | 18.50 | |
400 | 22.50 | |
850 | 34.50 | |
950 | 37.50 | |
1000 | 45.00 | |
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||
Order Informations: | ||
Marking | HELLOSIGNAL KX6+2×0.75mm2 Common CCTV CABLE ...305M | |
Inner Package | 300M or 500M/Wooden Spool/Carton | |
Delivery time | Normally 25 days after received the deposit payment. | |
Brand | HELLOSIGNAL® OR OEM | |
Online Service: | ||
Skype | kingtone3 | |
0086 18268009191 | ||
