NO.7102214 КВК-П-2Э+2х0.75+ support wire

Construction Parameters:

Inner Conductor

0.37mmCu

Dielectric

2.3mm Solid Polyethylene

Shield

32×0.12mmCCA(45%)

Jacket

3.8mm PVC

Power Wire Conductor

2x(16x0.25mmCCA )

Power wire Diameter of insulation

2.0mm PVC (Red,Black)

Jacket

7.3mm PE Common

Messenger

1.3mm steel support wire

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                         Resistance

The Max. at 20℃ shall be <  166.48 Ω/km

Capacitance

68±1 pF/m

Impedance

75±5 Ω

Return loss

20dB

Velocity of Propagation

0.66

Sparker Test (VAC)

3

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

7.3mm

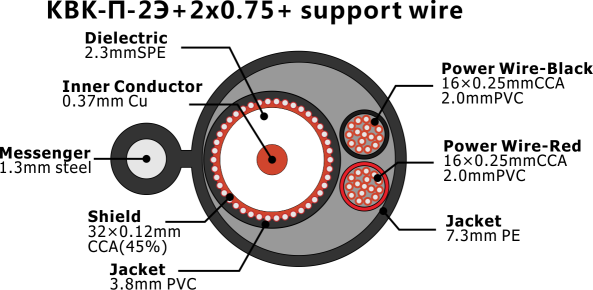

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

3.69

50

11.62

100

16.50

300

28.42

450

34.81

865

48.25

1000

51.88

1750

68.62

2150

76.06

2500

82.01

3000

89.84

Order Informations:

Marking

HELLOSIGNAL КВК-П-2Э+2х0.75+ support wire
CCTV COAXIAL CABLE 7102214 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
