NO.7110162 18AWG 2/C SOL Shielded FPL-CL2 Fire Alarm Cables

Cable construction :

Conductor:

18 AWG Solid Bare Copper

Nom.Dia:0.04''(1.02mm)

Dielectric:

Type: FPL-PVC

Dia.over Dielectric: 0.060±0.004''nom.(1.52mm±0.10mm)

Drain Wire: 0.51mm Solid Tinned-Copper

Shield :0.001"(0.025mm) thick Aluminum/Mylar

Color Code:

1.Blk

2.Red

Jacket:

Type: FPL-PVC

Color: Red

Dia.over Jacket: 0.154"±0.006''(3.91±0.15mm)

Print Legend:

HELLOSIGNAL NO.7110162 18AWG 2C 60C E××××××(UL) Shielded FPL-CL2

SUN RES(ROHS) ××××M/FT DEVICE/ZONE

A B C D E F 1 2 3 4 5 6 7 8 9

Electrical Properties :

Temperature Rating

-20℃ ~ +60℃

Operating Voltage

300 Volts max

Capacitance

42 pf/ft nom

Impedance

36 Ohms nom

DC Resistance

6.5 Ohms/M' at 20℃

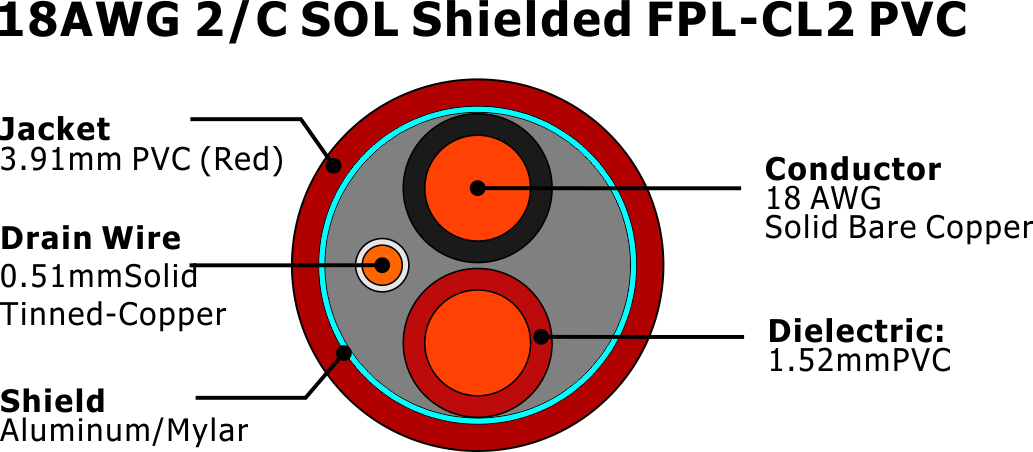

Cross Section :

Order Informations :

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL ®OR OEM
