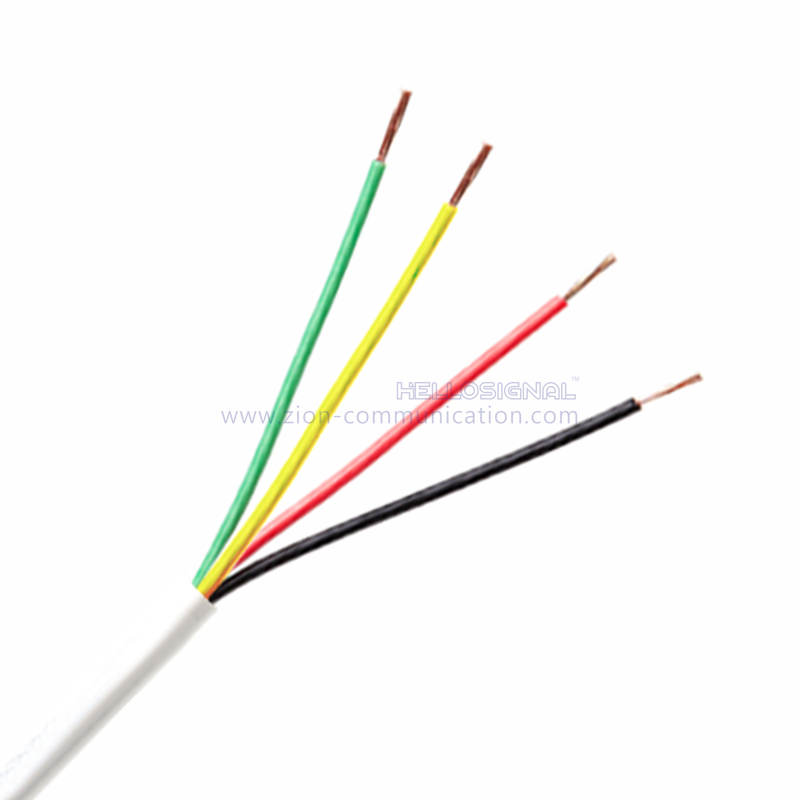

Security Cable unshielded
hellosignal
7111102
security alarm cable
UL, ETL, CE,CPR, RoHS
100m,305m,500m,500ft,1000ft
pull box, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Product Description
4×0.22mm² STR-U | ||||
Cable construction : | ||||
Conductor: |
| |||
4 x (7/0.20mm TC/BC/CCA/TCCA) | ||||
Dielectric: | ||||
Type: PVC | ||||
Diameter: 0.95mm | ||||
Color Code: | ||||
1.Blk | 2.Red | 3.Ylw | 4.Grn | |
Rip Cord | ||||
Cotton Wire | ||||
Jacket: | ||||
Type: PVC | ||||
Diameter: 3.50mm | ||||
Electrical Properties : | ||||
Temperature Rating | （-20℃ ~ +60℃） | |||
Operating Voltage | 300 Volts max | |||
Capacitance | 15pf/ft nom. | |||
Impedance | 100 Ohms nom. | |||
DC Resistance | 16.5 Ohms/M' at 20℃ | |||
Print Legend: | ||||
HELLOSIGNAL NO.7111102 0.22mm² 4C Unshielded Security Alarm Cable ××× M | ||||
Cross Section : | ||||
| ||||
Order Informations : | ||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,Wooden Spool,Pallet … | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNALTM OR OEM | |||
Production Process Flow
