SF/UTP CAT6
hellosignal
7112225
CAT6
100 ohm
UL, ETL, CE,CPR, RoHS
100m,305m,500m,500ft,1000ft
pull box, wooden spool, carton, pallet
30KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Availability: | |
---|---|

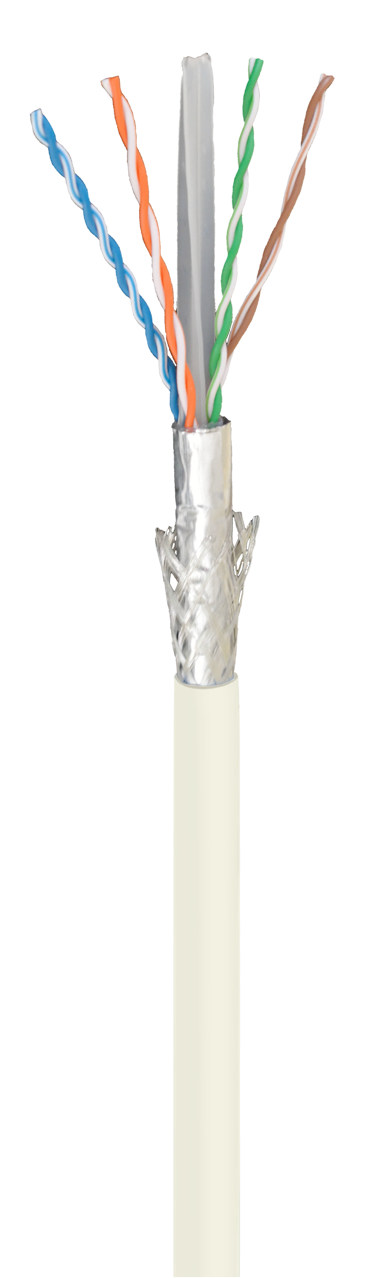

SF/UTP CAT 6 CABLE-UL CMP | ||||||||
Key Information & Construction | ||||||||
SKU: 7112225-FC | FEP CROSSWEB |
| ||||||
SKU: 7112225-LC | LSZH CROSSWEB | |||||||
UL Certificate Number: | E541136 | |||||||
Standards: | UL 444 & CSA C22.2 No.214 | |||||||
Conductor Material: | Solid Bare Copper | |||||||
Conductor Size: | 23AWG/ 0.023" / 0.585±0.005mm | |||||||
Pairs: | 4 Pairs | |||||||
Insulation: | 0.0433" / 1.10±0.05 mm FEP | |||||||
Insulation Colors: | Blue-White/Blue,Orange-White/Orange | |||||||
Green-White/Green,Brown-White/Brown | ||||||||
Spline/Cross Separator | FEP or LSZH CROSSWEB | |||||||
Shielded 1 | Aluminium poly laminate | |||||||
Shielded 2 | Tinned Copper Braiding 40% Coverage | |||||||
Drain Wire | 24 AWG Solid Tinned Copper | |||||||
Rip Cord: | Kevlar | |||||||
Out Jacket: | Material: Plenum PVC | |||||||
Wall Thickness: 0.0157". Nom(0.4mm) | ||||||||
OD:0.291"±0.012“ (7.4±0.3mm) | ||||||||

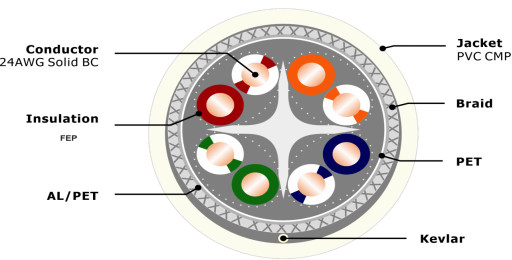

Cross Section | ||||||||
| ||||||||
Application Support | ||||||||
· 1000BASE-T 、 1000BASE-TX、100BASE-T 、 100BASE-TX、100VG-AnyLAN、ATM | ||||||||
· 1Volp、ISDN、 Token、 100MTPPDM、 Analogand Datavideo、 POE Type1,2,3,4 | ||||||||
Electrical Characteristics | ||||||||
DC Resistance | <9.38 Ohms/100m @20℃ | |||||||
DC Resistance unbalance | 5% @ 20℃ | |||||||
Mutual Capacitance | 5.6 nF/100m | |||||||
Characteristic Impedance | 1 - 100 MHz : 100±15 Ohms | |||||||
101 - 250 MHz : 100±22 Ohms | ||||||||
Max Frequency | 250MHz | |||||||
Capacitance Unbalance | 330 pF/100m | |||||||
NVP(传输速率) | ≥ 65% | |||||||
Delay Skew | ≤ 44ns/100m | |||||||
Working Voltage | Typically up to 48V | |||||||
Rated Voltage(V RMS) | 300V | |||||||
PHYSICAL PROPERTIES | ||||||||
Pulling Tension(Max) | 30 lbs(133N) | |||||||
Bend Radius(Min) | 4 Times the cable diameter | |||||||
Operating Temperature | -20 to 75 ℃ (-4 to 167℉) | |||||||
Performance Characteristics | ||||||||
Frequency | Attenuation | NEXT | ACRF | PS.NEXT | PS.ACRF | RL | Delay | Skew |
MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
1 | 2.0 | 74.3 | 67.8 | 72.3 | 64.8 | 20.0 | 570.0 | 45.0 |
4 | 3.8 | 65.3 | 55.8 | 63.3 | 52.8 | 23.0 | 552.0 | |
8 | 5.3 | 60.8 | 49.7 | 58.8 | 46.7 | 24.5 | 546.7 | |
10 | 6.0 | 59.3 | 47.8 | 57.3 | 44.8 | 25.0 | 545.4 | |
16 | 7.6 | 56.2 | 43.7 | 54.2 | 40.7 | 25.0 | 543.0 | |
20 | 8.5 | 54.8 | 41.8 | 52.8 | 38.8 | 25.0 | 542.0 | |
25 | 9.5 | 53.3 | 39.8 | 51.3 | 36.8 | 24.3 | 541.2 | |
31.25 | 10.7 | 51.9 | 37.9 | 49.9 | 34.9 | 23.6 | 540.4 | |
62.5 | 15.4 | 47.4 | 31.9 | 45.4 | 28.9 | 21.5 | 538.6 | |
100 | 19.8 | 44.3 | 27.8 | 42.3 | 24.8 | 20.1 | 537.6 | |
200 | 29.0 | 39.8 | 21.8 | 37.8 | 18.8 | 18.0 | 536.5 | |
250 | 32.8 | 38.3 | 19.8 | 36.3 | 16.8 | 17.3 | 536.3 | |
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||||||||
Order Informations | ||||||||
Marking | HANGZHOU ZION 7112225-×× SF/UTP CAT6 4PR | |||||||
Inner Package | 1000FT/Pull Box or Wooden Spool (or Per customer's request) | |||||||
Outer Package | Pallet (or Per customer's request) | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
Online Service: | ||||||||
+86 15088607575 | ||||||||
+86 15088607575 | ||||||||
OEM Customized Service: | ||||||||
Color | We can customized Jacket Color based on RAL Classic | |||||||
Printing | We can customized printing words on jacket | |||||||
Packing & Label | We can customized spool, carton & label design. |
