NO.7133301 Marine Cable Cat.6 S/FTP 4 pairs SHF1 (TB)

Construction

Conductor:

7*0.23mm stranded bare copper wire

Pairs:

4 Pairs

Insulation:

Foam PE, O.D.: 1.55±0.10 mm,

Insulation Colors:

White, Blue, Orange, Green, Brown

Individual screen

AL/Mylar

Overall screen

Tinned copper braiding, coverage≥60%

Out Jacket:

SHF2; Black (Similar to RAL9004) ;

Thickness: approx 0.90mm;

OD: 9.00±0.50mm

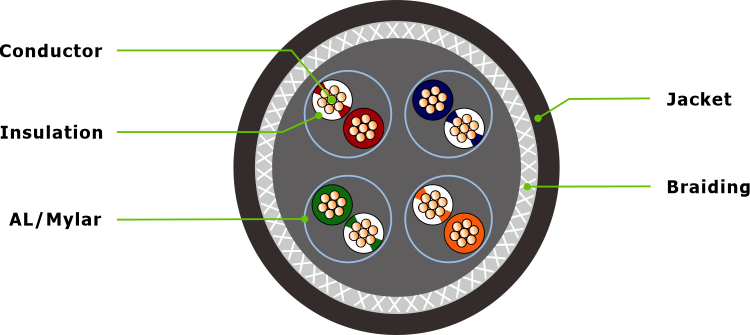

Cross Section

Electrical Characteristics (20℃)

Conductor DC resistance:

≤93.8ohm/km

DC Resistance unbalance

≤2% (within a pair )       ≤5% (between pairs )

Characteristic impedance:

100±5ohm @100MHz

Dielectric Strength:

DC1KV for 1min (conductor to conductor,conductor to screen)

Insulation Resistance:

≥5000MΩ.km (IEC 61156-5)

Capacitance Unbalance
(pair to ground):

≤160pF/100m at 1kHz (IEC 61156-5)

Transmission performance:

IEC 61156-5

PHYSICAL PROPERTIES

Operating temperature:

-40℃ to 80℃

Installation temperature:

-20℃ to 60℃

Acid Gas Release Mounts:

≤5mg/g (IEC 60754-1)

Burning Occur Gas Acidity :

PH≥4.3 (IEC 60754-2)

Burning Occur Gas conductivity:

< 10 μS/mm (IEC 60754-2)

Smoke density:

≥60%（IEC 61034-2）

Flame resistance:

IEC 60332-3-22, IEC 60332-3-24, IEC 60332-1

Oil resistance:

IRM902, 70℃×24H

UV resistance:

UL1581(300H)

The jacket material performance:

IEC 60092-360

This cable meets RoHS requirements.

Performance Characteristics

Frequency

ATT

RL (Min.)

NEXT

PSNEXT

ELFEXT

PSELFEXT

(Max.)

(Min.)

(Min.)

(Min.)

(Min.)

MHz

dB/100m

dB

dB

dB

dB

dB

4

3.83

23

66.3

63.3

56

53

8

5.37

24.5

61.8

58.8

49.9

46.9

10

6

25

60.3

57.3

48

45

16

7.61

25

57.2

54.2

43.9

40.9

20

8.53

25

55.8

52.8

42

39

25

9.57

24.3

54.3

51.3

40

37

31.25

10.75

23.6

52.9

49.9

38

35.1

62.5

15.48

21.5

48.4

45.4

32.1

29.1

100

19.92

20.1

45.3

42.3

28

25

200

29.14

18

40.8

37.8

22

19

250

33.02

17.3

39.3

36.3

20

17.0
