Plenum
hellosignal
P7110144
Plenum Security Cables
UL, ETL, CE,CPR, RoHS
100m,500m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

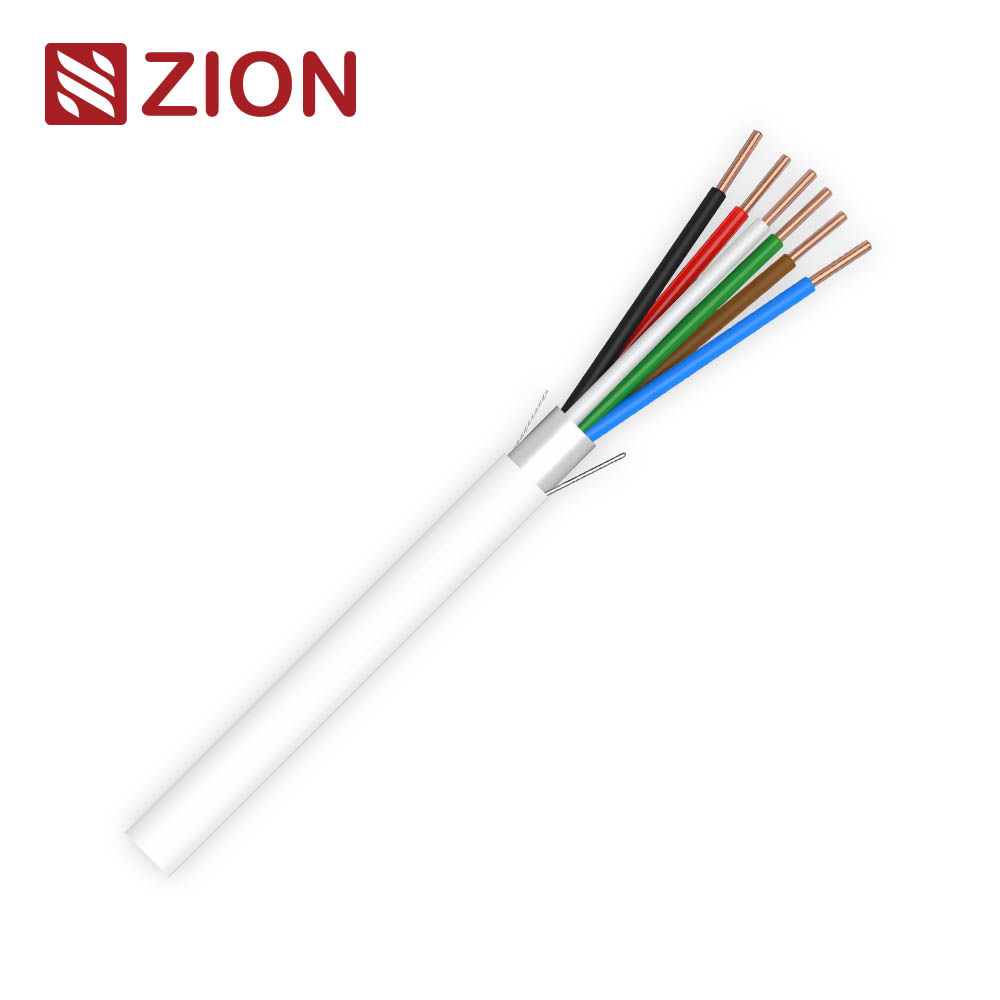

18AWG 6C SOL Shielded Plenum | ||
Key Information & Construction | ||
SKU: | P7110144 |
|
UL Certificate Number: | E541136 - CMP | |
E541137 - CL2P & CL3P | ||
CMP Standards: | UL 444 & CSA C22.2 No.214 | |
CL2P/CL3P Standards: | UL 13 Power-Limited Circuit Cables | |
Total Number Conductors | 6 | |
Conductor Material: | Solid Bare Copper | |
Conductor Size: | 18AWG/ 0.040" / 1.02±0.008mm | |
Dielectric Material: | Plenum PVC - Low Smoke | |
Dielectric Size: | 0.054±0.004''nom.(1.37±0.10mm) | |
Dielectric Colors: | 1.Blk 2.Red 3.White 4.Green 5.Brown 6.Blue | |
Drain Wire: | 24 AWG 7/32 Stranded Tinned Copper | |
Shielded: | Aluminum Mylar | |
Rip Cord: | Yes | |
Out Jacket: | Material: Plenum PVC - Low Smoke | |
Wall Thickness: 0.0150". Nom(0.38mm) | ||
OD:0.197"±0.006“ (5.01±0.15mm) | ||
Electrical & Physical Characteristics | ||
DC Resistance | 6.425 Ω/KFT | 21.05 Ω/KM | |
Rated Voltage(V RMS) | 300V | |
Operating Temperature | - 20 to 75 ℃ (- 4 to 167℉） | |
Order Informations | ||
Marking | HANGZHOU ZION 18AWG 6C SOL SHIELDED E541137 CL3P(UL) | |
Color | We can customized Jacket Color based on RAL Classic | |
Printing | We can customized printing words on jacket | |
Packing & Label | We can customized spool, carton & label design. | |
Suitable Application | ||
Description | Security System | Sound/Audio System | Intercom System | |
