Author: James Publish Time: 18-07-2025 Origin: Site
MPO (Multi-Fiber Push-On) jumpers are pre-terminated multi-fiber patch cords with high-density data center, enterprise network, network central offices, and speed backbone system applications that deliver plug-and-play connectivity.
Typically, MPO cables house 12, 24, or more fibers into a single connector, which means minimal space or room is needed for installation yet with aggressive rollout in modular systems like MTP cassettes, panels, and transceivers.
Looking at the indoor fiber cables catalog above (Indarmjuft Curtain, pp. 22–24), there are three core types of MPO jumpers:

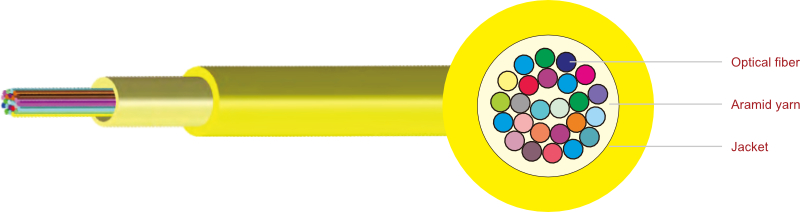

MPO-MPO straight-through connection
Coming with 12, 24, or 48 fibers
Anatomical (depicting male/female) coupleths for vessel alignment pins
Single mode (according to G.657.A1/A2) or multimode (OM3/4 from DC)
The cable consists of LSZH jacket enclosing the structure round one.
Usually employed for backbone or A-to-B, module-to-module connections.
One end with MPO type, the other with 4, 8, or 12 LC (short, round-shaped connectors) connectors.
Provides direct MPO trunk connection to the switch/router ports of the individual equipment.
A 0.9mm or 2.0mm subunits segmented as per color.
Glossy and ground finish, optical quality.
Above tray from trunk patching to equipment.
Flexibly constructed MPO jumper, dense routing in minimal-space.
Narrower size, in order to be placed in trays and panels.
The "Option" of going for uniboot or single jacket.
Support connections that run across from short distance between racks.
LSZH or OFNP flame-retardant materials available
Product Type | Common Name | Fiber Count | Connector Type | Structure | Fiber Type | Jacket Type | Typical Use Case |
MPO–MPO Trunk Cable | Straight MPO Jumper | 12 / 24 / 48 | MPO ⟷ MPO (Male/Female) | Round cable | G.657.A1 / OM3 / OM4 | LSZH / OFNP | Backbone cabling between panels, MTP modules |
MPO–LC Fan-out Patch Cable | MPO Fan-out Cable | 4 / 8 / 12 | MPO ⟷ 4/8/12×LC or SC | 0.9mm / 2.0mm tail | G.657.A2 / OM3 | LSZH | Split MPO trunk to equipment ports (switch, router, ODF) |
High Flexibility MPO Patch Cord | Slim MPO Jumper / Uniboot Cable | 12 / 24 / 48 | MPO ⟷ MPO | Small OD, flexible | G.657.A2 / OM4 | LSZH / OFNP | Short-run MTP patching in dense environments |
Quick Selection Tips:
✅ Choose MPO–MPO Trunk Cable if you need backbone connection between distribution panels, modules, or cassettes.
✅ Choose MPO–LC Fan-out Cable if you need to connect from MTP to multiple standard ports (LC/SC) on active devices.
✅ Choose Slim MPO Jumper if you require tight routing or patching in high-density racks or cable trays.
Engineering skills and OEM service.
Zion Communication has a completely custom and OEM option for MPO jumpers:
Fiber count: 8 / 12 / 24 / 48 cores.
Connector types: MPO-MPO, MPO-LC, MPO-SC.
Length: 0.5m - 200m.
Polarity configuration: Type A / B / C.
Jacket rating: LSZH / OFNP / riser.
Labeling: Custom tag (terms like packing, brand marking, etc.).
Testing: 100% band tested with IL/RL and with report.
James is a technical manager and associate at Zion Communication.
Specializes in Optical Fiber communications, FTTH Solutions,
Fiber optic cables, ADSS cable, and ODN networks.
