OM3 Optical Distribution Cable for DataCenter

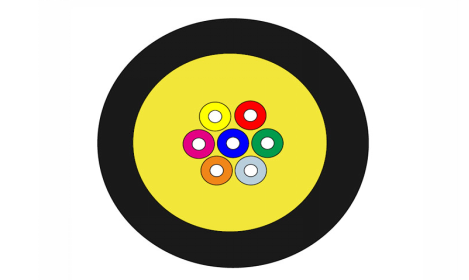

Cross Section：

Technical Parameters (-20℃ to+60℃) :

Cable
Code

Fiber
Type

Fiber
Count

Cable
Dimension
(mm)

Cable Weight
(kg/km)

Tensile Strength
Long/Short
term(N)

Crush
Resistance
Long/Short term
(N/100mm)

Bending Radius
Static/Dyna
mic
(mm)

GJFJV

SM
OM1
OM3
OM4

2

4.1±0.25

12.4

200/660

200/1000

20D/10D

GJFJV

4

4.8±0.25

16.2

200/660

300/1000

20D/10D

GJFJV

6

5.1±0.25

20

200/660

300/1000

20D/10D

GJFJV

8

5.6±0.25

26

200/660

300/1000

20D/10D

GJFJV

10

5.8±0.25

28

200/660

300/1000

20D/10D

GJFJV

12

6.2±0.25

31.5

200/660

300/1000

20D/10D

Description:

Multi-purpose distribution cable use several 900μm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with PVC-OFNR jacket.

Application:

1.Indoor/outdoor any purpose cable distribution
2.Backbone distribution cable in a building
3.Multi optical fiber jumper
4.Tight buffer fiber easy strip
5.Tight buffer fiber has excellent flame-retardant performance
6.Aramid yarn as strength member make cable have excellent tensile strength
7.The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.

OM3 Optical Fiber

Item

Description

Fiber type

Multi mode

Attenuation coefficient

@ 850 nm/1300nm Typical

≤0.30 /1.0 dB/km

@ 850 nm/1300nm Max.

≤0.35 /1.5 dB/km

OFL

@ 850 nm/1300nm

≥1500/500 MHZ.km

Valid mode band width

@ 850 nm

≥1500/500 MHZ.km

Valid mode band width

@ 850 nm

≥2000 MHZ.km

10G Ethernet link length SX

@ 850 nm

≤300 m

Min. bending radius

30 mm

Colors -12 Chromatography：

Fibre Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua

Order Informations：

Marking

Per customer's request

Package

Per customer's request

Delivery time

Normally 25 days after received the deposit.

Brand

OEM
