PROFINET Copper Cable type A | ||||||||
Application | ||||||||
The cable is specially designed for PROFINET and is widely used in industrial Ethernet applications such as machines, equipment, instruments and control panels. | ||||||||
Features | ||||||||
Flame resistance according to IEC60332-1 | ||||||||

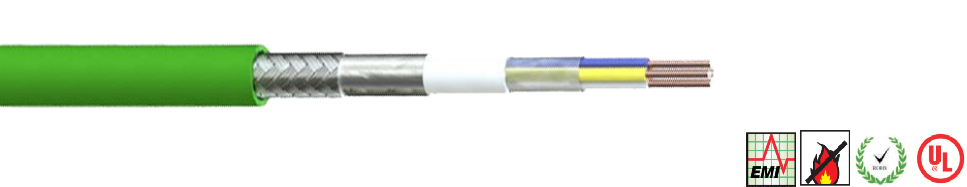

Cable Construction | ||||||||
Conductor: | 0.645±0.005mm Solid Copper (Class1) | |||||||
Insulation: | 1.48±0.05mm HDPE | |||||||
Insulation color: | Pair 1: White,Blue Pair 2: Yellow,Orange | |||||||
Inner jacket: | PVC or LSZH | |||||||
Shield: | AL/Mylar screen and TC braid | |||||||
Outer jacket: | PVC or LSZH | |||||||
Color: | Green (Similar to RAL 6018) | |||||||

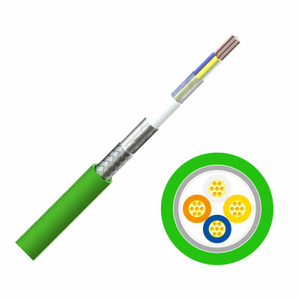

Cross Section | ||||||||
Electrical Chatacteristics(20℃) | ||||||||
Conductor DC resistance | ≤115 ohm/km | |||||||
Operating voltage | ≤600V | |||||||
Dielectric Strength | DC 1.5KV for 1min IEC 61156-5 (section 6.2) | |||||||
Characteristic impedance | 100±15 Ohm @ 100MHz IEC 61156-5 (section 6.3) | |||||||
Deley Skew | ≤ 20ns/100m | |||||||
Coupling attenuation | ≥80dB @30-100MHz | |||||||
Transmission performance | ISO/IEC 11801 Edition 2.0, IEC 61156-1, IEC 61156-5 | |||||||
More Technical parameters | ||||||||
Operating Temperature | -40℃ to 80℃ | |||||||
Installation Temperature | -20℃ to 60℃ | |||||||
Min bending radius | Fixed installation:4x cable diameter | |||||||
Flame resistance | FT2, IEC 60332-1-2 | |||||||
Oil resistance | EN 50290-2-22 type TM54, JIS C 3005 type A | |||||||
UV resistance | UL 1581 section 1200 | |||||||
Tensile performance | Max. 50N | |||||||
Crush test of the cable | Max. 3000N | |||||||
RoHS | Meet the requirements | |||||||
Product List: | ||||||||

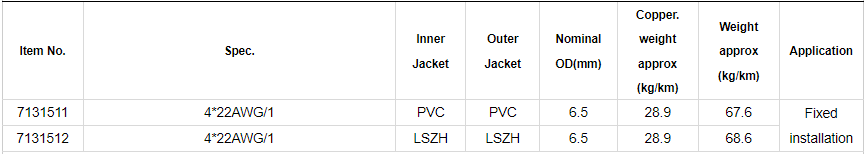

Item No. | Spec. | Inner Jacket | Outer Jacket | Nominal | Copper. | Weight approx | Application | |
7131511 | 4*22AWG/1 | PVC | PVC | 6.5 | 28.9 | 67.6 | Fixed installation | |
7131512 | 4*22AWG/1 | LSZH | LSZH | 6.5 | 28.9 | 68.6 | ||
Order Informations | ||||||||
Marking | HELLOSIGNAL PROFINET Copper Cable Type A XXXFT/M | |||||||
Package | 100M/Reel, 500M/Wooden Spool | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM |
