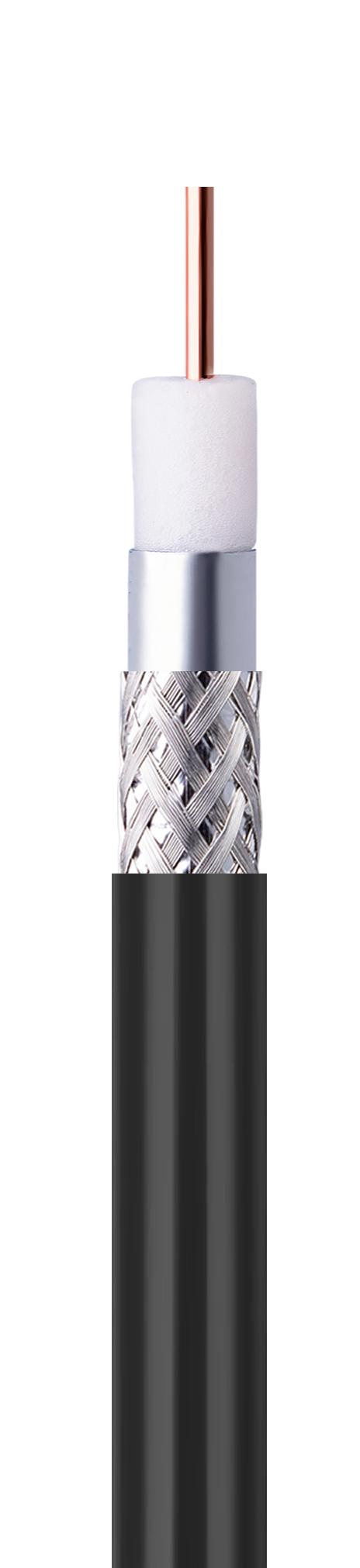

RG11 SA Class A+ Fca

Key Information & Construction Parameters:

SKU：

7170203

Class CPR

Fca

Standards:

EN50117-11-2
CEI-UNEL 36762
EN50575

Inner Conductor Material

Plain Copper (Cu)

Inner Conductor Size

1.63± 0.03mm

Insulation Material

Foam Polyethylene(PEG)

Insulation Size

7.20 ± 0.10mm

Shield 1

Al/Pet/Al+Sur

Shield 2

Tinned Copper(CuSn) braiding wire

78% Coverage

Water repellent sealing

(sheath)

Jelly2

Jacket

Material: PE

OD: 10.10 ± 0.15 mm

Color: White/Black or customerzied

Application

DOCSIS 3.1 (Data Over Coax System)
CATV
4K-UHD
Exterior and Underground Installation

Electrical Characteristics & Physical Properties:

Characteristic impedance

200 MHz  75±3 Ohm

Capacitance (@1kHz)

52 ± 2 pF/m.Nom

Velocity Ratio

85% Nom.

Inner conductor resistance

8.50 Ω/km

Outer conductor resistance

7.50 Ω/km

Loop resistance

16 Ω/km

Sheat Insulation voltage

5 kV

Maximum current (Ieff)

16 A

Structural Return Loss(SRL)

5 - 470 MHz

>26 dB

470 - 1000 MHz

>26 dB

1000 - 2000 MHz

>23 dB

2000 - 3000 MHz

>20 dB

Screening Attenuation(SA)
SA-Class A++

30 - 1000 MHz

>95 dB

1000 - 2000 MHz

>95 dB

2000 - 3000 MHz

>85 dB

Transfer Impedance

    5-30 MHz

＜ 4 mOhm/m

Min.Bending Radius

50/100 mm

Max. Cable Pulling Strength

300 N

Operating Temperature

-40 / +80 °C

Attenuation (at 20°C )

Frequency (MHZ)

Max Attenuation (dB/100m)

5

1.10

10

1.50

30

2.20

50

2.80

200

5.60

300

6.90

470

8.80

*The above data is for reference only, the actual order test report shall prevail.
