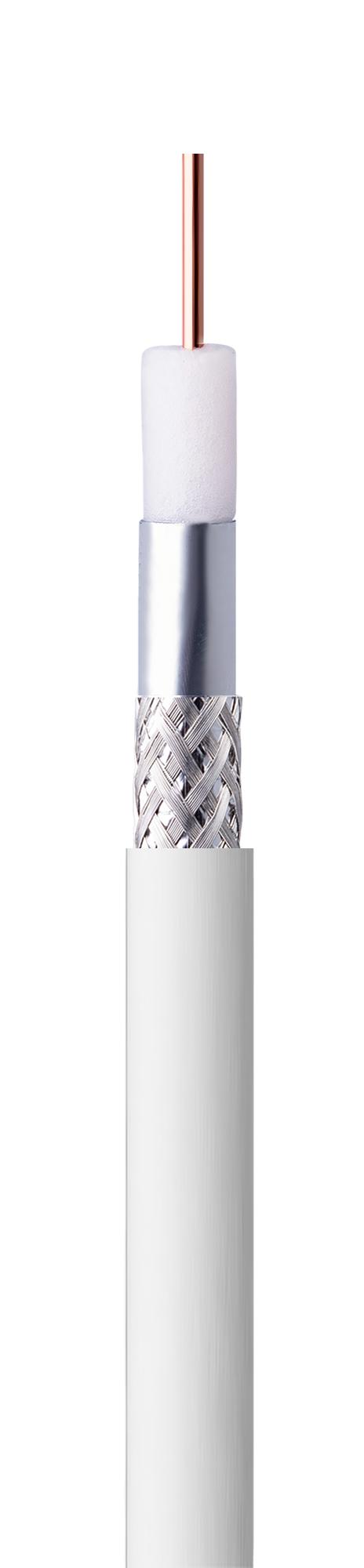

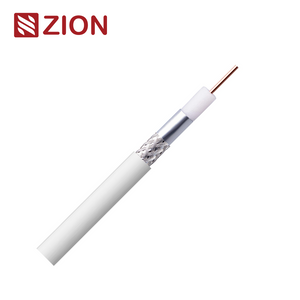

RG6+ BRD703 SA Class A++ Dca

Key Information & Construction Parameters:

SKU：

7170002

Class CPR

Dca s2,d2,a1

Standards:

EN50117-9-2
EN50117-10-2
CEI-UNEL 36762
EN50575

Inner Conductor Material

Plain Copper (Cu)

Inner Conductor Size

1.13 ± 0.02mm

Insulation Material

Foam Polyethylene(PEG)

Insulation Size

4.75 ± 0.10mm

Shield 1

Aluminum/Poly Tape (AL/PET)

Shield 2

Tinned Copper(CuSn) braiding wire

72% Coverage

Jacket

Material: LSZH

OD: 6.60 ± 0.10mm

Color: White/Black or customerzied

Application

DOCSlS 3.1 (Data Over Coax System)
CATV
4K-UHD
Indoor + Outdoor Installation

Electrical Characteristics & Physical Properties:

Characteristic impedance

200 MHz  75±3 Ohm

Capacitance (@1kHz)

52 ± 2 pF/m.Nom

Velocity Ratio

85% Nom.

Inner conductor resistance

18 Ω/km

Outer conductor resistance

10.7 Ω/km

Loop resistance

28.7 Ω/km

Sheat Insulation voltage

3 kV

Maximum current (Ieff)

8 A

Structural Return Loss(SRL)

5 - 470 MHz

>30 dB

470 - 1000 MHz

>28 dB

1000 - 2000 MHz

>26 dB

2000 - 3000 MHz

>22 dB

Screening Attenuation(SA)
SA-Class A++

30 - 1000 MHz

>110 dB

1000 - 2000 MHz

>105 dB

2000 - 3000 MHz

>90 dB

Transfer Impedance

    5-30 MHz

＜ 2.5 mOhm/m

Min.Bending Radius

35/70 mm

Max. Cable Pulling Strength

150 N

Operating Temperature

-20 / +80 °C

Attenuation (at 20°C )

Frequency (MHZ)

Max Attenuation (dB/100m)

5

1.40

10

1.90

30

3.00

50

4.00

200

8.10

300

9.90

470

12.60

*The above data is for reference only, the actual order test report shall prevail.

Order Informations:

Marking

HANGZHOU ZION 7170002 75 OHM RG6+ BRD703 SA Class A++ Dca EN50117-9-2 DDMMYY 001M-100M

Package

100M/Roll, 300M/WS (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
