SAT 501 Coax Cable 75 Ohm CATV coaxial Cable

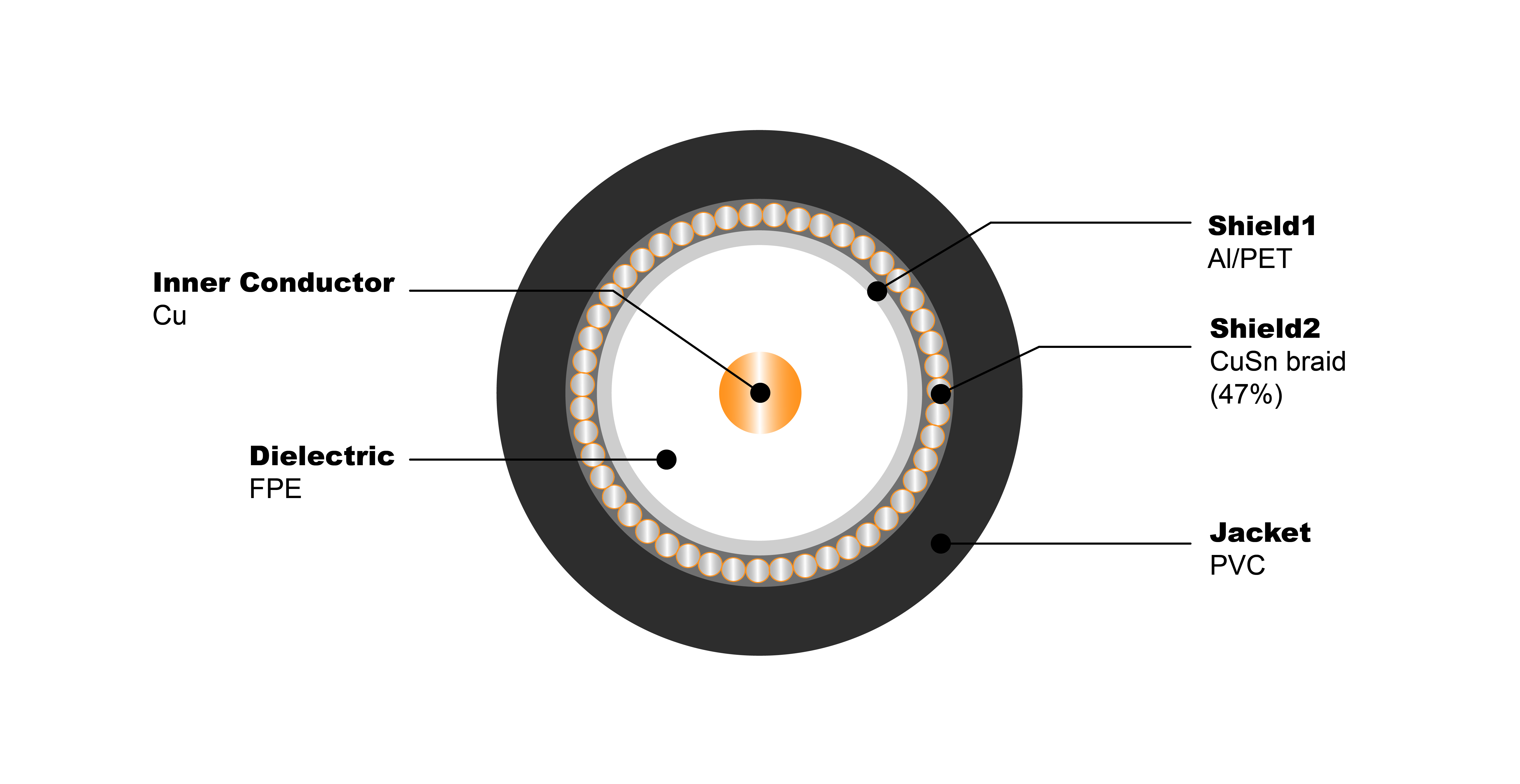

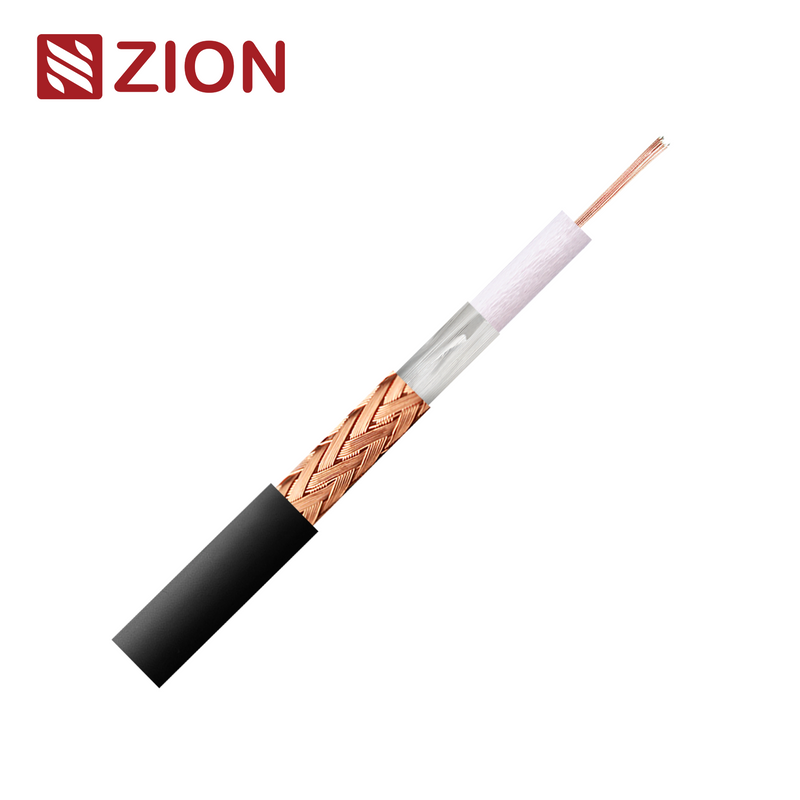

Construction Parameters:

Inner Conductor

0.80mm±0.02mm Copper

Dielectric

3.50mm±0.10 Foamed PE

Shield 1

Aluminum PET

Shield 2

CuSn braid wire 47% coverage

Jacket

5.00±0.10mm PVC

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <  34.3 Ω/km

Capacitance

54 ±3 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

6.6±0.15mm PVC

Cross Section

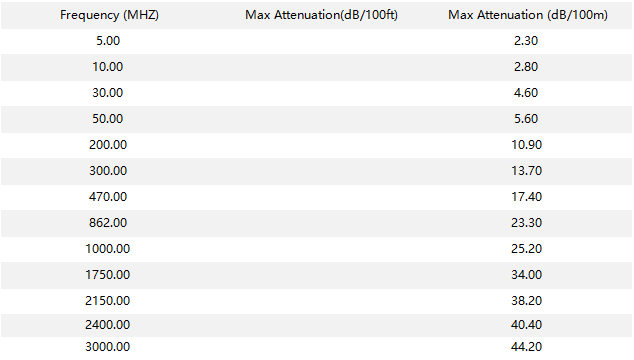

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

2.30

10

2.80

30

4.60

50

5.60

200

10.90

300

13.70

470

17.40

862

23.30

1000

25.20

1750

34.00

2150

38.20

2400

40.40

3000

44.20

Order Informations:

Marking

HELLOSIGNAL SAT 501 Coax Cable

CATV COAXIAL CABLE 7100502 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
