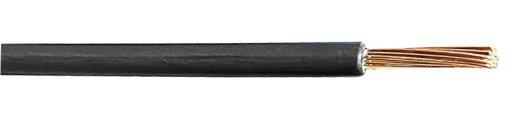

SGX Automotive Cable

SGX Automotive Cable

Product Description:

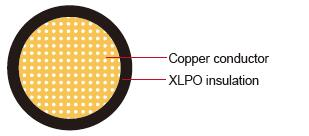

Conductor

Soft-annealed copper according to ASTM B

Insulation

XLPO(Cross-Linked Polyolefin)

Standard Compliance

SAE J 1127

Special properties

Flame retardant
Highly resistant against acids,lyes,petrol and diesel

Technical Parameters

–40°C to +125°C

Application:

This XLPO insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting,charging,lighting,signal and instrument panel circuits.

Zion's Hot Types of SGX Automotive cable

Type

Conductor

Insulation

Cable

SIZE

Nominal
cross-
section

No. and
Dia. of Wires

Diameter of
Conductor max.

Nominal thickness

Overall
Diameter Max.

Weight
approx.

AWG

mm²

No./mm

mm

mm

mm

Kg/km

6

1x13

133/0.36

4.83

1.52

8.6

166.0

4

1x19

133/0.46

6.09

1.65

10.5

257.0

2

1x32

133/0.57

7.67

1.65

12.0

373.0

1

1x40

259/0.46

8.49

1.65

13.0

453.0

1/0

1x50

1026/0.26

9.47

1.65

14.5

545.0

2/0

1x62

1254/0.26

10.47

1.65

16.0

653.0

3/0

1x81

1615/0.26

11.98

1.98

18.5

847.0

4/0

1x103

2052/0.26

13.4

1.98

20.0

1052.0

* Note: Other configurations, sizes, colors and length not specified herein are available upon request.
