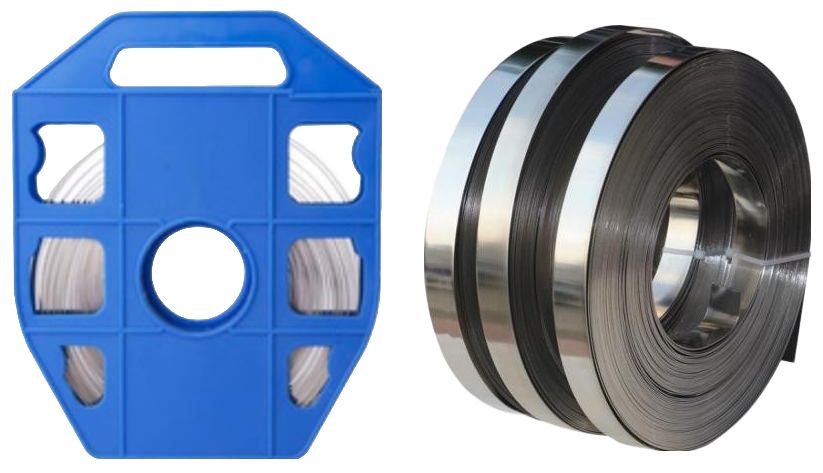

SS Stainless Steel Uncoated Bands ZCSSS-01

Short Description

◆Material: SS201,SS304,SS316
◆Suitable Tool:, C001、LQA、J020、CT04
◆Working Temp: white steel -80°C~538°C
◆Color: Metallic

Technical Parameter

◆Material: SS201,SS304,SS316
◆Suitable Tool:, C001、LQA、J020、CT04
◆Working Temp: white steel -80°C~538°C
◆Color: Metallic
◆Product Features: Corrosion resistance in harsh offshore environments,excellent for marine applications,safety in oil & gas carriers and offshore rigs,superior bunding tensile strengths,self extinguishing.Communication derrick

Product Specifications

Item NO.

SS-07

SS-08

SS-9.5

SS-10

SS-12

SS-12.7

SS-16

SS-19

SS-25

SS-32

Width/mm

6.4

7.9

9.5

10

12

12.7

16

19

25

32

Thickness/mm

0.25/0.3

0.25/0.3

0.25-0.4

0.25-0.4

0.25-0.5

0.4-1.0

0.4-1.0

0.4-1.0

1.0

1.0

Product Specifications

Detailed parameters

Item NO.

Width

Thickness

M

m/Kg

mm

Inch

mm

Inch

Length/m

Weight/ m

ZC-SS-0.4*19

19

3/4 (0.75)

0.4

0.016

30.50.70

0.0608

ZC-SS-0.5*19

19

3/4 (0.75)

0.5

0.02

30.50.70

0.076

ZC-SS-0.6*19

19

3/4 (0.75)

0.6

0.024

30.50.70

0.091

ZC-SS-0.7*19

19

3/4 (0.75)

0.7

0.027

30.50.70

0.106

ZC-SS-0.8*19

19

3/4 (0.75)

0.8

0.03

30.50.70

0.1155

ZC-SS-1.0*19

19

3/4 (0.75)

1

0.039

30.50.70

0.152

Packaging information

1.Outside the carton Size：27X32X19 CM
2.Outside the carton weight：26.5 KG
3.Each box number：5 PCS
Every small bag：1 PCS

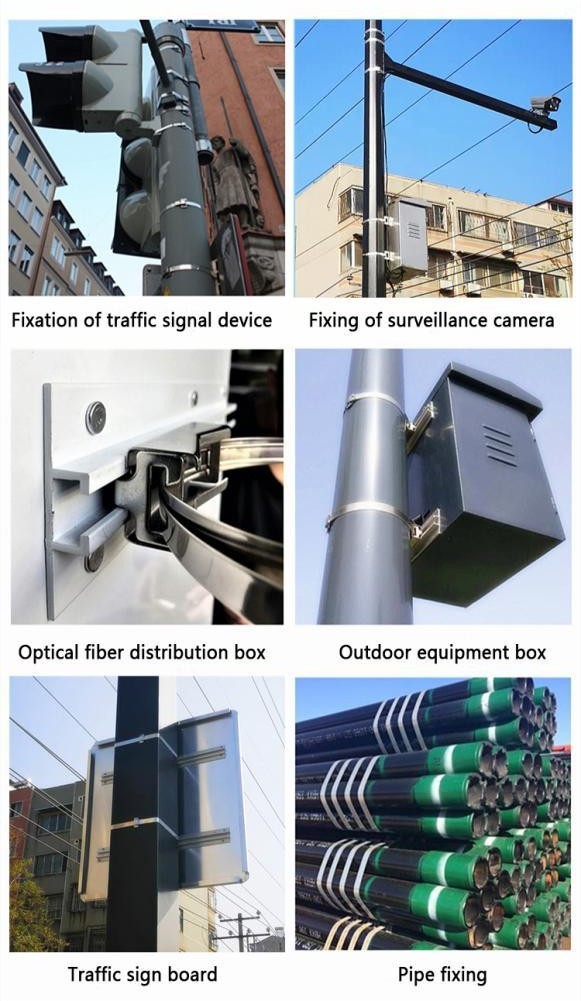

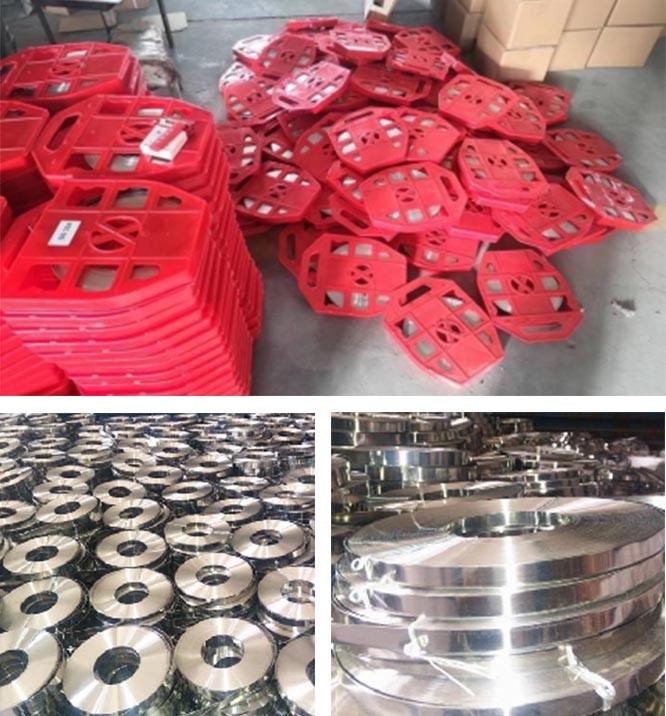

Production scenario

Production scenario
