Product Description

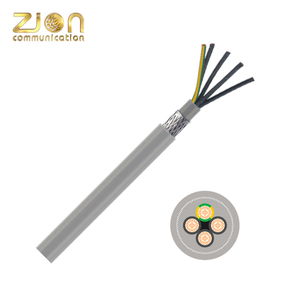

SY LSZH Control Cable | |||||||||||||||||||||||||
Application: | Cable Standards: | ||||||||||||||||||||||||
SY control cable is used as a control cable in areas requiring light mechanical protection and areas where there is risk to life from fire, | VDE 0207-303-7, | ||||||||||||||||||||||||
Product Description: | |||||||||||||||||||||||||
Conductor | Plain Annealed Stranded Copper | ||||||||||||||||||||||||
Insulation | LSZH insulated | ||||||||||||||||||||||||
Armouring | Galvanised Steel Wire Braid | ||||||||||||||||||||||||
Sheath | LSZH insulated | ||||||||||||||||||||||||
Characteristics: | |||||||||||||||||||||||||
Voltage Rating Uo/U | 300/500V | ||||||||||||||||||||||||
Temperature Rating | Fixed: -40°C to +80°C | ||||||||||||||||||||||||
Flexed: -15°C to +70°C | |||||||||||||||||||||||||
Minimum Bending Radius | Fixed: 6 x overall diameter | ||||||||||||||||||||||||
Flexed: 15 x overall diameter | |||||||||||||||||||||||||

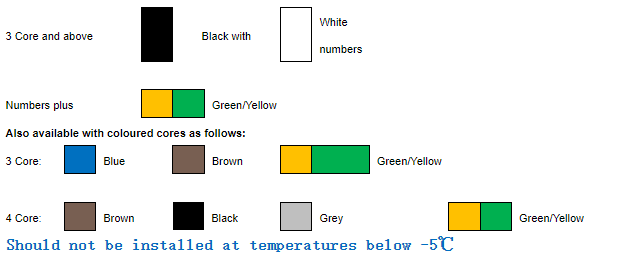

Core Identification: | |||||||||||||||||||||||||
3 Core and above | Black with | White numbers | |||||||||||||||||||||||
Numbers plus | Green/Yellow | ||||||||||||||||||||||||
Also available with coloured cores as follows: | |||||||||||||||||||||||||
3 Core: | Blue | Brown | Green/Yellow | ||||||||||||||||||||||
4 Core: | Brown | Black | Grey | Green/Yellow | |||||||||||||||||||||
Should not be installed at temperatures below -5℃ | |||||||||||||||||||||||||

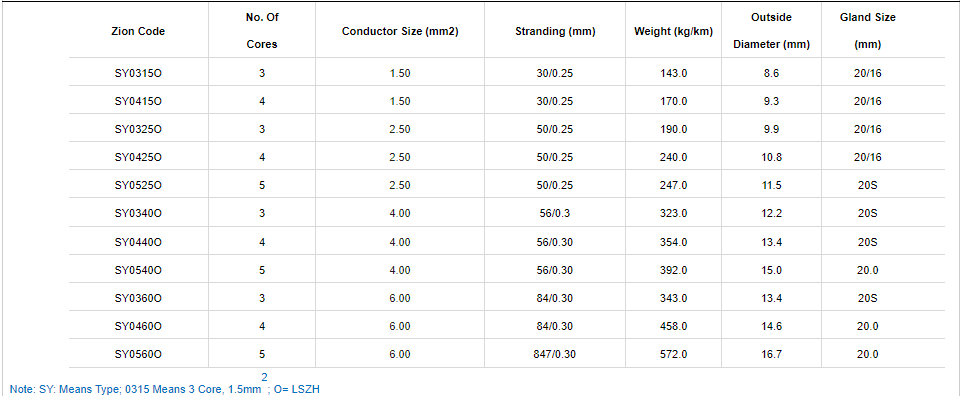

Dimensions: | |||||||||||||||||||||||||
Zion Code | No. Of | Conductor Size (mm2) | Stranding (mm) | Weight (kg/km) | Outside Diameter (mm) | Gland Size (mm) | |||||||||||||||||||
SY0315O | 3 | 1.50 | 30/0.25 | 143.0 | 8.6 | 20/16 | |||||||||||||||||||
SY0415O | 4 | 1.50 | 30/0.25 | 170.0 | 9.3 | 20/16 | |||||||||||||||||||
SY0325O | 3 | 2.50 | 50/0.25 | 190.0 | 9.9 | 20/16 | |||||||||||||||||||
SY0425O | 4 | 2.50 | 50/0.25 | 240.0 | 10.8 | 20/16 | |||||||||||||||||||
SY0525O | 5 | 2.50 | 50/0.25 | 247.0 | 11.5 | 20S | |||||||||||||||||||
SY0340O | 3 | 4.00 | 56/0.3 | 323.0 | 12.2 | 20S | |||||||||||||||||||
SY0440O | 4 | 4.00 | 56/0.30 | 354.0 | 13.4 | 20S | |||||||||||||||||||
SY0540O | 5 | 4.00 | 56/0.30 | 392.0 | 15.0 | 20.0 | |||||||||||||||||||
SY0360O | 3 | 6.00 | 84/0.30 | 343.0 | 13.4 | 20S | |||||||||||||||||||
SY0460O | 4 | 6.00 | 84/0.30 | 458.0 | 14.6 | 20.0 | |||||||||||||||||||
SY0560O | 5 | 6.00 | 847/0.30 | 572.0 | 16.7 | 20.0 | |||||||||||||||||||
Note: SY: Means Type; 0315 Means 3 Core, 1.5mm2; O= LSZH | |||||||||||||||||||||||||

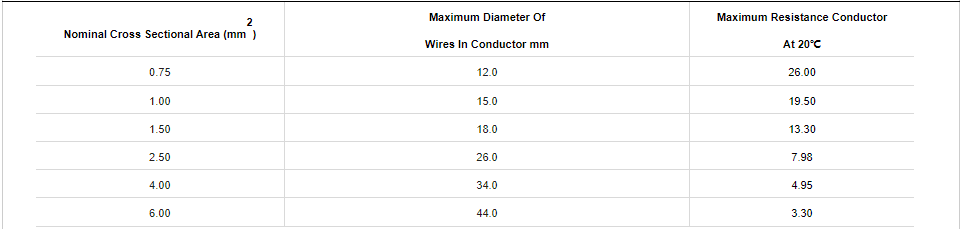

Conductor Resistance: | |||||||||||||||||||||||||
Nominal Cross Sectional Area (mm2) | Maximum Diameter Of | Maximum Resistance Conductor | |||||||||||||||||||||||
0.75 | 12.0 | 26.00 | |||||||||||||||||||||||
1.00 | 15.0 | 19.50 | |||||||||||||||||||||||
1.50 | 18.0 | 13.30 | |||||||||||||||||||||||
2.50 | 26.0 | 7.98 | |||||||||||||||||||||||
4.00 | 34.0 | 4.95 | |||||||||||||||||||||||
6.00 | 44.0 | 3.30 | |||||||||||||||||||||||

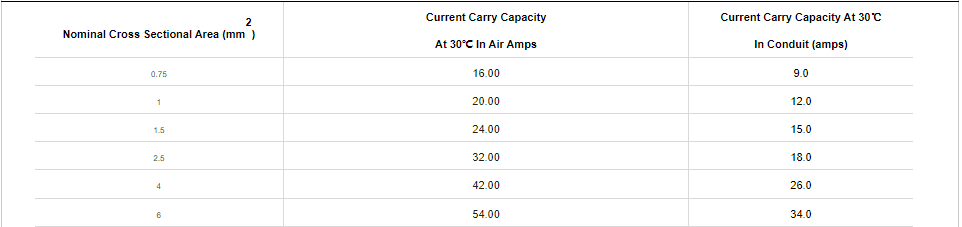

Current Carrying Capacity: | |||||||||||||||||||||||||
Nominal Cross Sectional Area (mm2) | Current Carry Capacity | Current Carry Capacity At 30℃ | |||||||||||||||||||||||
0.75 | 16.00 | 9.0 | |||||||||||||||||||||||
1 | 20.00 | 12.0 | |||||||||||||||||||||||
1.5 | 24.00 | 15.0 | |||||||||||||||||||||||
2.5 | 32.00 | 18.0 | |||||||||||||||||||||||
4 | 42.00 | 26.0 | |||||||||||||||||||||||
6 | 54.00 | 34.0 | |||||||||||||||||||||||
Voltage Drop: | |||||||||||||||||||||||||
Nominal Cross Sectional Area (mm2) | Two Core Cable Dc | Single Phase Two Core Cable Ac | Three Phase 3 Or 4 Core Cable Ac | ||||||||||||||||||||||
1 | 44 | 44 | 38.0 | ||||||||||||||||||||||
1.5 | 29 | 29 | 25.0 | ||||||||||||||||||||||
2.5 | 18 | 18 | 15.0 | ||||||||||||||||||||||
4 | 11 | 11 | 9.5 | ||||||||||||||||||||||
6 | 7.3 | 7.3 | 6.4 | ||||||||||||||||||||||
