Standard BS 6387 Cable Fire Alarm Cables

  • Standard BS 6387 Cable
  • hellosignal
  • 71132
  • Fire Alarm Cable
  • UL, ETL, CE,CPR, RoHS
  • 100m,500m,500ft,1000ft
  • roll, wooden spool, carton, pallet
  • 10KM
  • Normally 15 working days
  • NINGBO, SHANGHAI
  • T/T, L/C at sight, D/P at sight
Availability:

Specification

Standard BS 6387 Cable
Fire Alarm Cables


Cable construction :

Conductor:


Plain annealed copper wire, Stranded


Insulation:

Special mix silicon rubber

Shield:

Aluminum/ PETP tape over tinned copper drain wire



Jacket:

Thermoplastic Low Smoke, Halogen Free

Color: Red


STANDARD REFERENCES

- BS 6387:2013 Cat. C-W-Z
- IEC 60754-1:2014
- BS EN 61034-2:2005
- EN 50200:2015 (Class PH30/PH120)

Electrical Properties :

Temperature range

-30° C up to +180°C

During Installation:

-5° C up to +50°C

Insulation Resistance @ 20°C:

> 200 MOhm*Km

Test Voltage Core-Core:

2000 V

Test Voltage Core-Screen:

2000 V

Mutual Capacitance:

< 150 nF/km

Inductance:

< 1 mH/km

Operating Voltage:

100/100 V

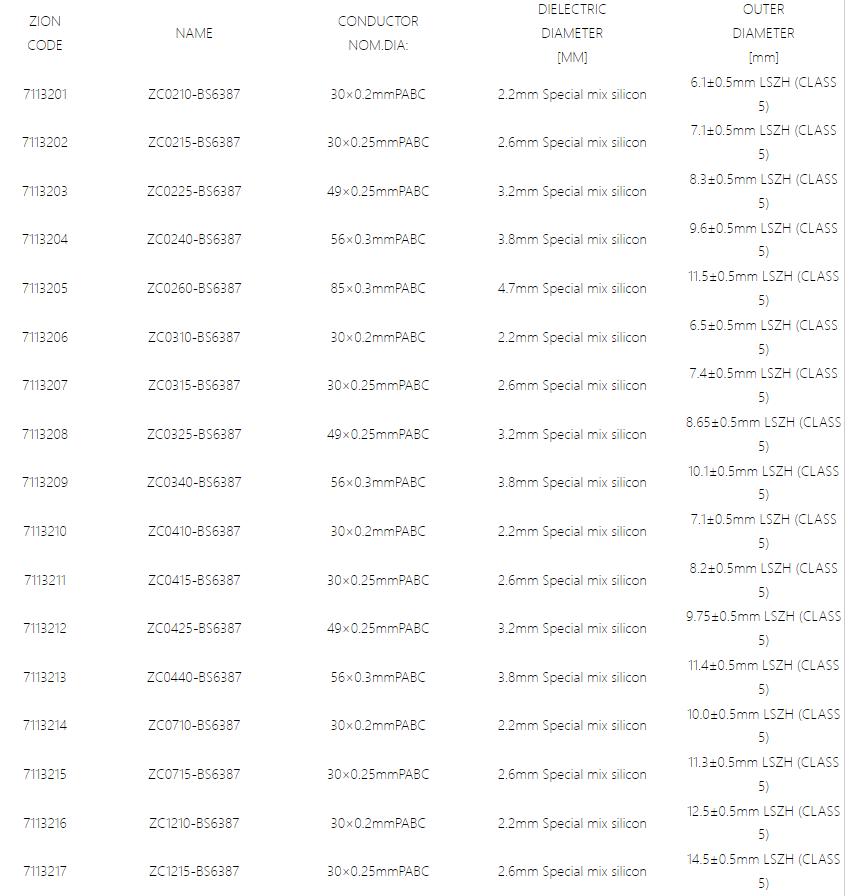

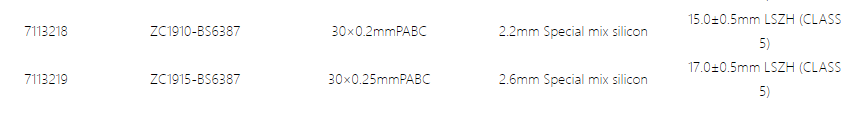

Cross Section :

 Standard BS 6387 Cable

ZION
CODE

NAME

CONDUCTOR
NOM.DIA:

DIELECTRIC
DIAMETER
[MM]

OUTER
DIAMETER
[mm]

7113201

ZC0210-BS6387

30×0.2mmPABC

2.2mm Special mix silicon

6.1±0.5mm LSZH (CLASS 5)

7113202

ZC0215-BS6387

30×0.25mmPABC

2.6mm Special mix silicon

7.1±0.5mm LSZH (CLASS 5)

7113203

ZC0225-BS6387

49×0.25mmPABC

3.2mm Special mix silicon

8.3±0.5mm LSZH (CLASS 5)

7113204

ZC0240-BS6387

56×0.3mmPABC

3.8mm Special mix silicon

9.6±0.5mm LSZH (CLASS 5)

7113205

ZC0260-BS6387

85×0.3mmPABC

4.7mm Special mix silicon

11.5±0.5mm LSZH (CLASS 5)

7113206

ZC0310-BS6387

30×0.2mmPABC

2.2mm Special mix silicon

6.5±0.5mm LSZH (CLASS 5)

7113207

ZC0315-BS6387

30×0.25mmPABC

2.6mm Special mix silicon

7.4±0.5mm LSZH (CLASS 5)

7113208

ZC0325-BS6387

49×0.25mmPABC

3.2mm Special mix silicon

8.65±0.5mm LSZH (CLASS 5)

7113209

ZC0340-BS6387

56×0.3mmPABC

3.8mm Special mix silicon

10.1±0.5mm LSZH (CLASS 5)

7113210

ZC0410-BS6387

30×0.2mmPABC

2.2mm Special mix silicon

7.1±0.5mm LSZH (CLASS 5)

7113211

ZC0415-BS6387

30×0.25mmPABC

2.6mm Special mix silicon

8.2±0.5mm LSZH (CLASS 5)

7113212

ZC0425-BS6387

49×0.25mmPABC

3.2mm Special mix silicon

9.75±0.5mm LSZH (CLASS 5)

7113213

ZC0440-BS6387

56×0.3mmPABC

3.8mm Special mix silicon

11.4±0.5mm LSZH (CLASS 5)

7113214

ZC0710-BS6387

30×0.2mmPABC

2.2mm Special mix silicon

10.0±0.5mm LSZH (CLASS 5)

7113215

ZC0715-BS6387

30×0.25mmPABC

2.6mm Special mix silicon

11.3±0.5mm LSZH (CLASS 5)

7113216

ZC1210-BS6387

30×0.2mmPABC

2.2mm Special mix silicon

12.5±0.5mm LSZH (CLASS 5)

7113217

ZC1215-BS6387

30×0.25mmPABC

2.6mm Special mix silicon

14.5±0.5mm LSZH (CLASS 5)

7113218

ZC1910-BS6387

30×0.2mmPABC

2.2mm Special mix silicon

15.0±0.5mm LSZH (CLASS 5)

7113219

ZC1915-BS6387

30×0.25mmPABC

2.6mm Special mix silicon

17.0±0.5mm LSZH (CLASS 5)











Order Informations :

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNALTM OR OEM
