Standard BS 7629 Cable Fire Alarm Cables

  • Standard BS 7629 Cable
  • hellosignal
  • 71131
  • Fire Alarm Cable
  • UL, ETL, CE,CPR, RoHS
  • 100m,500m,500ft,1000ft
  • roll, wooden spool, carton, pallet
  • 10KM
  • Normally 15 working days
  • NINGBO, SHANGHAI
  • T/T, L/C at sight, D/P at sight

Specification


Standard BS 7629 Cable
Fire Alarm Cables

Cable construction :

Conductor:

Plain annealed copper wire, Stranded


Insulation:

Special mix silicon rubber

Shield:

Aluminum/ PETP tape over tinned copper drain wire


Jacket:

Thermoplastic Low Smoke, Halogen Free

Color: Red


STANDARD REFERENCES

- BS 7629-1:2008
- BS 6387:2013 (CWZ)
- EN 50200:2006 (Class PH30/PH120)
- EN 50200:2006 Annex E (30 mins)
- BS 5839-1:2013 (Clause 26.2d Standard)

Electrical Properties :

Temperature range

-30° C up to +180°C

During Installation:

-5° C up to +50°C

Insulation Resistance @ 20°C:

> 200 MOhm*Km

Test Voltage Core-Core:

2000 V

Test Voltage Core-Screen:

2000 V

Mutual Capacitance:

< 150 nF/km

Inductance:

< 1 mH/km

Operating Voltage:

100/100 V

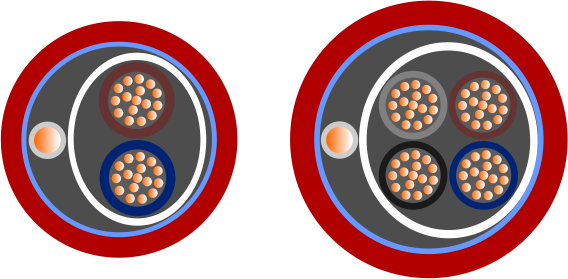

Cross Section :


BS 7629-1(2008) 71107

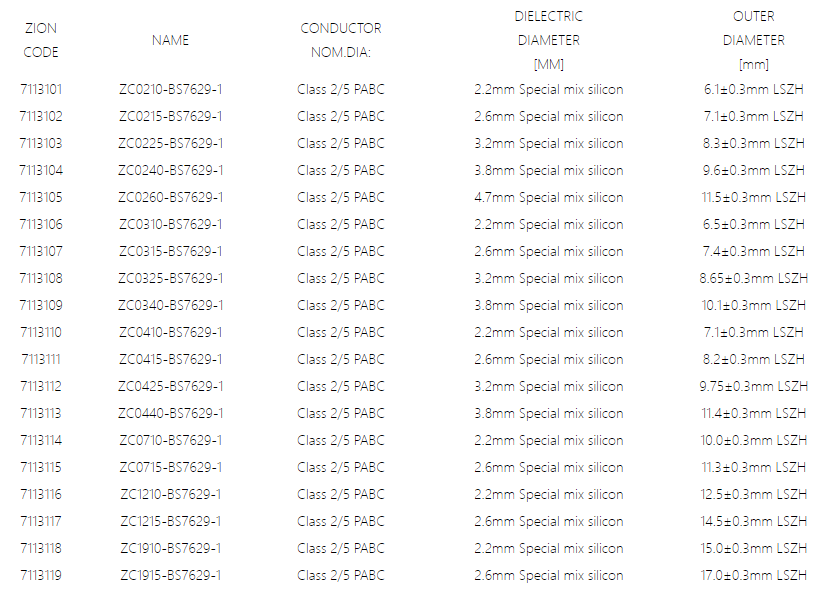

ZION
CODE

NAME

CONDUCTOR
NOM.DIA:

DIELECTRIC
DIAMETER
[MM]

OUTER
DIAMETER
[mm]

7113101

ZC0210-BS7629-1

Class 2/5 PABC

2.2mm Special mix silicon

6.1±0.3mm LSZH

7113102

ZC0215-BS7629-1

Class 2/5 PABC

2.6mm Special mix silicon

7.1±0.3mm LSZH

7113103

ZC0225-BS7629-1

Class 2/5 PABC

3.2mm Special mix silicon

8.3±0.3mm LSZH

7113104

ZC0240-BS7629-1

Class 2/5 PABC

3.8mm Special mix silicon

9.6±0.3mm LSZH

7113105

ZC0260-BS7629-1

Class 2/5 PABC

4.7mm Special mix silicon

11.5±0.3mm LSZH

7113106

ZC0310-BS7629-1

Class 2/5 PABC

2.2mm Special mix silicon

6.5±0.3mm LSZH

7113107

ZC0315-BS7629-1

Class 2/5 PABC

2.6mm Special mix silicon

7.4±0.3mm LSZH

7113108

ZC0325-BS7629-1

Class 2/5 PABC

3.2mm Special mix silicon

8.65±0.3mm LSZH

7113109

ZC0340-BS7629-1

Class 2/5 PABC

3.8mm Special mix silicon

10.1±0.3mm LSZH

7113110

ZC0410-BS7629-1

Class 2/5 PABC

2.2mm Special mix silicon

7.1±0.3mm LSZH

7113111

ZC0415-BS7629-1

Class 2/5 PABC

2.6mm Special mix silicon

8.2±0.3mm LSZH

7113112

ZC0425-BS7629-1

Class 2/5 PABC

3.2mm Special mix silicon

9.75±0.3mm LSZH

7113113

ZC0440-BS7629-1

Class 2/5 PABC

3.8mm Special mix silicon

11.4±0.3mm LSZH

7113114

ZC0710-BS7629-1

Class 2/5 PABC

2.2mm Special mix silicon

10.0±0.3mm LSZH

7113115

ZC0715-BS7629-1

Class 2/5 PABC

2.6mm Special mix silicon

11.3±0.3mm LSZH

7113116

ZC1210-BS7629-1

Class 2/5 PABC

2.2mm Special mix silicon

12.5±0.3mm LSZH

7113117

ZC1215-BS7629-1

Class 2/5 PABC

2.6mm Special mix silicon

14.5±0.3mm LSZH

7113118

ZC1910-BS7629-1

Class 2/5 PABC

2.2mm Special mix silicon

15.0±0.3mm LSZH

7113119

ZC1915-BS7629-1

Class 2/5 PABC

2.6mm Special mix silicon

17.0±0.3mm LSZH




















Order Informations :

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNALTM OR OEM



Packing
