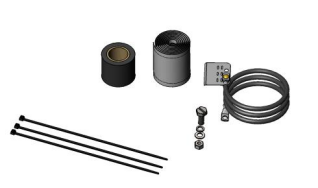

Standard Grounding Kit
hellosignal
ZC76003196
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Availability: | |
---|---|
Specification
Standard Grounding Kit ,for cable 1/4”-3/8”,0.8m | ||||||||
| ||||||||
Easy and quick installation | ||||||||
Low contact transition resistance of maximum 10mΩ | ||||||||
Suitable for screen diameter of cable OD 1/4”-3/8” | ||||||||
Operation Temperature -40~70 ℃ | ||||||||
Waterproof IP68 | ||||||||
General Specifications: | ||||||||
Bonding Conductor Material | Copper,Tin Plated | |||||||
Bonding Conductor Wire | Size 10mm² | |||||||
Grounding Strap Material | Copper,Tin Plated | |||||||
Lug Type | One-hole lug | |||||||
Screw Material | Stainless Steel | |||||||
Flat washer Material | Stainless Steel | |||||||
Spring washer Material | Stainless Steel | |||||||
Nut Material | Stainless Steel | |||||||
PVC tape Material | PVC | |||||||
Butyl Rubber Tape Material | Butyl | |||||||
Dimensions: | ||||||||
Bonding Conductor Length | 0.8 m |31.5 in | |||||||
Lug Hole Size | M8 | |||||||
Screw Size | M8x25 | |||||||
Environmental Specifications: | ||||||||
Contact Transition Resistance | Maximum 10mΩ | |||||||
Packaging and Weights: | ||||||||
Height, packed | 180 mm |7.0 in | |||||||
Width, packed | 310 mm |12.2 in | |||||||
Length, packed | 400 mm | 15.75 in | |||||||
Included | Grounding kit | M8x25 screw | M8 spring washer | |||||||
UOM | 1 Kit | |||||||
Packaging | Bag | |||||||
Weight, gross | 0.253 kg | 0.557 lb | |||||||
Certifications and Compliance: | ||||||||
ISO 9001:2015 | Designed,manufactured and/or distributed under this | |||||||
RoHS | Compliant |
