TWP Automotive Cable

TWP Automotive Cable

Product Description:

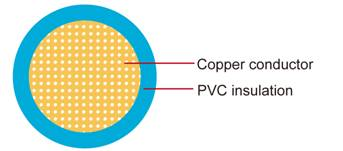

Conductor

Soft-annealed copper according to ASTM B3

Insulation

PVC

Standard Compliance

SAE J1128

Technical Parameters

Operating temperature:–40 °C to +80 °C (3000 hrs)

Application:

Automotive PVC insulated single-core cable is used in automotive applications where small diameter and minimal weight is required.

Zion's Hot Types of TWP Automotive cable

Type

Conductor

Insulation

Cable

SIZE

Nominal
cross-
section

No. and
Dia. of Wires

Diameter
Max.

Thickness
wall min.

Thickness
wall Nom.

Overall
Diameter max.

Weight
approx.

AWG

mm²

No./mm

mm

mm

mm

mm

Kg/km

22

1 x 0.35

7/0.25

0.76

0.28

0.40

1.70

6.0

20

1 x 0.50

7/0.32

0.97

0.28

0.40

1.90

8.0

18

1 x 0.80

16/0.25

1.17

0.28

0.40

2.20

11.0

18

1 x 0.80

19/0.23

1.17

0.28

0.40

2.20

11.0

16

1 x 1.00

19/0.28

1.45

0.28

0.40

2.40

15.0

14

1 x 2.00

19/0.36

1.8

0.28

0.40

2.70

22.0

12

1 x 3.00

19/0.45

2.29

0.32

0.46

3.30

34.0

10

1 x 5.00

19/0.57

2.87

0.35

0.50

4.00

53.0

8

1 x 8.00

49/0.46

4.06

0.39

0.55

4.90

85.0

* For SAE J1128 Applications only
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
