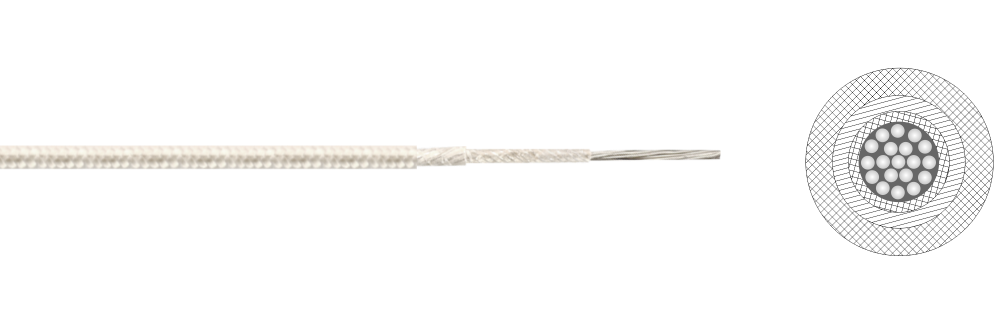

UL 5107 ultra high temperature Cable

Silicone 450℃ Cable
UL 5107 ultra high temperature Cable

Application:

Cable Standards:

UL 5107 wires have glass-reinforced mica
tape insulation and a braided fiberglass jacket for
enhanced abrasion resistance. They meet all UL
requirements for appliance lead wire, and are also
available with CSA certification.
These wires are ideal for use in heaters, ovens, and
other ultra-high-temperature applications.

Product Description:

Conductors

27% nickel-coated copper.

Insulation

Multiple layers of mica / glass composite tape.

Jacket

Glass braid with PTFE high-temperature saturant
(or silicone high-temperature saturant).

Options

Nickel-coated iron conductor; solid nickel conductor; nickel-plated copper conductor
(250° C temperature rating with this option).

Characteristics:

Voltage rating

600V (UL 5107)

Temperature rating

450° C;
250° C with optional nickel-plated copper conductor.

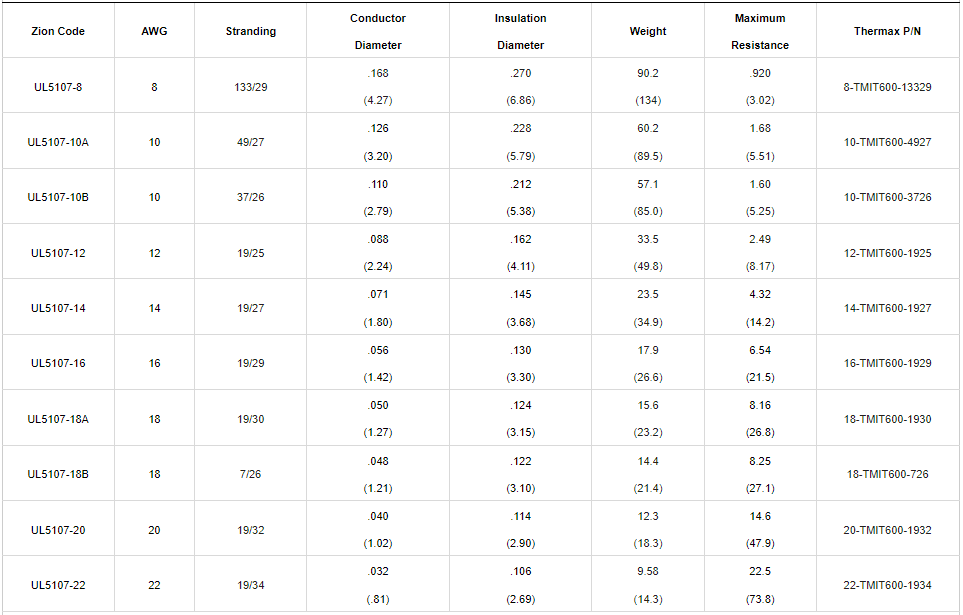

Dimensions (UL 5107):

Zion Code

AWG

Stranding

Conductor
Diameter

Insulation
Diameter

Weight

Maximum
Resistance

Thermax P/N

UL5107-8

8

133/29

.168
(4.27)

.270
(6.86)

90.2
(134)

.920
(3.02)

8-TMIT600-13329

UL5107-10A

10

49/27

.126
(3.20)

.228
(5.79)

60.2
(89.5)

1.68
(5.51)

10-TMIT600-4927

UL5107-10B

10

37/26

.110
(2.79)

.212
(5.38)

57.1
(85.0)

1.60
(5.25)

10-TMIT600-3726

UL5107-12

12

19/25

.088
(2.24)

.162
(4.11)

33.5
(49.8)

2.49
(8.17)

12-TMIT600-1925

UL5107-14

14

19/27

.071
(1.80)

.145
(3.68)

23.5
(34.9)

4.32
(14.2)

14-TMIT600-1927

UL5107-16

16

19/29

.056
(1.42)

.130
(3.30)

17.9
(26.6)

6.54
(21.5)

16-TMIT600-1929

UL5107-18A

18

19/30

.050
(1.27)

.124
(3.15)

15.6
(23.2)

8.16
(26.8)

18-TMIT600-1930

UL5107-18B

18

7/26

.048
(1.21)

.122
(3.10)

14.4
(21.4)

8.25
(27.1)

18-TMIT600-726

UL5107-20

20

19/32

.040
(1.02)

.114
(2.90)

12.3
(18.3)

14.6
(47.9)

20-TMIT600-1932

UL5107-22

22

19/34

.032
(.81)

.106
(2.69)

9.58
(14.3)

22.5
(73.8)

22-TMIT600-1934
