VGA cable

  • VGA cable

  • hellosignal

  • Categories: VGA Cable
  • Certificates: CE, UL, ROHS
  • Length: By customers' need
  • Packing: PE Bag
  • MOQ: 100PCS
  • Delivery time: Normally 15 working days
  • Port of Loading: NINGBO, SHANGHAI
  • Term of payment: T/T, L/C at sight, D/P at sight
Inquire

VGA cable  ( Video Graphics Array )

Construction
Types Part 1 (3C) Part 2 (4C | 8C) Shield 1 Shield 2 Jacket Color
3+4 Standard 7/0.12TC×1+
30/0.10TC+PVC		 7/0.16TC×4 Aluminum
Mylar		 60% - 70% Braiding 8.2mm Black
White
Orange
Blue
Red
3+8 Standard 7/0.12TC×1+
30/0.10TC+PVC		 7/0.16TC×8 9.0mm
3+4 Facility 7/0.12TC×1+
7/0.12TC+AM+PVC		 7/0.12CCS×4 8.2mm
3+8 Facility 7/0.12TC×1+
7/0.12TC+AM+PVC		 7/0.12CCS×8 9.0mm
3+4 Cheap 7/0.12TC×1+
7/0.12CCS+FAM+PVC		 7/0.12CCS×4 6.0mm

DVI cable Connector Models

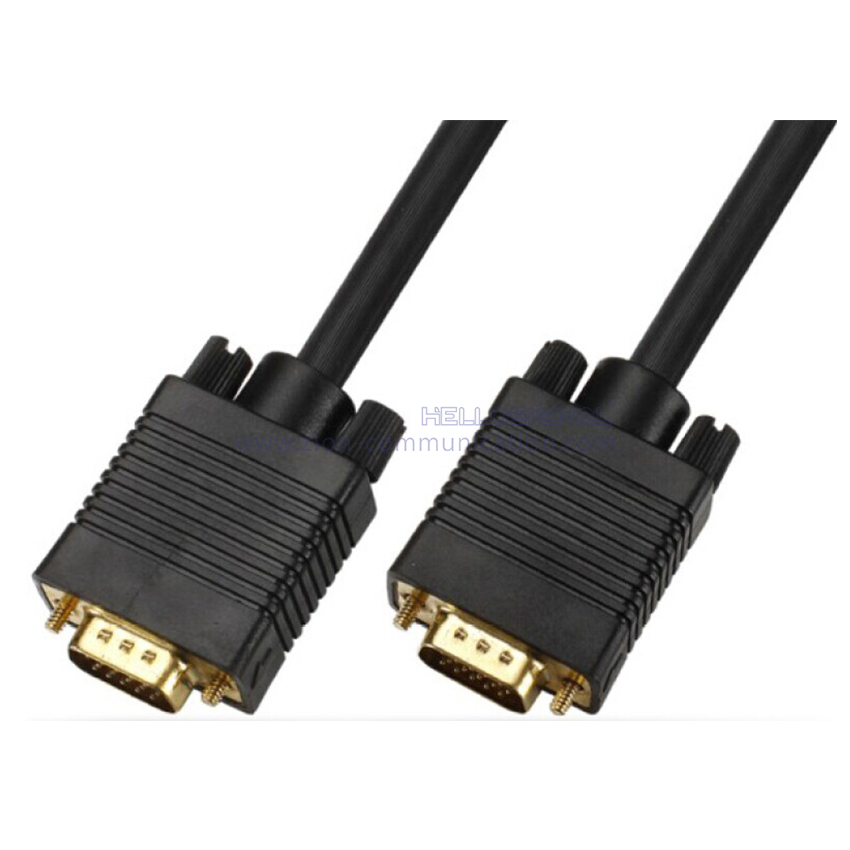

HDB15 Male  to  HDB15 Male
001002003004005006
#1 Insulation Line
1- Insulation Line

#2 Twisting
2 - Twisting

#3 braiding
braiding

#4 Jacket Line
3 Jacket Line

#5 Connector Making
4 Connector Making

5 Connector Making
