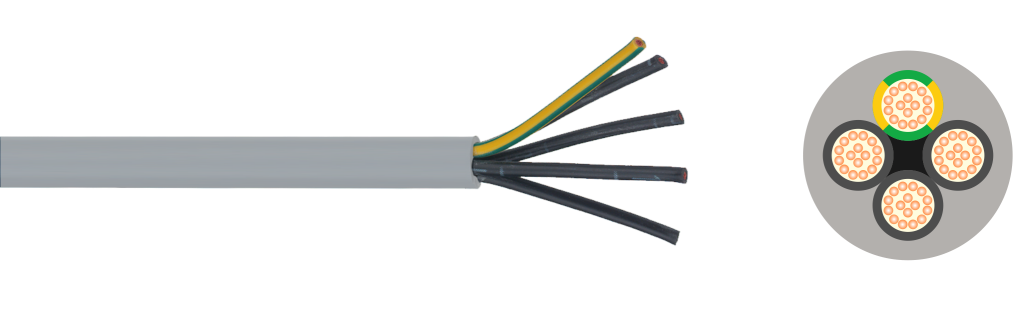

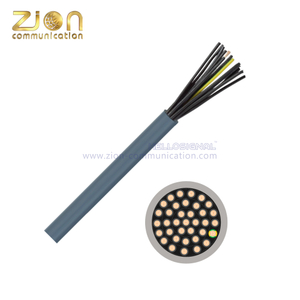

YY PVC Control Cable

YY PVC Control Cable

Application:

Cable Standards:

YY control cable for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load. Suitable in dry, ambient and wet rooms. These indoor cables are not used for external or underground installation.

VDE 0207-363-3, VDE 819-102 (TM54)

Flame Retardant according to IEC/EN 60332-1-2

Product Description:

Conductor

Class 5 flexible plain copper

Insulation

PVC, TI2 acc. to EN 50363-3, VDE 0207-363-3

Sheath material

PVC, TM54 acc. to VDE 819-102(TM54)

Characteristics:

Voltage Rating Uo/U

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 12.5 x overall diameter

Core Identification:

2 Core:

Black with

White numbers

3 Core and above

Black with

White numbers

Numbers plus

Green/Yellow

Also available with coloured cores as follows:

2 Core:

Blue

Brown

3 Core:

Blue

Brown

Green/Yellow

4 Core:

Brown

Black

Grey

Green/Yellow

5 Core:

Blue

Brown

Black

Grey

Green/Yellow

7 Core:

Blue

Brown

Black

Grey

White

Red

Green/Yellow

Should not be installed at temperatures below -5℃

Dimensions:

Zion Code

No. Of
Cores

Conductor Size (mm2)

Stranding (mm)

Weight (kg/km)

Outside Diameter (mm)

Gland Size (mm)

YY0275V

2

0.75

24/0.20

46.0

5.6

20/16

YY0375V

3

0.75

24/0.20

52.0

5.7

20/16

YY0475V

4

0.75

24/0.20

64.0

6.2

20/16

YY0575V

5

0.75

24/0.20

77.0

7.0

20/16

YY0775V

7

0.75

24/0.20

95.0

7.3

20/16

YY1275V

12

0.75

24/0.20

155.0

9.5

20S

YY2575V

25

0.75

24/0.20

305.0

13.2

20.0

YY3475V

34

0.75

24/0.20

460.0

16.7

25.0

YY5075V

50

0.75

24/0.20

578.0

18.4

25.0

YY6575V

65

0.75

24/0.20

850.0

23.5

32.0

YY0210V

2

1.00

32/0.20

55.0

6.0

20/16

YY0310V

3

1.00

32/0.20

66.0

6.1

20/16

YY0410V

4

1.00

32/0.20

82.0

6.7

20/16

YY0510V

5

1.00

32/0.20

93.0

7.5

20/16

YY0710V

7

1.00

32/0.20

121.0

8.1

20S

YY1210V

12

1.00

32/0.20

200.0

11.0

20S

YY1810V

18

1.00

32/0.20

318.0

12.7

20.0

YY2510V

25

1.00

32/0.20

415.0

15.5

25.0

YY3410V

34

1.00

32/0.20

575.0

18.3

25.0

YY4110V

41

1.00

32/0.20

665.0

19.0

25.0

YY5010V

50

1.00

32/0.20

815.0

21.3

32.0

YY6510V

65

1.00

32/0.20

1055.0

25.6

32.0

YY0215V

2

1.50

30/0.25

69.0

6.6

20/16

YY0315V

3

1.50

30/0.25

87.0

7.0

20/16

YY0415V

4

1.50

30/0.25

110.0

7.6

20/16

YY0515V

5

1.50

30/0.25

124.0

8.1

20S

YY0715V

7

1.50

30/0.25

176.0

9.2

20S

YY0815V

8

1.50

30/0.25

230.0

11.2

20.0

YY1015V

10

1.50

30/0.25

265.0

12.4

20.0

YY1215V

12

1.50

30/0.25

290.0

13.1

20.0

YY1815V

18

1.50

30/0.25

424.0

14.8

25.0

YY2515V

25

1.50

30/0.25

565.0

18.0

25.0

YY3415V

34

1.50

30/0.25

775.0

21.0

32.0

YY5015V

50

1.50

30/0.25

1095.0

24.3

32.0

YY6515V

65

1.50

30/0.25

1390.0

28.8

40.0

YY0225V

2

2.50

50/0.25

106.0

7.8

20/16

YY0325V

3

2.50

50/0.25

126.0

8.1

20S

YY0425V

4

2.50

50/0.25

159.0

8.9

20S

YY0525V

5

2.50

50/0.25

178.0

9.7

20S

YY0725V

7

2.50

50/0.25

272.0

11.1

20S

YY0825V

8

2.50

50/0.25

350.0

13.5

20.0

YY1225V

12

2.50

50/0.25

403.0

13.8

20.0

YY1825V

18

2.50

50/0.25

597.0

17.5

25.0

YY2525V

25

2.50

50/0.25

885.0

22.0

32.0

YY3425V

34

2.50

50/0.25

1220.0

25.8

32.0

Note: YY: Means Type; 0275 Means 2 Core, 0.75mm²; V= PVC

Current Carrying Capacity:

Nominal Cross Sectional Area (mm²)

Current Carry Capacity
At 30℃ In Air Amps

Current Carry Capacity At 30℃
In Conduit (amps)

0.75

13.00

9.0

1

14.50

11.5

1.5

18.50

15.0

2.5

25.00

20.0

4

34.00

27.0

6

43.00

34.0

10

60.00

46.0

16

80.00

62.0

Voltage Drop:

Nominal Cross Sectional Area (mm²)

Two Core Cable Dc
Mv/a/m

Single Phase Two Core Cable Ac
Mv/a/m

Three Phase 3 Or 4 Core Cable Ac
Mv/a/m

1

44

44

38.0

1.5

29

29

25.0

2.5

18

18

15.0

4

11

11

9.5

6

7.3

7.3

6.4

10

4.4

4.4

3.8

16

2.8

2.8

2.4
