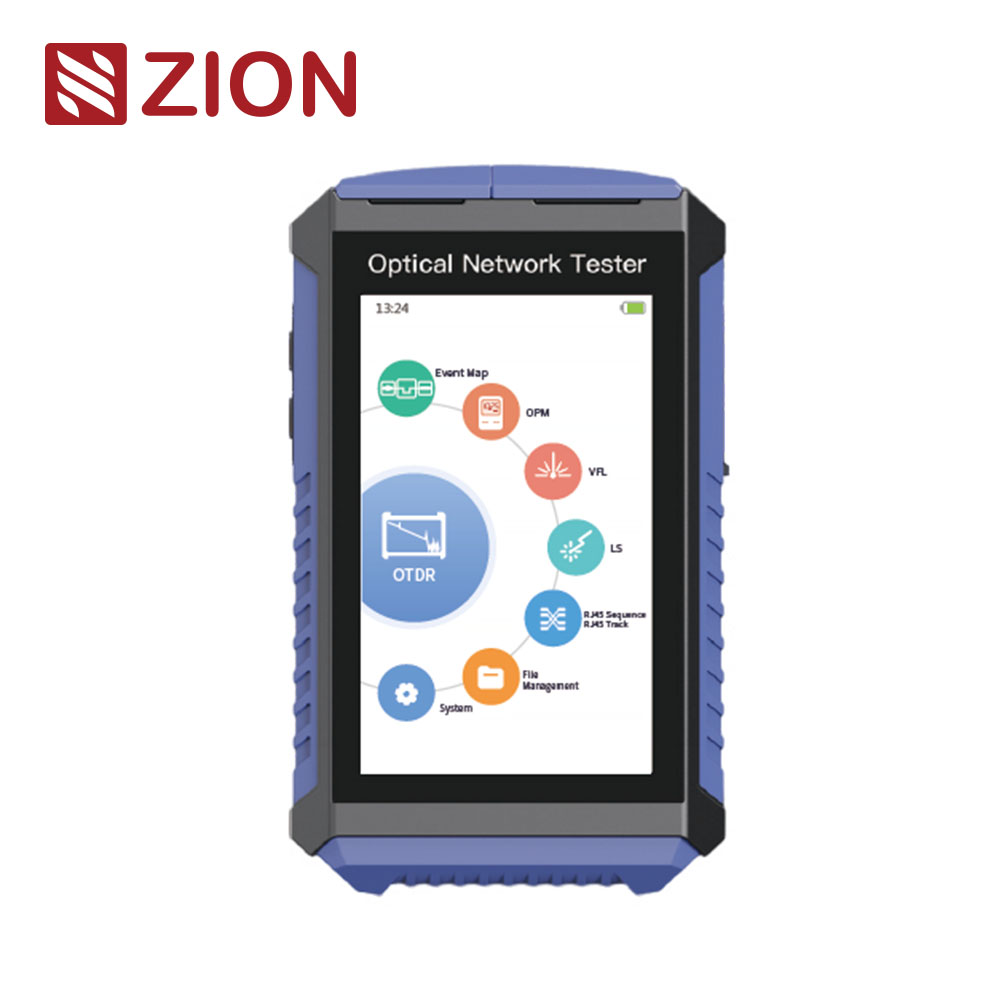

ZCOTDR-4200 Mini OTDR: Live Test, Event Map & XGPON OPM for Fast Fiber Troubleshooting | ZION

Model:
Optical Time Domain Reflectometer
Brand:
hellosignal
Categories:
Optical Time Domain Reflectometer
Delivery time:
Normally 15 working days
Port of Loading:
NINGBO, SHANGHAI

Availability:



Inquire

Product Description

ZION COMMUNICATION · Fiber Tool Academy

ZCOTDR-4200 Mini OTDR (Optical Time Domain Reflectometer)

4.3" HD Touchscreen · Live Test · Event Map · XGPON OPM · VFL / Light Source · RJ45 Sequence & Tracking

A compact, multi-function OTDR designed for FTTH/FTTx deployment, OSP maintenance, and emergency restoration—helping engineers locate faults fast, document results, and control total test cost per job.

FTTH / FTTxISP / OSP MaintenancePON / XGPONTelecom ContractorsField Troubleshooting
Procurement / Project Leads

Request Datasheet / Sample More OTDR

Contents

Executive Summary
Why This Mini OTDR Matters in the Field
Integrated Functions & What They Replace
OTDR Performance & Model Options
Key Technical Specifications
Recommended Applications
Decision Rules / Engineer’s Shortcut
Standard Kit & Field Accessories
Conclusion

Quick takeaway

For field crews, the real KPI is fault location speed + repeatable documentation, not only “pretty traces.”
With Event Map + Live Test + XGPON OPM, ZCOTDR-4200 helps reduce truck rolls and avoids “blind” troubleshooting during active signals.
If you regularly work on PON / XGPON access networks, integrated OPM/VFL/LS can reduce tool count and lower total ownership cost.

■Executive Summary

The ZCOTDR-4200 Mini OTDR is a compact, easy-to-carry OTDR built for real-world fiber maintenance: it supports a 4.3-inch HD multi-touch screen, integrates multiple test functions (OTDR, Event Map, split-wave OPM, VFL, Light Source, flashlight, and RJ45 sequence/tracking), and delivers practical performance for link qualification and fast fault location. With event blind zone ≤1.5 m and up to 100 km test range (depending on configuration), it fits FTTH/FTTx, OSP line maintenance, and emergency repair workflows.

Procurement focus: To evaluate ROI, compare dynamic range, blind zones, live-test capability, data export, and integrated functions—these determine retest risk, crew efficiency, and tool count.

■Why This Mini OTDR Matters in the Field

Field reality: The most expensive OTDR test is the one you must repeat. Retests usually come from blind-zone misses near connectors, insufficient dynamic range on long spans, unclear event interpretation, or incomplete documentation.

ZCOTDR-4200 is engineered to reduce rework and speed up decision-making onsite. The Event Map helps technicians interpret events quickly, while Live Test supports safer testing on active links (within defined power limits), which is a common requirement in access networks and maintenance windows.

■Integrated Functions & What They Replace

Function	What it does onsite	Why it matters for cost/risk
OTDR + Event Map	Locates breaks, bends, high-loss joints; visual event interpretation	Reduces troubleshooting time and training cost; avoids misreading traces
Split-wave OPM / XGPON OPM	Measures power on PON wavelengths; supports simultaneous measurement on XGPON channels	Avoids dispatching separate OPM; supports acceptance tests and live maintenance windows
VFL (red light)	Quick continuity check, near-end fault identification	Speeds first diagnosis and reduces “no fault found” revisits
Light Source (LS)	Stable optical output for end-to-end loss test with OPM	Improves acceptance testing; supports documentation and QA closure
RJ45 sequence & tracking	Cable order verification and tracking (≤300 m)	Adds value for mixed-site troubleshooting; reduces extra copper tools on hand

Key takeaway: Integrated OPM/VFL/LS lowers tool count, shortens setup time, and improves QA completeness—especially in PON-heavy field work where power validation is part of the closeout checklist.

■OTDR Performance & Model Options

ZCOTDR-4200 offers multiple wavelength configurations for G.652 single-mode applications. Selection should be based on your access/backbone wavelength plan, live-test needs, and long-span performance targets.

Model	Wavelength	Dynamic Range	Positioning
ZCOTDR-4200F1	1550 nm ±20 nm	24 dB	Field maintenance, long-wavelength troubleshooting
ZCOTDR-4200D	1310 / 1550 nm	26 dB	Dual-wavelength verification for deployment & acceptance
ZCOTDR-4200F2	1625 nm ±20 nm	24 dB	Maintenance window testing, out-of-band scenarios
ZCOTDR-4200F3	1650 nm ±20 nm	24 dB	Live-test-friendly troubleshooting (within defined limits)

Practical rule: If your team needs both deployment acceptance and maintenance, a dual-wavelength model helps reduce ambiguity across different link types and improves documentation quality.

■Key Technical Specifications

Parameter	Specification	Decision impact
Event blind zone	≤ 1.5 m	Critical for short-drop and near-end connector visibility
ATT blind zone	8 m	Impacts near-end loss measurement reliability
Max measurement range	Up to 100 km (by range setting)	Supports long-span troubleshooting and documentation
Max dynamic range	≥ 26 dB (model-dependent)	Defines long-link capability and event visibility under attenuation
Pulse width	5 ns to 20 μs (multiple steps)	Balances resolution vs range for different link types
Max sample points	≥ 20,000	Improves trace detail and reporting
Max sample resolution	≤ 0.03 m	Supports fine-grain event analysis in access networks
File format	SOR standard	Enables cross-platform trace sharing and project archives
Connector	SC/PC (OTDR/OPM); universal FC/SC/ST on other interfaces (as configured)	Defines field compatibility and adapter planning

Module	Key specs	Typical use
OPM	800–1700 nm; calibration waves include 850/1300/1310/1490/1550/1625/1650 nm; -50 to +26 dBm (standard)	Power validation, acceptance, troubleshooting
XGPON OPM	Supports 1490/1577 nm simultaneous measurement; -40 to +26 dBm	XGPON commissioning and maintenance
VFL	650 nm ±20 nm; output ≥10 mW; CW/1 Hz/2 Hz	Near-end continuity and quick fault ID
RJ45 tracking	≤ 300 m; digital tracking; online tracking support	Mixed-site copper troubleshooting & cable identification

Deployment note: Live-test capability depends on wavelength and power limits. Align model selection with your network signals and maintenance procedures to reduce operational risk.

■Recommended Applications

Scenario	Typical tasks	Recommended features to use
FTTH / FTTx rollout	Drop verification, connector loss checks, commissioning reports	Short blind zone, Event Map, SOR reporting, OPM/LS
PON / XGPON maintenance	Power validation, troubleshooting on active networks	Live Test, XGPON OPM, OTDR event analysis
OSP line maintenance	Break location, bend/loss point detection, restoration verification	Dynamic range selection, pulse width optimization, long-range presets
Mixed-site troubleshooting	Fiber + copper identification on job sites	RJ45 tracking/sequence + OTDR/VFL to reduce extra tool carry

■Decision Rules / Engineer’s Shortcut

Engineer’s shortcut: Choose the OTDR by network signal reality (PON wavelengths, live test), span length (dynamic range), and near-end visibility (blind zones). Everything else is secondary.

Your job condition	Decision threshold	Recommended approach	Risk if under-specified
Active PON / XGPON link testing	Need power verification + safe live workflows	Prioritize Live Test + XGPON OPM + Event Map	Downtime risk, retests, incomplete acceptance data
FTTH drops / dense connectors	Need short-distance event visibility	Look for event blind zone ≤1.5 m and fine sample resolution	Missed near-end faults; “no fault found” truck rolls
Long spans / OSP troubleshooting	Dynamic range is the limiter	Choose higher dynamic range and optimize pulse widths	Events hidden in noise floor; uncertain repair location
QA documentation & multi-team handover	Need standard trace file and easy sharing	Use SOR format + sufficient sample points; plan export workflow (Type-C/records)	Disputes on acceptance; rework and delayed project closeout

■Standard Kit & Field Accessories

A complete kit reduces setup time, prevents job interruption, and helps standardize documentation across crews and subcontractors.

Item	Included / Notes	Why it matters
Host (battery included)	ZCOTDR-4200 main unit	Primary test platform for OTDR + multi-functions
Adapter + data line	AC/DC adapter; Type-C USB interface supported	Ensures stable power and fast data handling
Cable tracker	RJ45 tracking accessory	Reduces time identifying copper runs on site
Software & manuals	Analysis software / user manual (as supplied)	Supports reporting, onboarding, and standardized process
Certificates & cleaning items	Qualification / service card, calibration certificate, clean cotton slices, instrument backpack	QA readiness and long-term maintenance reliability

■Conclusion

The ZCOTDR-4200 Mini OTDR is designed for field outcomes: fast fault location, clear event interpretation, and lower total test cost through integrated functions. For engineers and project owners, the best selection approach is simple: match wavelength/live-test reality to your network, ensure sufficient dynamic range for your longest spans, and verify blind-zone performance for access drops and connector-dense work. Then standardize reporting (SOR) and closeout procedures to reduce retests and accelerate acceptance.

Need the right OTDR configuration for your network?

Send your link type (FTTH / OSP / PON / XGPON), target wavelength(s), longest span, typical connector density, and whether you need live-test workflows. ZION will recommend the best ZCOTDR-4200 model and a practical test-and-documentation setup for your project.

Request Datasheet / Quote Back to Top
