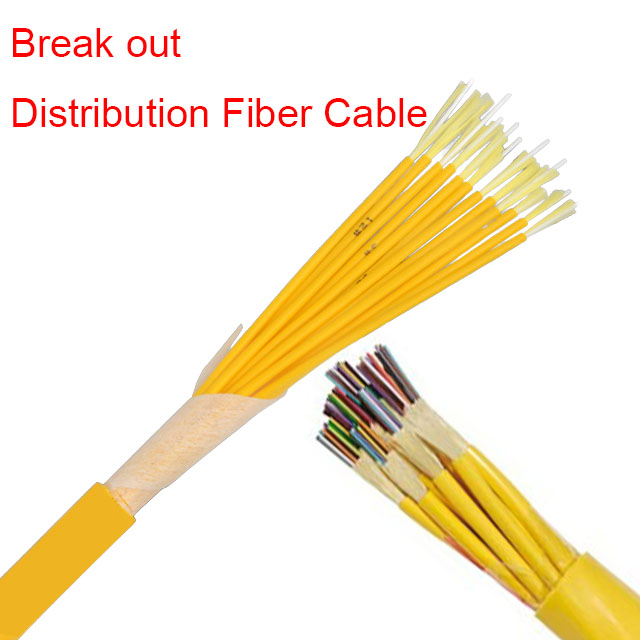

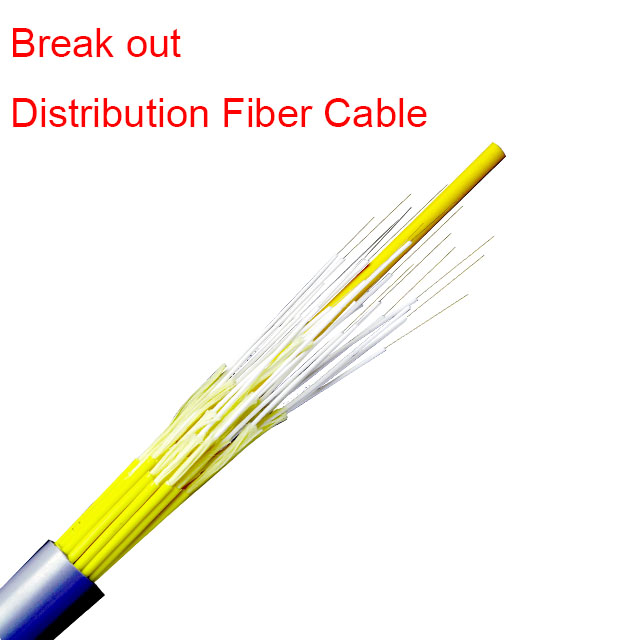

Break out Distribution Cable
N/M
N/M
Indoor Fiber Optic Cables
simplex cable subunit
ISO9001
1km/Spool
Wooden Spool ，Φ380*380mm
100km
5-25 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.
Characteristic: Break out Distribution Cable
Cable Type: simplex cable as subunit
Fiber Type: G.657.A1 / G.652.D
Jacket Material: PVC/LSZH
Total Fiber Count: 2-12F
Subunit Type: simplex cable as subunit
Environmental Space: For indoor cables
Armor: No
Technical data:
Numbers of fibers: 2-12F
Fiber type: Single mode G.657.A1/OM1/OM2/OM3
Strength Member: Aramid Yard+FRP Strength Member
Loose Tube: No
Filler Rope: No
Water Blocking Layer（Material）: No
Additional Strength Member（Material）：No
Outer Sheath: Low smoke zero halogen (LSZH)
Cable Diameter(±0.2mm): 7.0mm-12mm
Cable Weight(±10.0kg/km): 38-170kg
Attenuation coefficient : @ 1310nm≤0.35dB ; @ 1550nm ≤0.2dB
Min. bending radius Without Tension: 10.0×Cable-φ
Min. bending radius Under Maximum Tension: 20.0×Cable-φ
Description:

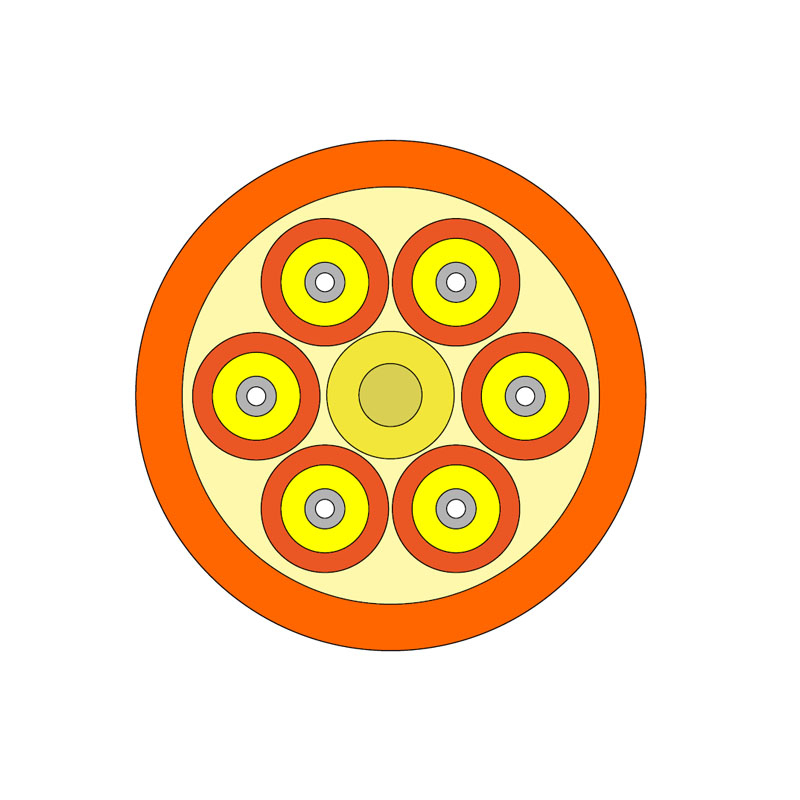

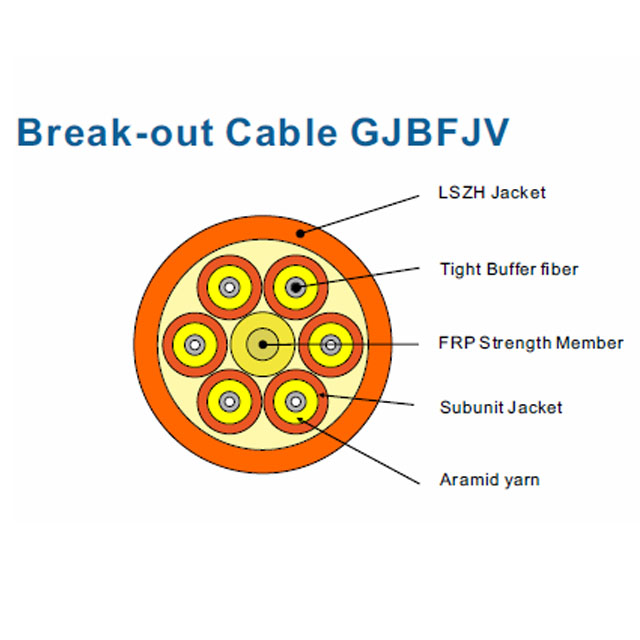

break-out cable use simplex cable(Φ900μm tight buffer fiber, aramid yarn as strength member) as subunit.
A fiber reinforced plastic(FRP) locates in the center of core as
a non-metallice strength member. The subunits are stranded around the cable core. The cable completed with a PVC or LSZH(Low smoke, zero halogen, flame-retardant)jacket.
Application:
▶ Indoor cable distribution for any purpose.
Fibre Colors
No. | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
No. | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
Jacket Colors
No. | 1 | 2 | 3 | 4 | 5 | 6 |
Color | White | |||||
No. | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Black |
Single mode optical fiber (ITU-T Rec. G.652.D)
Item | Specification |
Fiber type | Single mode |
Fiber material | Doped silica |
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
£ 0.35 dB/km £ 0.32 dB/km £ 0.21 dB/km £ 0.24 dB/km |
Point discontinuity | £ 0.05 dB |
Cable cut-off wavelength | £ 1260 nm |
Zero-dispersion wavelength | 1300 ~ 1324 nm |
Zero-dispersion slope | £ 0.092 ps/(nm2.km) |
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm | £3.5 ps/(nm. km) £5.3 ps/(nm. km) £18 ps/(nm. km) £22 ps/(nm. km) |
PMDQ (Quadrature average*) | £0.2 ps/km1/2 |
Mode field diameter @ 1310 nm | 9.2±0.4 um |
Core / Clad concentricity error | £ 0.5 um |
Cladding diameter | 125.0 ± 0.7 um |
Cladding non-circularity | £1.0% |
Primary coating diameter | 245 ± 10 um |
Proof test level | 100 kpsi (=0.69 Gpa), 1% |
Temperature dependence 0oC~ +70oC @ 1310 & 1550nm | £ 0.1 dB/km |
Characteristic: Break out Distribution Cable
Cable Type: simplex cable as subunit
Fiber Type: G.657.A1 / G.652.D
Jacket Material: PVC/LSZH
Total Fiber Count: 2-12F
Subunit Type: simplex cable as subunit
Environmental Space: For indoor cables
Armor: No
Technical data:
Numbers of fibers: 2-12F
Fiber type: Single mode G.657.A1/OM1/OM2/OM3
Strength Member: Aramid Yard+FRP Strength Member
Loose Tube: No
Filler Rope: No
Water Blocking Layer（Material）: No
Additional Strength Member（Material）：No
Outer Sheath: Low smoke zero halogen (LSZH)
Cable Diameter(±0.2mm): 7.0mm-12mm
Cable Weight(±10.0kg/km): 38-170kg
Attenuation coefficient : @ 1310nm≤0.35dB ; @ 1550nm ≤0.2dB
Min. bending radius Without Tension: 10.0×Cable-φ
Min. bending radius Under Maximum Tension: 20.0×Cable-φ
Description:
break-out cable use simplex cable(Φ900μm tight buffer fiber, aramid yarn as strength member) as subunit.
A fiber reinforced plastic(FRP) locates in the center of core as
a non-metallice strength member. The subunits are stranded around the cable core. The cable completed with a PVC or LSZH(Low smoke, zero halogen, flame-retardant)jacket.
Application:
▶ Indoor cable distribution for any purpose.
Fibre Colors
No. | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
No. | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
Jacket Colors
No. | 1 | 2 | 3 | 4 | 5 | 6 |
Color | White | |||||
No. | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Black |
Single mode optical fiber (ITU-T Rec. G.652.D)
Item | Specification |
Fiber type | Single mode |
Fiber material | Doped silica |
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
£ 0.35 dB/km £ 0.32 dB/km £ 0.21 dB/km £ 0.24 dB/km |
Point discontinuity | £ 0.05 dB |
Cable cut-off wavelength | £ 1260 nm |
Zero-dispersion wavelength | 1300 ~ 1324 nm |
Zero-dispersion slope | £ 0.092 ps/(nm2.km) |
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm | £3.5 ps/(nm. km) £5.3 ps/(nm. km) £18 ps/(nm. km) £22 ps/(nm. km) |
PMDQ (Quadrature average*) | £0.2 ps/km1/2 |
Mode field diameter @ 1310 nm | 9.2±0.4 um |
Core / Clad concentricity error | £ 0.5 um |
Cladding diameter | 125.0 ± 0.7 um |
Cladding non-circularity | £1.0% |
Primary coating diameter | 245 ± 10 um |
Proof test level | 100 kpsi (=0.69 Gpa), 1% |
Temperature dependence 0oC~ +70oC @ 1310 & 1550nm | £ 0.1 dB/km |
