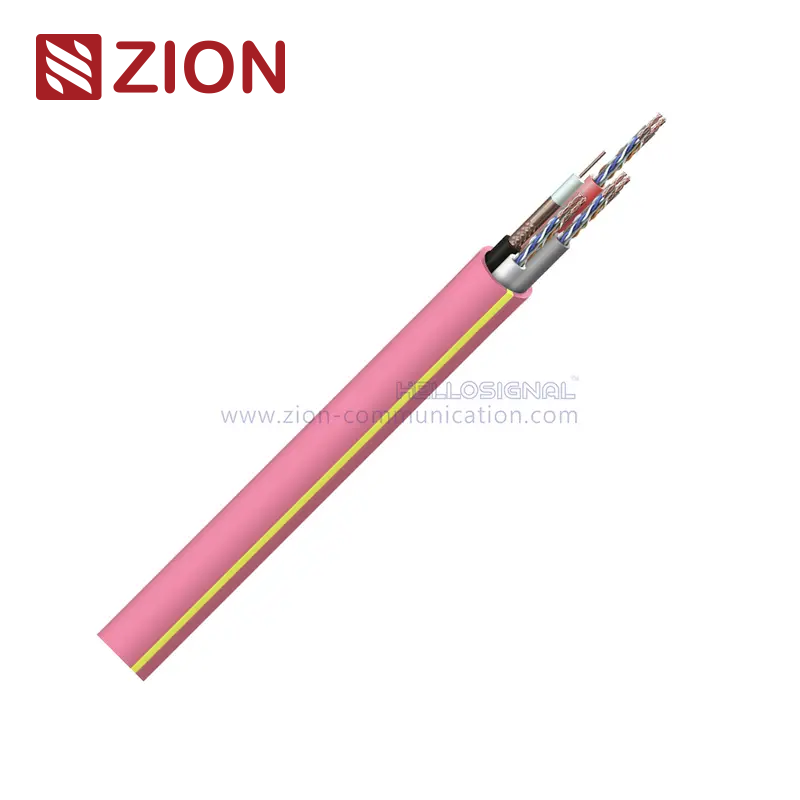

3× CAT 6 + RG6(TV100) Coax PVC MCC15 Media Composite Cable

3× CAT 6 + RG6(TV100)

Coax PVC composite cable

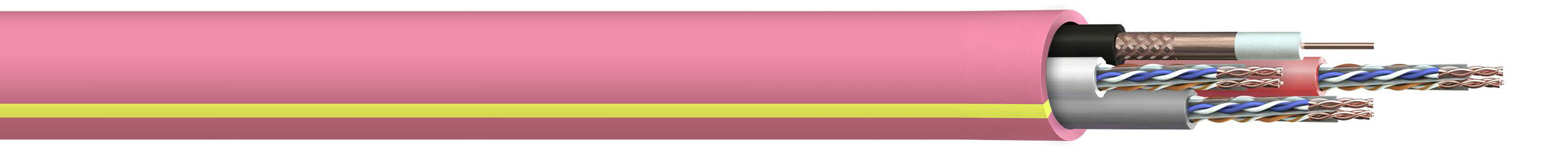

MCC15 Media Composite Cable

Construction：

3 x Cat 6 UTP

Conductor Material & Size

Bare Copper, 23(1)AWG

Insulation Material

HDPE

Number of Pairs

4

Pair Identification

White/Blue, Blue/White

White/Orange, Orange/White

White/Green, Green/White

White/Brown, Brown/White

Sheath Material

PVC

Sheath Colour

1 x Grey, 1 x Violet, 1 xWhite

1 x TV 100

Conductor Material

Bare Copper

Conductor Size

1.02mm

Insulation Material

FPE

Overall Screen 1

Bare Copper Foil

Overall Screen 2

Bare Copper Wire Braid, (≥ 55% Coverage)

Sheath Material

PVC

Sheath Colour

1 x Black

Overall Construction：

Sheath Material

Polyvinyl Chloride (PVC)

Sheath Colour

Pink + Black Stripe

Electrical Characteristics:

Cat 6 UTP

Nominal Impedance

100 ± 15 Ω (1-250MHz)

Max. Conductor Resistance@ 20°c

≤ 9.50 Ω/100m

Max. Conductor Resistance Unbalanced

≤ 5.0 %

Mutual Capacitance

≤ 5.6 nF/100m

Capacitance Unbalanced to Earth

≤ 330 pF/ 100m

Max. Delay Skew

≤ 45 ns/ 100m

Voltage Rating

30 V

Test Voltage

2.5kV (AC)

TV 100

Nominal Impedance

75 ± 3 Ω

Max. Conductor Resistance@ 20°c

≤ 23.5 Ω/km

Outer Conductor Resistance@ 20°c

≤ 15 Ω/km

Capacitance

53 ± 3 pF/m

NVP

83 %

TV 100 Electrical Performance

Attenuation

Return Loss

Frequency
(MHz)

Attenuation
(dB/100m)

Frequency
(MHz)

Attenuation
(dB/100m)

Frequency
(MHz)

dB

5

1.6

860

19.5

30 – 470

≥ 23

50

4.6

1000

21.5

470 – 862

≥ 20

100

6.5

1750

29.0

862 - 2150

≥ 18

200

9.5

2150

32.5

460

15.0

Cat 6 UTP Transmission Performance

Frequency

1

4

10

16

20

31.25

62.5

100

200

250

300

400

500

MHz

Attenuation

2.03

3.78

5.95

7.6

8.47

10.67

15.38

19.8

28.98

32.85

34.0

41.1

47.1

dB

Return Loss

20.0

23.0

25.0

25.0

25.0

23.6

21.5

20.1

18.0

17.3

9.2

8.0

7.0

dB

NEXT

74.3

65.3

59.3

56.2

54.8

51.9

47.7

44.3

39.8

38.3

34.0

31.9

30.4

dB

PS NEXT

72.3

63.3

57.3

54.2

52.8

49.9

45.4

42.3

37.8

36.3

31.4

29.3

27.6

dB

ELFEXT

67.8

55.8

49.7

47.8

41.8

37.9

31.9

27.8

21.8

19.8

14.6

12.1

10.2

dB

PSELFEXT

64.8

52.8

44.8

40.7

38.8

34.9

28.9

24.8

18.8

16.8

11.6

9.1

7.2

dB

Physical Characteristics:

Overall Diameter

17.5 ± 1.0mm

Bend Radius

15 x OD

Temperature Rating

-10°C to 70°C

Weight

226 kg/km

Standards:

Cat 6 UTP PVC

Manufactured in Accordance to

TIA/EIA 568-C.2, ISO/IEC 11801

Approval

HDBaseT

Overall Construction:

Flame Retardant

BS EN 60332-1-2

RoHS3 Compliant

Yes

CE Compliant

LVD (2014/35/EU), CPR (305/2011)

CPR Classification

Eca (EN50575:2014+A1:2016)
