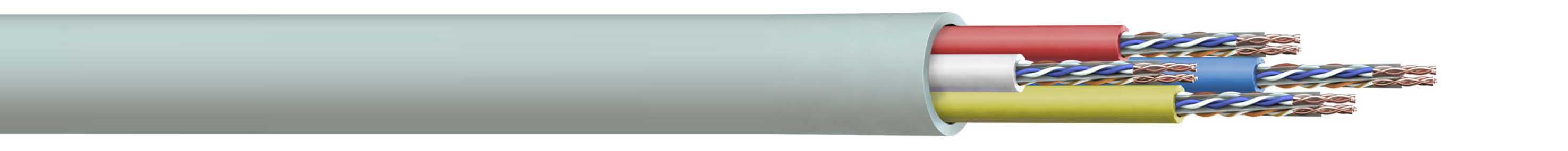

CAT 6 U/UTP 4×4Pairs PVC cable MC6P4 Media Composite Cable

CAT 6 U/UTP 4×4Pairs PVC composite media cable

MC6P4 Media Composite Cable

Construction：

4 x Cat 6 U/UTP PVC

Conductor

Bare Copper

AWG

23(1)

Insulation Material

High Density Polyethylene (HDPE)

Number of Pairs

4

Pair Identification

Blue, Blue/White; Orange, Orange/White

Green, Green/White; Brown, Brown/White

Outer Sheath Material

Polyvinyl Chloride (PVC)

Outer Sheath Colour

1 x Blue, 1 x Red, 1 x Yellow, 1 xWhite

Overall Construction：

Outer Sheath Material

Polyvinyl Chloride (PVC)

Outer Sheath Colour

Grey

Electrical Characteristics:

Cat 6 U/UTP

Max. Conductor Resistance@ 20°c

≤ 9.50 Ω/100m

Max. Resistance Unbalanced

≤ 2.5 %

Nominal Impedance (1-100MHz)

100 ± 15 Ω

Mutual Capacitance

≤ 5.6 nF/100m

Capacitance Unbalanced to Earth

≤ 330 pF/ 100m

NVP

68.5 %

Max. Delay Skew

≤ 45 ns/ 100m

Voltage Rating EN 50525-1

450/750V*

Test Voltage

2.5kV (AC)

*Suitable for installation where Band II 450/750v cables are present. Not suitable for connection to mains supply

Physical Characteristics:

Overall Diameter

17.0 ± 0.5mm

Bend Radius

Fixed 4 x OD                              Flexing 8 x OD

Temperature Rating

Fixed -20°C to 60°C                   Flexing -10°C to 60°C

Weight

190 kg/km

Transmission Performance

Frequency

1

4

10

16

20

31.25

62.5

100

200

250

MHz

Attenuation

1.9

3.5

5.5

7.0

7.9

10.0

14.4

18.6

27.4

31.1

≤ dB

Return Loss

19.1

21.0

21.0

20.0

19.5

18.5

16.0

14.0

11.0

10.0

≥ dB

NEXT

65.0

64.1

57.8

54.6

53.1

50.0

45.1

41.8

36.0

35.3

≥ dB

PS NEXT

62.0

61.8

55.5

52.2

50.7

47.5

42.7

39.3

34.3

32.7

≥ dB

ACRF

64.2

52.1

44.2

40.1

38.2

34.3

28.3

24.2

18.2

16.2

≥ dB

PSACRF

61.2

49.1

41.2

37.1

35.2

31.3

25.3

21.2

15.2

13.2

≥ dB

Standards:

Flame Retardant

BS EN 60332-1-2

RoHS3 Compliant

Yes

CE Compliant

LVD (2014/35/EU), CPR (305/2011)

Manufactured in accordance to

TIA/EIA 568-C.2, ISO/IEC 11801

CPR Classification

Eca (EN50575:2014+A1:2016)
